Product description
10

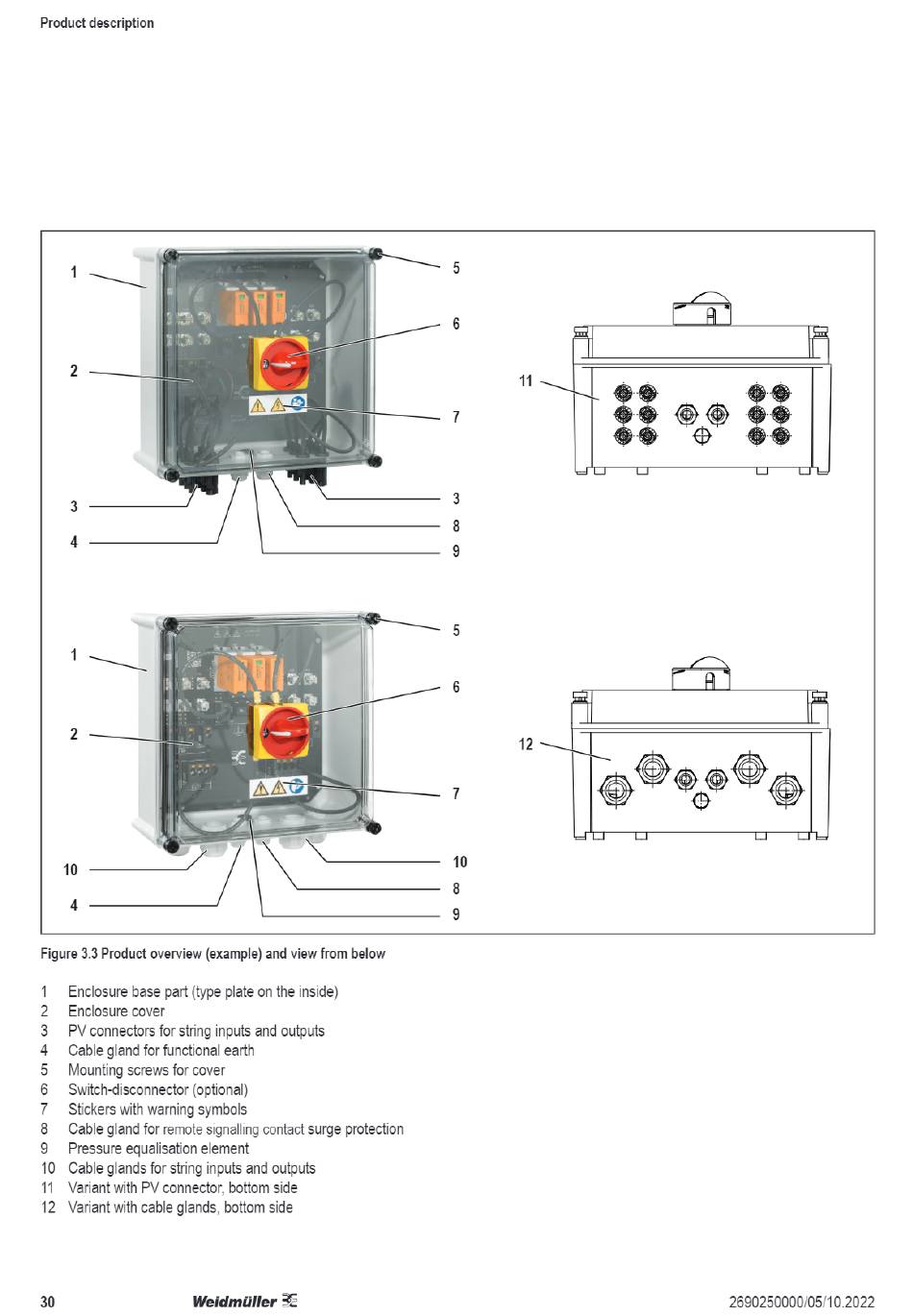

Figure 3.3Product overview (example)and view from below
Enclosurebase part (typeplate on the inside)
1
2 Enclosure cover
3 PV connectorsfor string inputsand outputs
4 Cable glandfor functionalearth
5 Mountingscrewsfor cover
Switch-disconnector ( optional)
6
7 Stickerswith warningsymbols
8 Cable glandfor remotesignalling contactsurgeprotection
9 Pressureequalisationelement
10 Cable glandsfor string inputsand outputs
Variant with PV connector, bottom side
11
12 Variantwith cableglands, bottomside
