Datenblatt Gem 181 (05150980) - Oculus Easygraph Gebrauchsanweisung

17 Anhänge
17.4

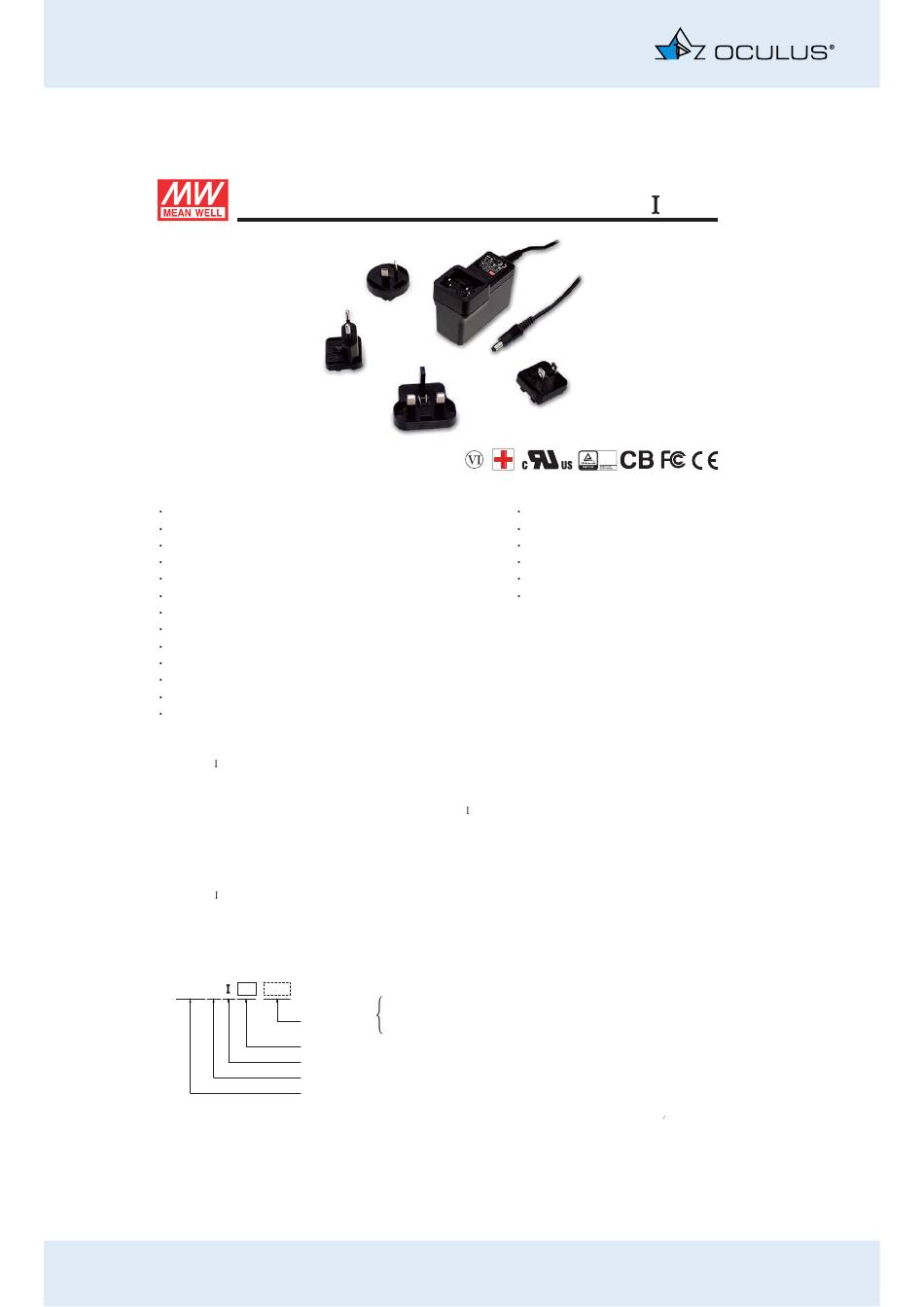

Datenblatt GEM 181 (05150980)

18W AC-DC High Reliability Interchangeable Medical Adaptor
■ Features
Interchangeable AC plugs (plug kit sold sperately)
Medical safety approved (2
Suitable for BF application with appropriate system consideration
Low leakage current <100 A
No load power consumption< 0.075W
Energy efficiency Level
Comply with EISA 2007/DoE and EU ErP
Class Ⅱ power (without earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Optional lock type DC plug
100% full load burn-in test
3 years warranty
■ Description
GEM18 is a highly reliable, 18W wall-mounted style single-output green medical adaptor series, which
is compact and convenient for carry. This product is equipped with an interchangeable AC plug (4 types,
including European type, USA type, U.K. type and Australian type) that makes it very suitable for businessmen
to use in the major countries around the globe. GEM18 is a class II power unit (without FG), accepting
the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical
devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low
leakage current (<100 A), fitting the medical devices in direct electrical contact with the patients.
With the working efficiency up to 87% and the extremely low no-load power consumption below 0.075W,
GEM18 is compliant with the latest USA energy regulation EISA 2007/DoE(Level
supreme feature allows the adaptor to save the energy when it is under either the operating mode or the
standby mode. The entire series is approved for international safety regulations; moreover, it adopts the
94V-0 flame retardant plastic case that it can effectively prevent users from electric hazard.
■ Model Encoding
GEM 18 05 -
58 / 62
× MOPP between primary to secondary)
μ
Ⅵ
μ
P1J
P1J: Plug for standard model, 2.1
C+ tuning fork type
DC plug type
Optional plug type available per request
Output voltage
Interchangeable AC plug
Output wattage
Series name
Gebrauchsanweisung Easygraph (G/70620/XXXX/DE - Rev02)
G E M 1 8
s e r i e s
EN 60601-1
IEC 60601-1
8
■ Applications
Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device
Sleep apnea devices
Ⅵ ) and EU ErP. The
ψ× 5 5 . ψ× 11mm,
File Name:GEM18 -SPEC 2015-05-05
