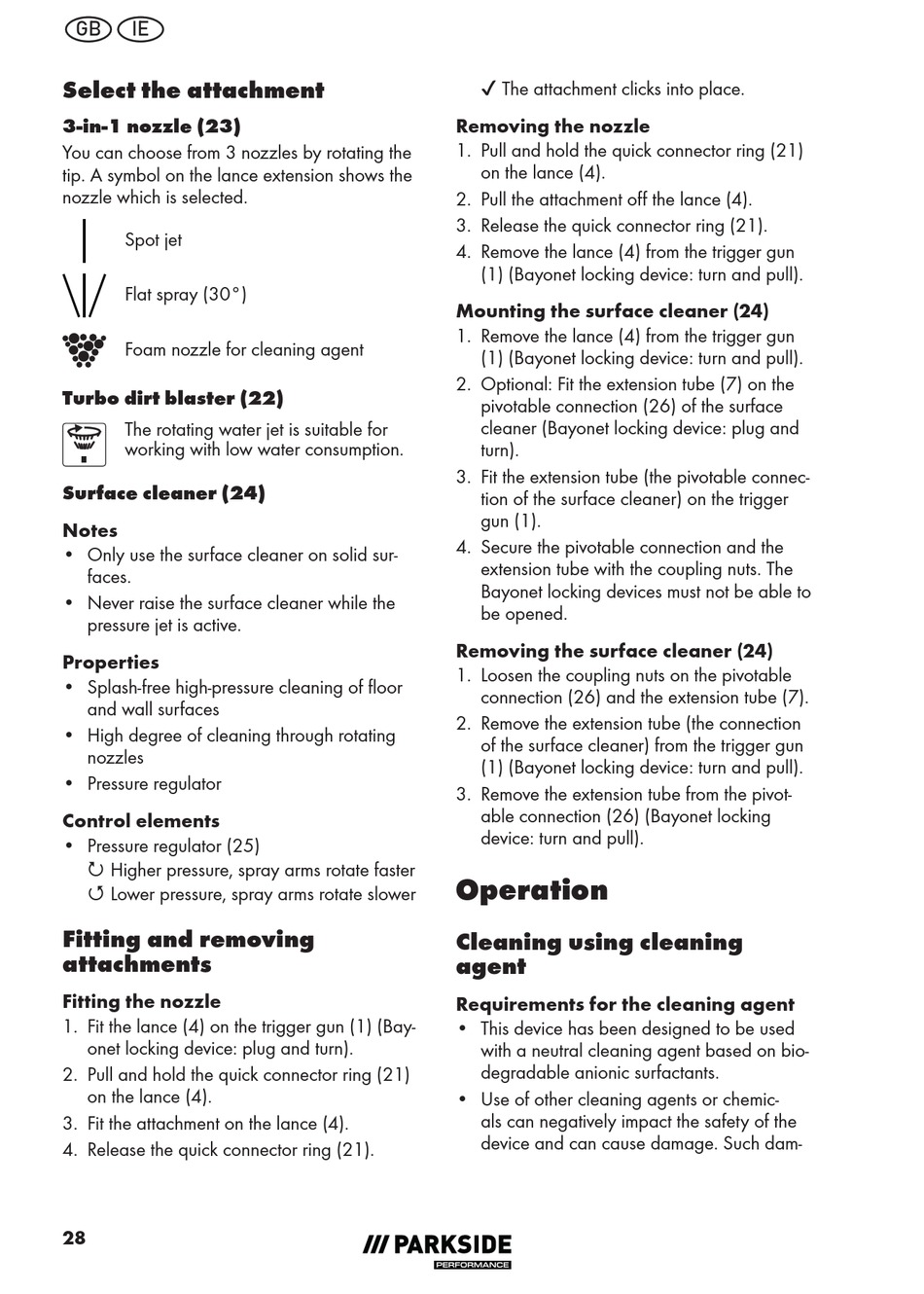

Parkside Performance PHDP 180 B2 Originalbetriebsanleitung Seite 28

GB IE
Select the attachment
3-in-1 nozzle (23)
You can choose from 3 nozzles by rotating the
tip. A symbol on the lance extension shows the
nozzle which is selected.
Spot jet
Flat spray (30°)
Foam nozzle for cleaning agent
Turbo dirt blaster (22)
The rotating water jet is suitable for
working with low water consumption.
Surface cleaner (24)
Notes
• Only use the surface cleaner on solid sur-
faces.
• Never raise the surface cleaner while the
pressure jet is active.
Properties
• Splash-free high-pressure cleaning of floor
and wall surfaces
• High degree of cleaning through rotating
nozzles
• Pressure regulator
Control elements
• Pressure regulator (25)
⭮ Higher pressure, spray arms rotate faster
⭯ Lower pressure, spray arms rotate slower
Fitting and removing
attachments
Fitting the nozzle
1. Fit the lance (4) on the trigger gun (1) (Bay-
onet locking device: plug and turn).
2. Pull and hold the quick connector ring (21)
on the lance (4).
3. Fit the attachment on the lance (4).
4. Release the quick connector ring (21).
28
✔ The attachment clicks into place.
Removing the nozzle
1. Pull and hold the quick connector ring (21)
on the lance (4).
2. Pull the attachment off the lance (4).
3. Release the quick connector ring (21).
4. Remove the lance (4) from the trigger gun
(1) (Bayonet locking device: turn and pull).
Mounting the surface cleaner (24)
1. Remove the lance (4) from the trigger gun
(1) (Bayonet locking device: turn and pull).
2. Optional: Fit the extension tube (7) on the
pivotable connection (26) of the surface
cleaner (Bayonet locking device: plug and
turn).
3. Fit the extension tube (the pivotable connec-
tion of the surface cleaner) on the trigger
gun (1).
4. Secure the pivotable connection and the
extension tube with the coupling nuts. The
Bayonet locking devices must not be able to
be opened.
Removing the surface cleaner (24)
1. Loosen the coupling nuts on the pivotable
connection (26) and the extension tube (7).
2. Remove the extension tube (the connection
of the surface cleaner) from the trigger gun
(1) (Bayonet locking device: turn and pull).
3. Remove the extension tube from the pivot-
able connection (26) (Bayonet locking
device: turn and pull).
Operation
Cleaning using cleaning
agent
Requirements for the cleaning agent
• This device has been designed to be used
with a neutral cleaning agent based on bio-
degradable anionic surfactants.
• Use of other cleaning agents or chemic-
als can negatively impact the safety of the
device and can cause damage. Such dam-
