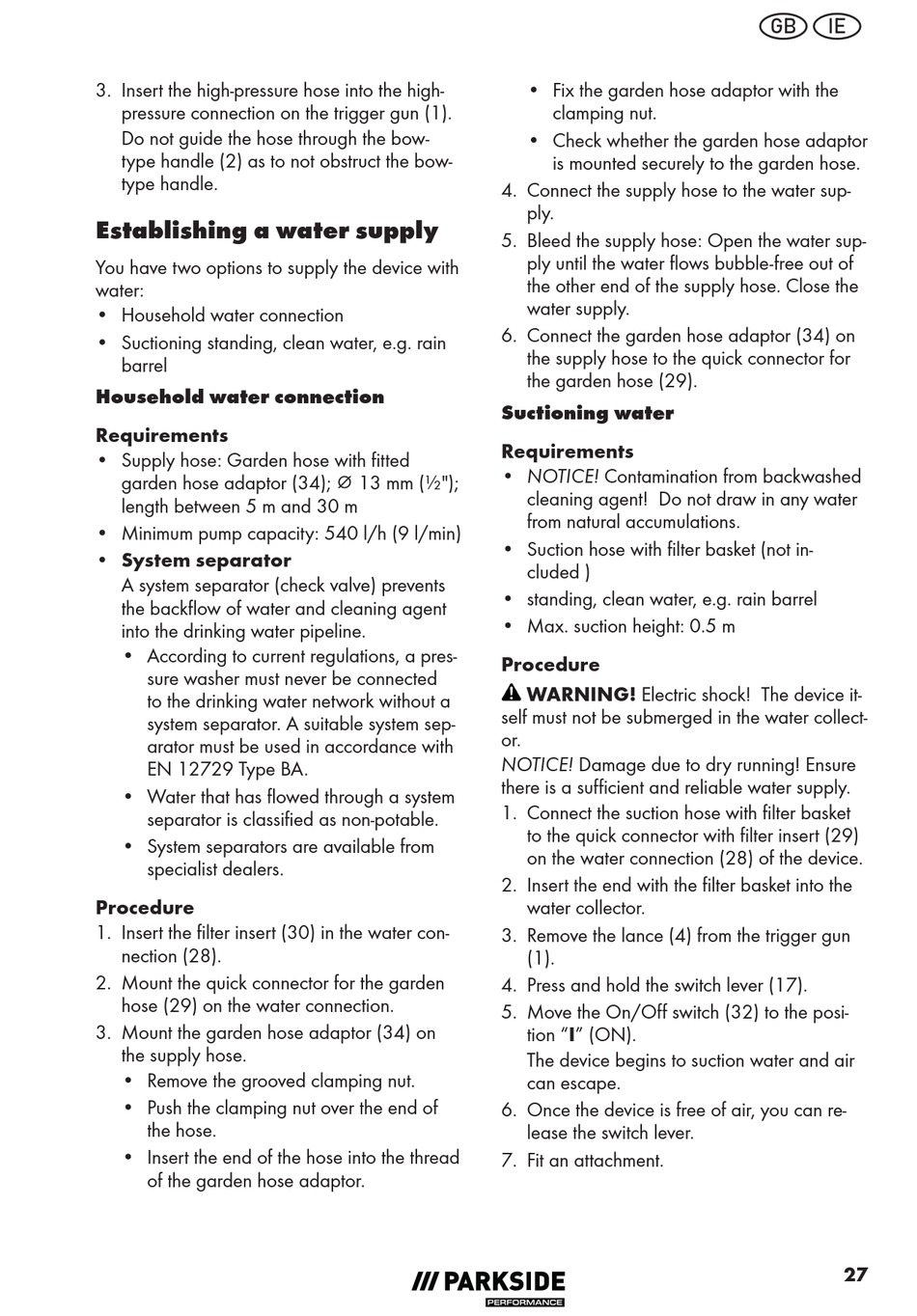

Parkside Performance PHDP 180 B2 Originalbetriebsanleitung Seite 27

3. Insert the high-pressure hose into the high-
pressure connection on the trigger gun (1).
Do not guide the hose through the bow-
type handle (2) as to not obstruct the bow-
type handle.
Establishing a water supply
You have two options to supply the device with
water:
• Household water connection
• Suctioning standing, clean water, e.g. rain
barrel
Household water connection
Requirements
• Supply hose: Garden hose with fitted
garden hose adaptor (34); ⌀ 13 mm (½");
length between 5 m and 30 m
• Minimum pump capacity: 540 l/h (9 l/min)
• System separator
A system separator (check valve) prevents
the backflow of water and cleaning agent
into the drinking water pipeline.
• According to current regulations, a pres-
sure washer must never be connected
to the drinking water network without a
system separator. A suitable system sep-
arator must be used in accordance with
EN 12729 Type BA.
• Water that has flowed through a system
separator is classified as non-potable.
• System separators are available from
specialist dealers.
Procedure
1. Insert the filter insert (30) in the water con-
nection (28).
2. Mount the quick connector for the garden
hose (29) on the water connection.
3. Mount the garden hose adaptor (34) on
the supply hose.
• Remove the grooved clamping nut.
• Push the clamping nut over the end of
the hose.
• Insert the end of the hose into the thread
of the garden hose adaptor.
• Fix the garden hose adaptor with the
clamping nut.
• Check whether the garden hose adaptor
is mounted securely to the garden hose.
4. Connect the supply hose to the water sup-
ply.
5. Bleed the supply hose: Open the water sup-
ply until the water flows bubble-free out of
the other end of the supply hose. Close the
water supply.
6. Connect the garden hose adaptor (34) on
the supply hose to the quick connector for
the garden hose (29).
Suctioning water
Requirements
• NOTICE! Contamination from backwashed
cleaning agent! Do not draw in any water
from natural accumulations.
• Suction hose with filter basket (not in-
cluded )
• standing, clean water, e.g. rain barrel
• Max. suction height: 0.5 m
Procedure
WARNING! Electric shock! The device it-
self must not be submerged in the water collect-
or.
NOTICE! Damage due to dry running! Ensure
there is a sufficient and reliable water supply.
1. Connect the suction hose with filter basket
to the quick connector with filter insert (29)
on the water connection (28) of the device.
2. Insert the end with the filter basket into the
water collector.
3. Remove the lance (4) from the trigger gun
(1).
4. Press and hold the switch lever (17).
5. Move the On/Off switch (32) to the posi-
tion "I" (ON).
The device begins to suction water and air
can escape.
6. Once the device is free of air, you can re-
lease the switch lever.
7. Fit an attachment.
