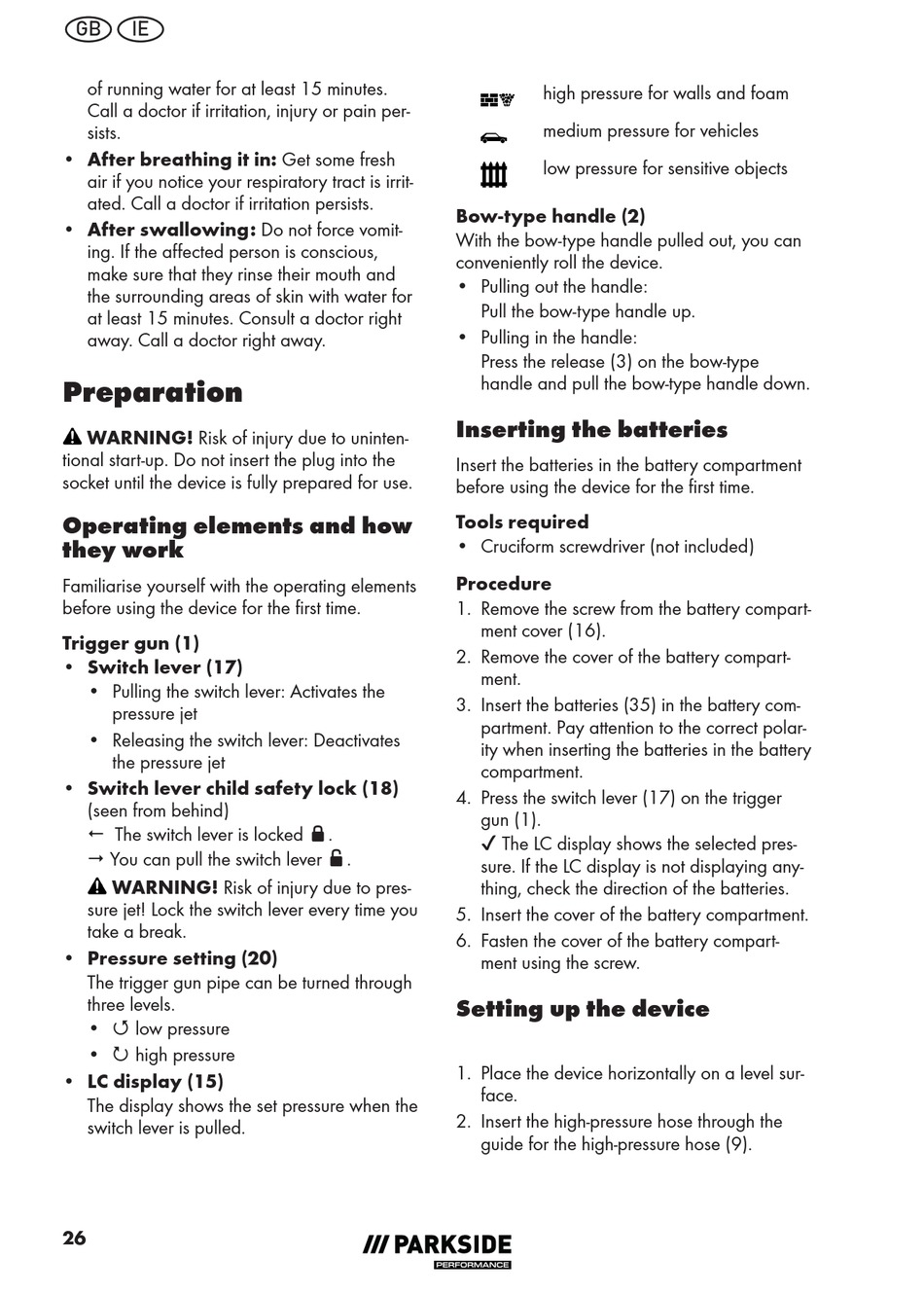

Parkside Performance PHDP 180 B2 Originalbetriebsanleitung Seite 26

GB IE
of running water for at least 15 minutes.
Call a doctor if irritation, injury or pain per-
sists.
• After breathing it in: Get some fresh
air if you notice your respiratory tract is irrit-
ated. Call a doctor if irritation persists.
• After swallowing: Do not force vomit-
ing. If the affected person is conscious,
make sure that they rinse their mouth and
the surrounding areas of skin with water for
at least 15 minutes. Consult a doctor right
away. Call a doctor right away.
Preparation
WARNING! Risk of injury due to uninten-
tional start-up. Do not insert the plug into the
socket until the device is fully prepared for use.
Operating elements and how
they work
Familiarise yourself with the operating elements
before using the device for the first time.
Trigger gun (1)
• Switch lever (17)
• Pulling the switch lever: Activates the
pressure jet
• Releasing the switch lever: Deactivates
the pressure jet
• Switch lever child safety lock (18)
(seen from behind)
⭠ The switch lever is locked ὑ.
⭢ You can pull the switch lever ὑ.
WARNING! Risk of injury due to pres-
sure jet! Lock the switch lever every time you
take a break.
• Pressure setting (20)
The trigger gun pipe can be turned through
three levels.
• ⭯ low pressure
• ⭮ high pressure
• LC display (15)
The display shows the set pressure when the
switch lever is pulled.
26
high pressure for walls and foam
medium pressure for vehicles
low pressure for sensitive objects
Bow-type handle (2)
With the bow-type handle pulled out, you can
conveniently roll the device.
• Pulling out the handle:
Pull the bow-type handle up.
• Pulling in the handle:
Press the release (3) on the bow-type
handle and pull the bow-type handle down.
Inserting the batteries
Insert the batteries in the battery compartment
before using the device for the first time.
Tools required
• Cruciform screwdriver (not included)
Procedure
1. Remove the screw from the battery compart-
ment cover (16).
2. Remove the cover of the battery compart-
ment.
3. Insert the batteries (35) in the battery com-
partment. Pay attention to the correct polar-
ity when inserting the batteries in the battery
compartment.
4. Press the switch lever (17) on the trigger
gun (1).
✔ The LC display shows the selected pres-
sure. If the LC display is not displaying any-
thing, check the direction of the batteries.
5. Insert the cover of the battery compartment.
6. Fasten the cover of the battery compart-
ment using the screw.
Setting up the device
1. Place the device horizontally on a level sur-
face.
2. Insert the high-pressure hose through the
guide for the high-pressure hose (9).
