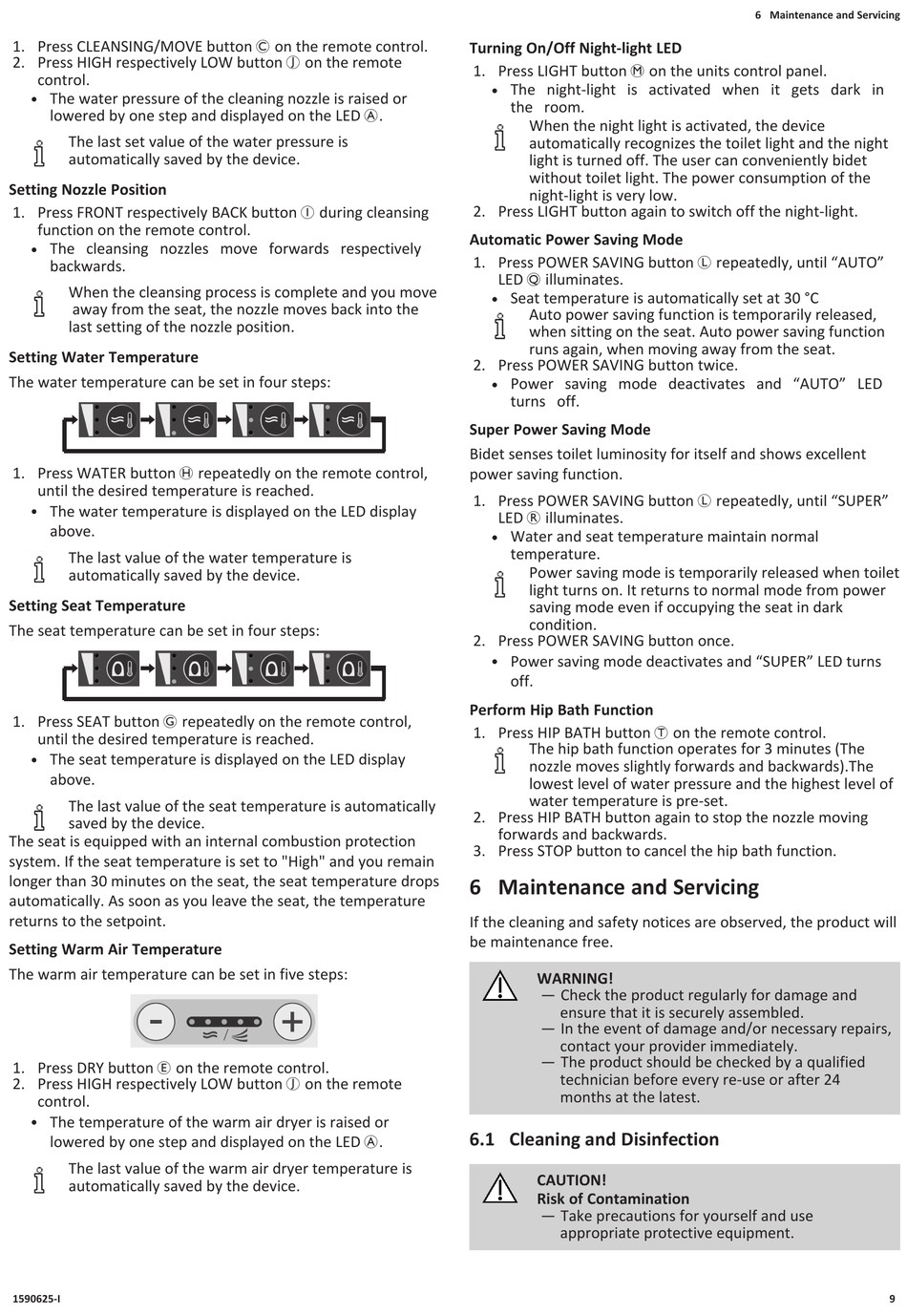

Invacare Aquatec Pure Bidet Gebrauchsanweisung Seite 9

1. Press CLEANSING/MOVE button C on the remote control.
2. Press HIGH respectively LOW button J on the remote
control.
The water pressure of the cleaning nozzle is raised or
l
lowered by one step and displayed on the LED A.
The last set value of the water pressure is
automatically saved by the device.
Setting Nozzle Position
1. Press FRONT respectively BACK button I during cleansing
function on the remote control.
The cleansing nozzles move forwards respectively
l
backwards.
When the cleansing process is complete and you move
away from the seat, the nozzle moves back into the
last setting of the nozzle position.
Setting Water Temperature
The water temperature can be set in four steps:
1. Press WATER button H repeatedly on the remote control,
until the desired temperature is reached.
The water temperature is displayed on the LED display
l
above.
The last value of the water temperature is
automatically saved by the device.
Setting Seat Temperature
The seat temperature can be set in four steps:
1. Press SEAT button G repeatedly on the remote control,
until the desired temperature is reached.
The seat temperature is displayed on the LED display
l
above.
The last value of the seat temperature is automatically
saved by the device.
The seat is equipped with an internal combustion protection
system. If the seat temperature is set to "High" and you remain
longer than 30 minutes on the seat, the seat temperature drops
automatically. As soon as you leave the seat, the temperature
returns to the setpoint.
Setting Warm Air Temperature
The warm air temperature can be set in five steps:
1. Press DRY button E on the remote control.
2. Press HIGH respectively LOW button J on the remote
control.
The temperature of the warm air dryer is raised or
l
lowered by one step and displayed on the LED A.
The last value of the warm air dryer temperature is
automatically saved by the device.
1590625-I
Turning On/Off Night-light LED
1. Press LIGHT button M on the units control panel.
The night-light is activated when it gets dark in
l
the room.
When the night light is activated, the device
automatically recognizes the toilet light and the night
light is turned off. The user can conveniently bidet
without toilet light. The power consumption of the
night-light is very low.
2. Press LIGHT button again to switch off the night-light.
Automatic Power Saving Mode
1. Press POWER SAVING button L repeatedly, until "AUTO"
LED Q illuminates.
Seat temperature is automatically set at 30 °C
l
Auto power saving function is temporarily released,
when sitting on the seat. Auto power saving function
runs again, when moving away from the seat.
2. Press POWER SAVING button twice.
Power saving mode deactivates and "AUTO" LED
l
turns off.
Super Power Saving Mode
Bidet senses toilet luminosity for itself and shows excellent
power saving function.
1. Press POWER SAVING button L repeatedly, until "SUPER"
LED R illuminates.
Water and seat temperature maintain normal
l
temperature.
Power saving mode is temporarily released when toilet
light turns on. It returns to normal mode from power
saving mode even if occupying the seat in dark
condition.
2. Press POWER SAVING button once.
Power saving mode deactivates and "SUPER" LED turns
l
off.
Perform Hip Bath Function
1. Press HIP BATH button T on the remote control.
The hip bath function operates for 3 minutes (The
nozzle moves slightly forwards and backwards).The
lowest level of water pressure and the highest level of
water temperature is pre-set.
2. Press HIP BATH button again to stop the nozzle moving
forwards and backwards.
3. Press STOP button to cancel the hip bath function.
6 Maintenance and Servicing
If the cleaning and safety notices are observed, the product will
be maintenance free.
WARNING!
— Check the product regularly for damage and
ensure that it is securely assembled.
— In the event of damage and/or necessary repairs,
contact your provider immediately.
— The product should be checked by a qualified
technician before every re-use or after 24
months at the latest.
6.1 Cleaning and Disinfection
CAUTION!
Risk of Contamination
— Take precautions for yourself and use
appropriate protective equipment.
6 Maintenance and Servicing
9
