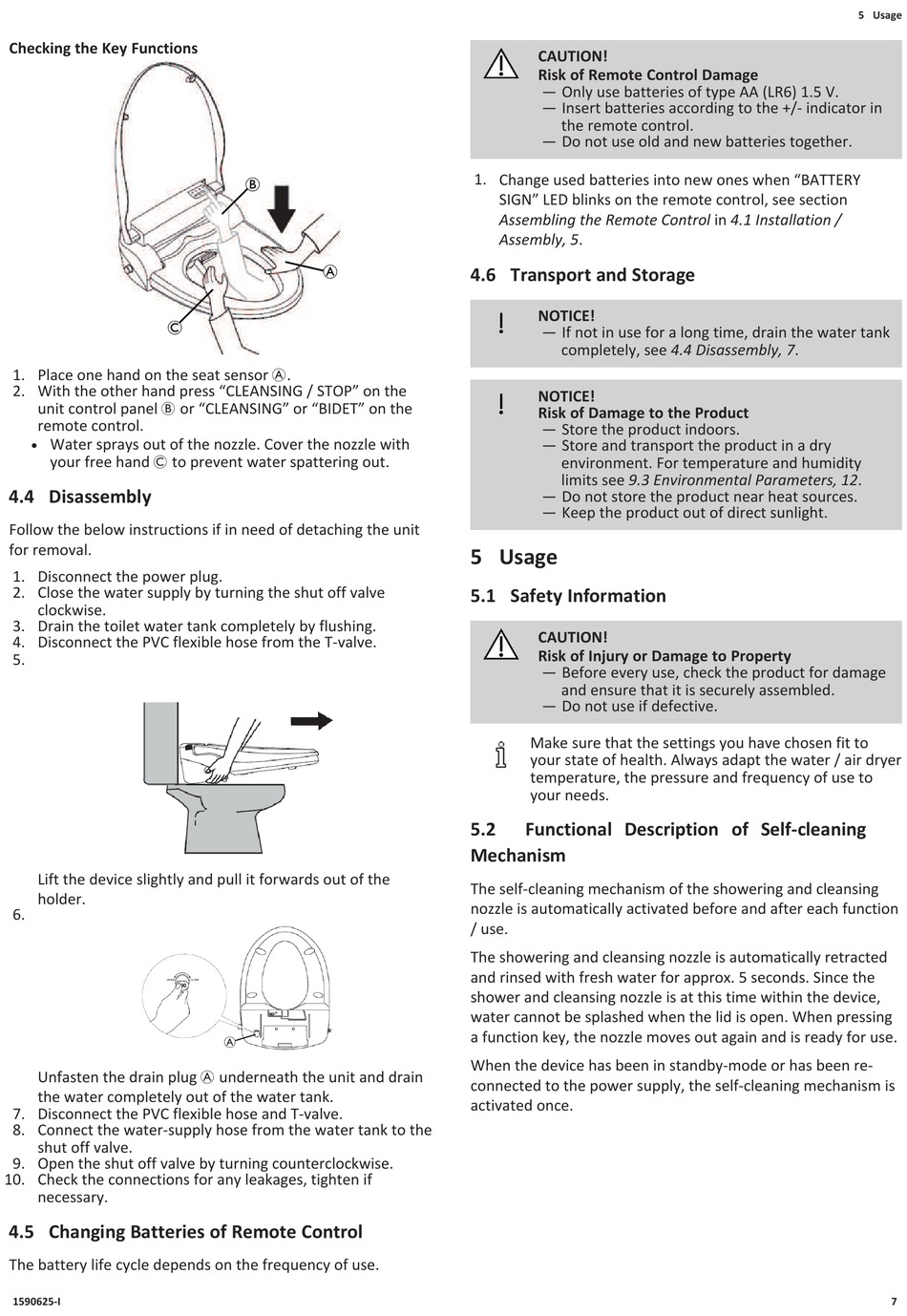

Invacare Aquatec Pure Bidet Gebrauchsanweisung Seite 7

Checking the Key Functions
1. Place one hand on the seat sensor A.
2. With the other hand press "CLEANSING / STOP" on the
unit control panel B or "CLEANSING" or "BIDET" on the
remote control.
Water sprays out of the nozzle. Cover the nozzle with
l
your free hand C to prevent water spattering out.
4.4 Disassembly
Follow the below instructions if in need of detaching the unit
for removal.
1. Disconnect the power plug.
2. Close the water supply by turning the shut off valve
clockwise.
3. Drain the toilet water tank completely by flushing.
4. Disconnect the PVC flexible hose from the T-valve.
5.
Lift the device slightly and pull it forwards out of the
holder.
6.
Unfasten the drain plug A underneath the unit and drain
the water completely out of the water tank.
7. Disconnect the PVC flexible hose and T-valve.
8. Connect the water-supply hose from the water tank to the
shut off valve.
9. Open the shut off valve by turning counterclockwise.
10. Check the connections for any leakages, tighten if
necessary.
4.5 Changing Batteries of Remote Control
The battery life cycle depends on the frequency of use.
1590625-I
A
CAUTION!
Risk of Remote Control Damage
— Only use batteries of type AA (LR6) 1.5 V.
— Insert batteries according to the +/- indicator in
the remote control.
— Do not use old and new batteries together.
1. Change used batteries into new ones when "BATTERY
SIGN" LED blinks on the remote control, see section
Assembling the Remote Control in 4.1 Installation /
Assembly, 5.
4.6 Transport and Storage
NOTICE!
— If not in use for a long time, drain the water tank
completely, see 4.4 Disassembly, 7.
NOTICE!
Risk of Damage to the Product
— Store the product indoors.
— Store and transport the product in a dry
environment. For temperature and humidity
limits see 9.3 Environmental Parameters, 12.
— Do not store the product near heat sources.
— Keep the product out of direct sunlight.
5 Usage
5.1 Safety Information
CAUTION!
Risk of Injury or Damage to Property
— Before every use, check the product for damage
and ensure that it is securely assembled.
— Do not use if defective.
Make sure that the settings you have chosen fit to
your state of health. Always adapt the water / air dryer
temperature, the pressure and frequency of use to
your needs.
5.2 Functional Description of Self-cleaning
Mechanism
The self-cleaning mechanism of the showering and cleansing
nozzle is automatically activated before and after each function
/ use.
The showering and cleansing nozzle is automatically retracted
and rinsed with fresh water for approx. 5 seconds. Since the
shower and cleansing nozzle is at this time within the device,
water cannot be splashed when the lid is open. When pressing
a function key, the nozzle moves out again and is ready for use.
When the device has been in standby-mode or has been re-
connected to the power supply, the self-cleaning mechanism is
activated once.
5 Usage
7
