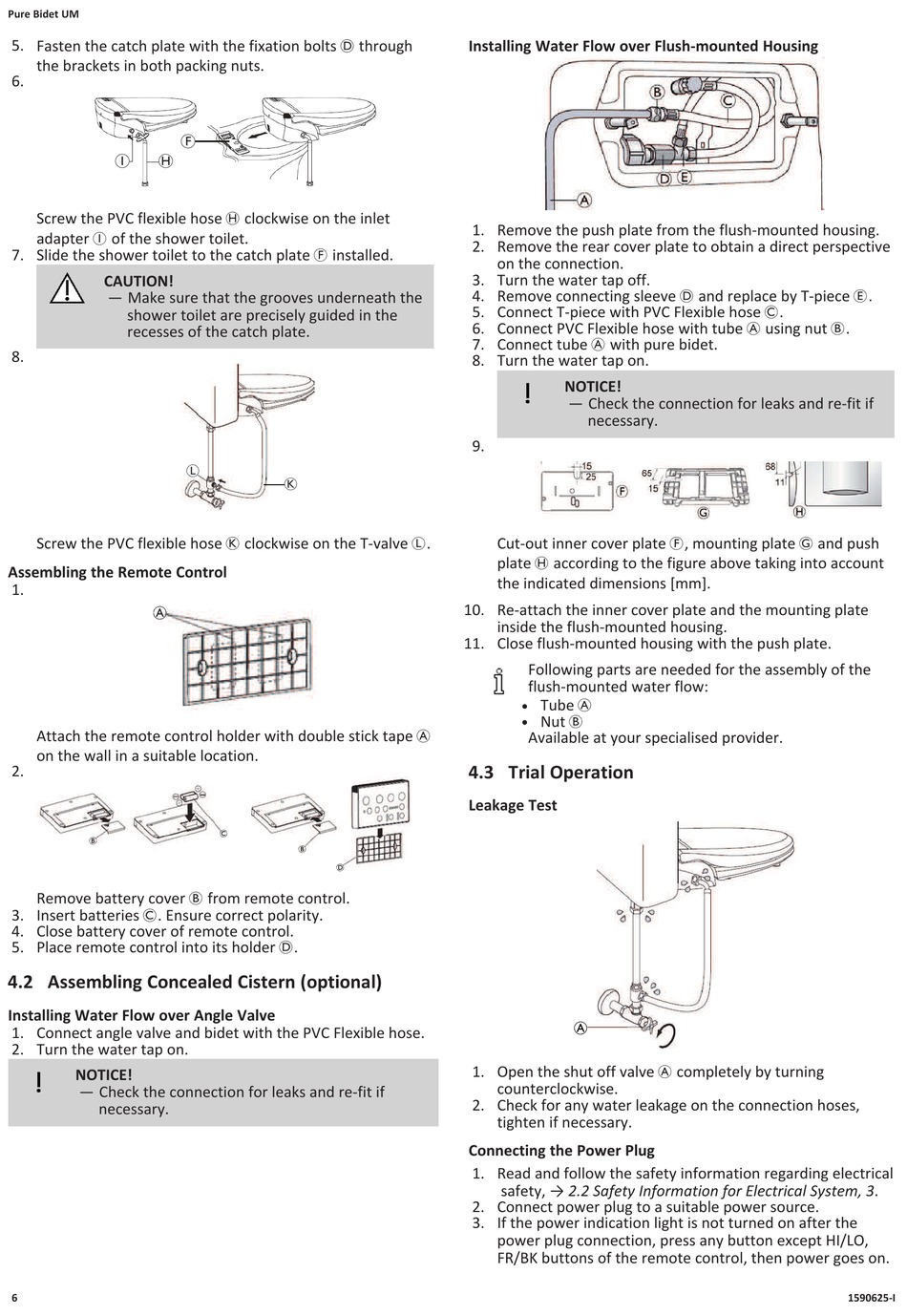

Pure Bidet UM
5. Fasten the catch plate with the fixation bolts D through
the brackets in both packing nuts.
6.
I H
Screw the PVC flexible hose H clockwise on the inlet
adapter I of the shower toilet.
7. Slide the shower toilet to the catch plate F installed.
CAUTION!
— Make sure that the grooves underneath the
shower toilet are precisely guided in the
recesses of the catch plate.
8.
Screw the PVC flexible hose K clockwise on the T-valve L.
Assembling the Remote Control
1.
Attach the remote control holder with double stick tape A
on the wall in a suitable location.
2.
Remove battery cover B from remote control.
3. Insert batteries C. Ensure correct polarity.
4. Close battery cover of remote control.
5. Place remote control into its holder D.
4.2 Assembling Concealed Cistern (optional)
Installing Water Flow over Angle Valve
1. Connect angle valve and bidet with the PVC Flexible hose.
2. Turn the water tap on.
NOTICE!
— Check the connection for leaks and re-fit if
necessary.
6
F
L
K
Installing Water Flow over Flush-mounted Housing
1. Remove the push plate from the flush-mounted housing.
2. Remove the rear cover plate to obtain a direct perspective
on the connection.
3. Turn the water tap off.
4. Remove connecting sleeve D and replace by T-piece E.
5. Connect T-piece with PVC Flexible hose C.
6. Connect PVC Flexible hose with tube A using nut B.
7. Connect tube A with pure bidet.
8. Turn the water tap on.
NOTICE!
— Check the connection for leaks and re-fit if
necessary.
9.
Cut-out inner cover plate F, mounting plate G and push
plate H according to the figure above taking into account
the indicated dimensions [mm].
10. Re-attach the inner cover plate and the mounting plate
inside the flush-mounted housing.
11. Close flush-mounted housing with the push plate.
Following parts are needed for the assembly of the
flush-mounted water flow:
Tube A
l
Nut B
l
Available at your specialised provider.
4.3 Trial Operation
Leakage Test
1. Open the shut off valve A completely by turning
counterclockwise.
2. Check for any water leakage on the connection hoses,
tighten if necessary.
Connecting the Power Plug
1. Read and follow the safety information regarding electrical
safety, → 2.2 Safety Information for Electrical System, 3.
2. Connect power plug to a suitable power source.
3. If the power indication light is not turned on after the
power plug connection, press any button except HI/LO,
FR/BK buttons of the remote control, then power goes on.
1590625-I
