Pure Bidet UM

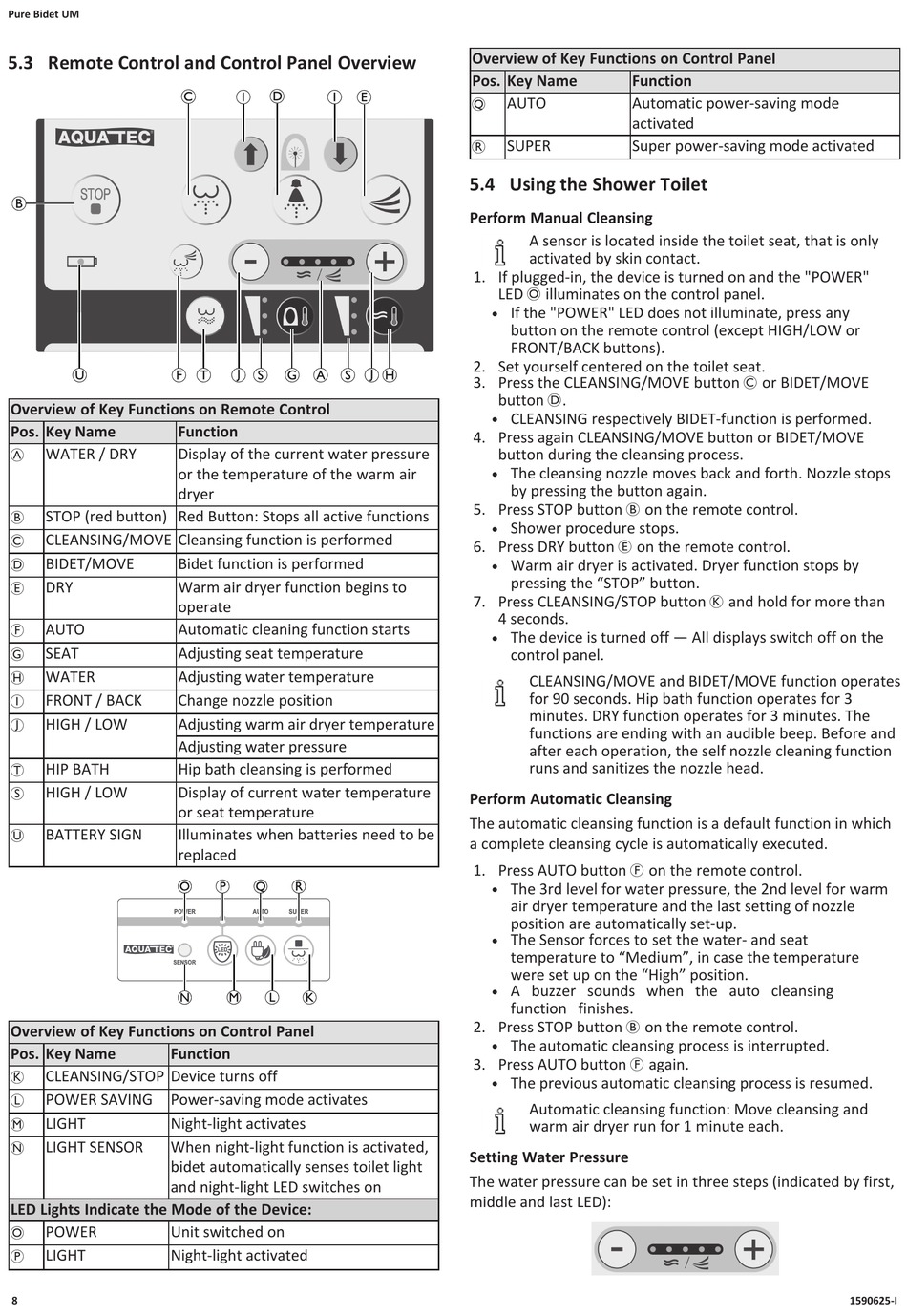

5.3 Remote Control and Control Panel Overview
Overview of Key Functions on Remote Control
Pos. Key Name Function
WATER / DRY Display of the current water pressure
A
or the temperature of the warm air
dryer
STOP (red button) Red Button: Stops all active functions
B
CLEANSING/MOVE Cleansing function is performed
C
BIDET/MOVE Bidet function is performed
D
DRY Warm air dryer function begins to
E
operate
AUTO Automatic cleaning function starts
F
SEAT Adjusting seat temperature
G
WATER Adjusting water temperature
H
FRONT / BACK Change nozzle position
I
HIGH / LOW Adjusting warm air dryer temperature
J
Adjusting water pressure
HIP BATH Hip bath cleansing is performed
T
HIGH / LOW Display of current water temperature
S
or seat temperature
BATTERY SIGN Illuminates when batteries need to be
U
replaced
Overview of Key Functions on Control Panel
Pos. Key Name Function
CLEANSING/STOP Device turns off
K
POWER SAVING Power-saving mode activates
L
LIGHT Night-light activates
M
LIGHT SENSOR When night-light function is activated,
N
bidet automatically senses toilet light
and night-light LED switches on
LED Lights Indicate the Mode of the Device:
POWER Unit switched on
O
LIGHT Night-light activated
P
8
Overview of Key Functions on Control Panel
Pos. Key Name Function
AUTO Automatic power-saving mode
Q
activated
SUPER Super power-saving mode activated
R
5.4 Using the Shower Toilet
Perform Manual Cleansing
A sensor is located inside the toilet seat, that is only
activated by skin contact.
1. If plugged-in, the device is turned on and the "POWER"
LED O illuminates on the control panel.
If the "POWER" LED does not illuminate, press any
l
button on the remote control (except HIGH/LOW or
FRONT/BACK buttons).
2. Set yourself centered on the toilet seat.
3. Press the CLEANSING/MOVE button C or BIDET/MOVE
button D.
CLEANSING respectively BIDET-function is performed.
l
4. Press again CLEANSING/MOVE button or BIDET/MOVE
button during the cleansing process.
The cleansing nozzle moves back and forth. Nozzle stops
l
by pressing the button again.
5. Press STOP button B on the remote control.
Shower procedure stops.
l
6. Press DRY button E on the remote control.
Warm air dryer is activated. Dryer function stops by
l
pressing the "STOP" button.
7. Press CLEANSING/STOP button K and hold for more than
4 seconds.
The device is turned off — All displays switch off on the
l
control panel.
CLEANSING/MOVE and BIDET/MOVE function operates
for 90 seconds. Hip bath function operates for 3
minutes. DRY function operates for 3 minutes. The
functions are ending with an audible beep. Before and
after each operation, the self nozzle cleaning function
runs and sanitizes the nozzle head.
Perform Automatic Cleansing
The automatic cleansing function is a default function in which
a complete cleansing cycle is automatically executed.
1. Press AUTO button F on the remote control.
The 3rd level for water pressure, the 2nd level for warm
l
air dryer temperature and the last setting of nozzle
position are automatically set-up.
The Sensor forces to set the water- and seat
l
temperature to "Medium", in case the temperature
were set up on the "High" position.
A buzzer sounds when the auto cleansing
l
function finishes.
2. Press STOP button B on the remote control.
The automatic cleansing process is interrupted.
l
3. Press AUTO button F again.
The previous automatic cleansing process is resumed.
l
Automatic cleansing function: Move cleansing and
warm air dryer run for 1 minute each.
Setting Water Pressure
The water pressure can be set in three steps (indicated by first,
middle and last LED):
