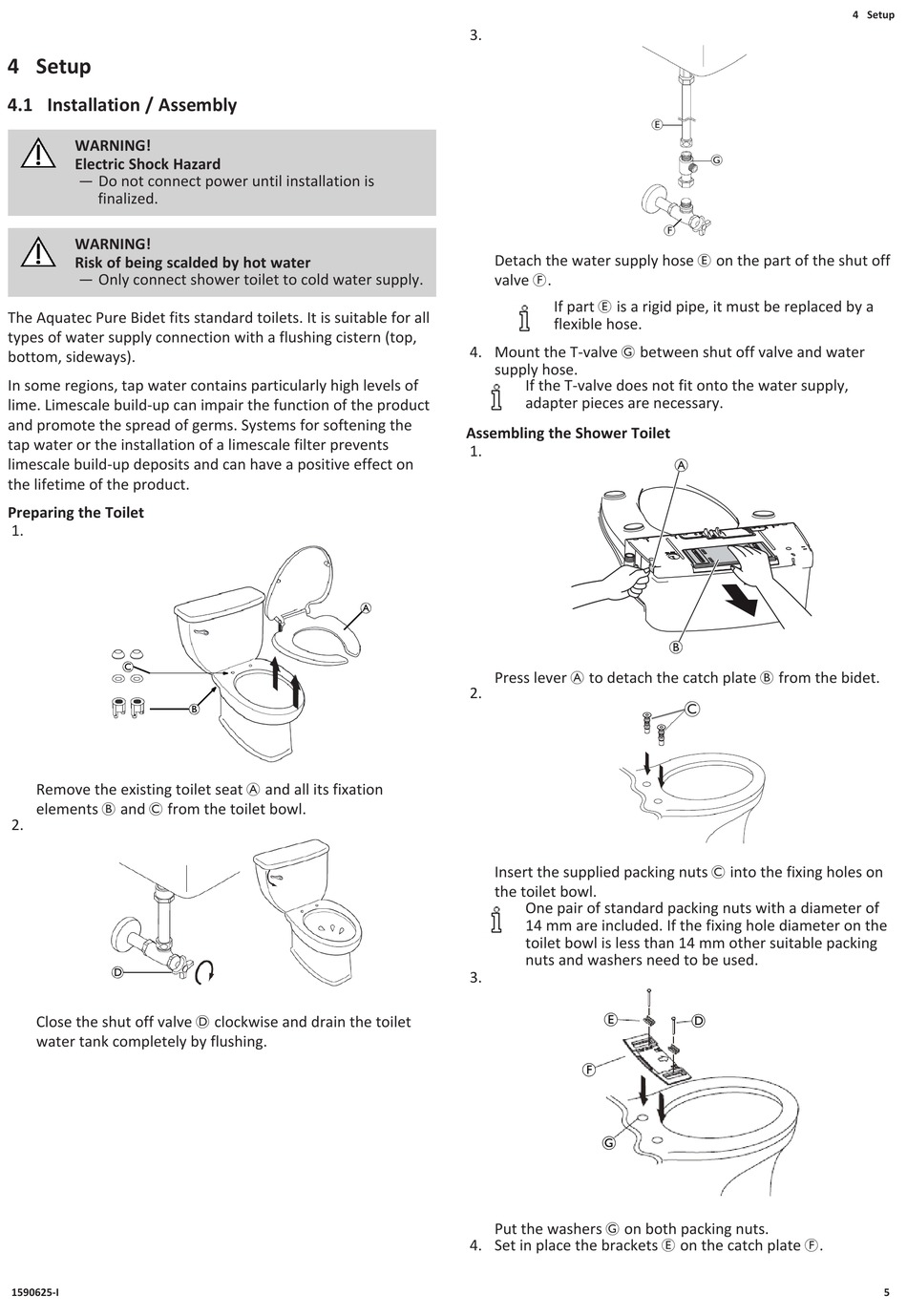

4 Setup
4.1 Installation / Assembly
WARNING!
Electric Shock Hazard
— Do not connect p ower until installation is
finalized.
WARNING!
Risk of being scalded by hot water
— Only connect shower toilet to cold water supply.
The Aquatec Pure Bidet fits standard toilets. It is suitable for all
types of water supply connection with a flushing cistern (top,
bottom, sideways).
In some regions, tap water contains particularly high levels of
lime. Limescale build-up can impair the function of the product
and promote the spread of germs. Systems for softening the
tap water or the installation of a limescale filter prevents
limescale build-up deposits and can have a positive effect on
the lifetime of the product.
Preparing the Toilet
1.
Remove the existing toilet seat A and all its fixation
elements B and C from the toilet bowl.
2.
Close the shut off valve D clockwise and drain the toilet
water tank completely by flushing.
1590625-I
3.
Detach the water supply hose E on the part of the shut off
valve F.
If part E is a rigid pipe, it must be replaced by a
flexible hose.
4. Mount the T-valve G between shut off valve and water
supply hose.
If the T-valve does not fit onto the water supply,
adapter pieces are necessary.
Assembling the Shower Toilet
1.
Press lever A to detach the catch plate B from the bidet.
2.
Insert the supplied packing nuts C into the fixing holes on
the toilet bowl.
One pair of standard packing nuts with a diameter of
14 mm are included. If the fixing hole diameter on the
toilet bowl is less than 14 mm other suitable packing
nuts and washers need to be used.
3.
Put the washers G on both packing nuts.
4. Set in place the brackets E on the catch plate F.
E
G
F
C
