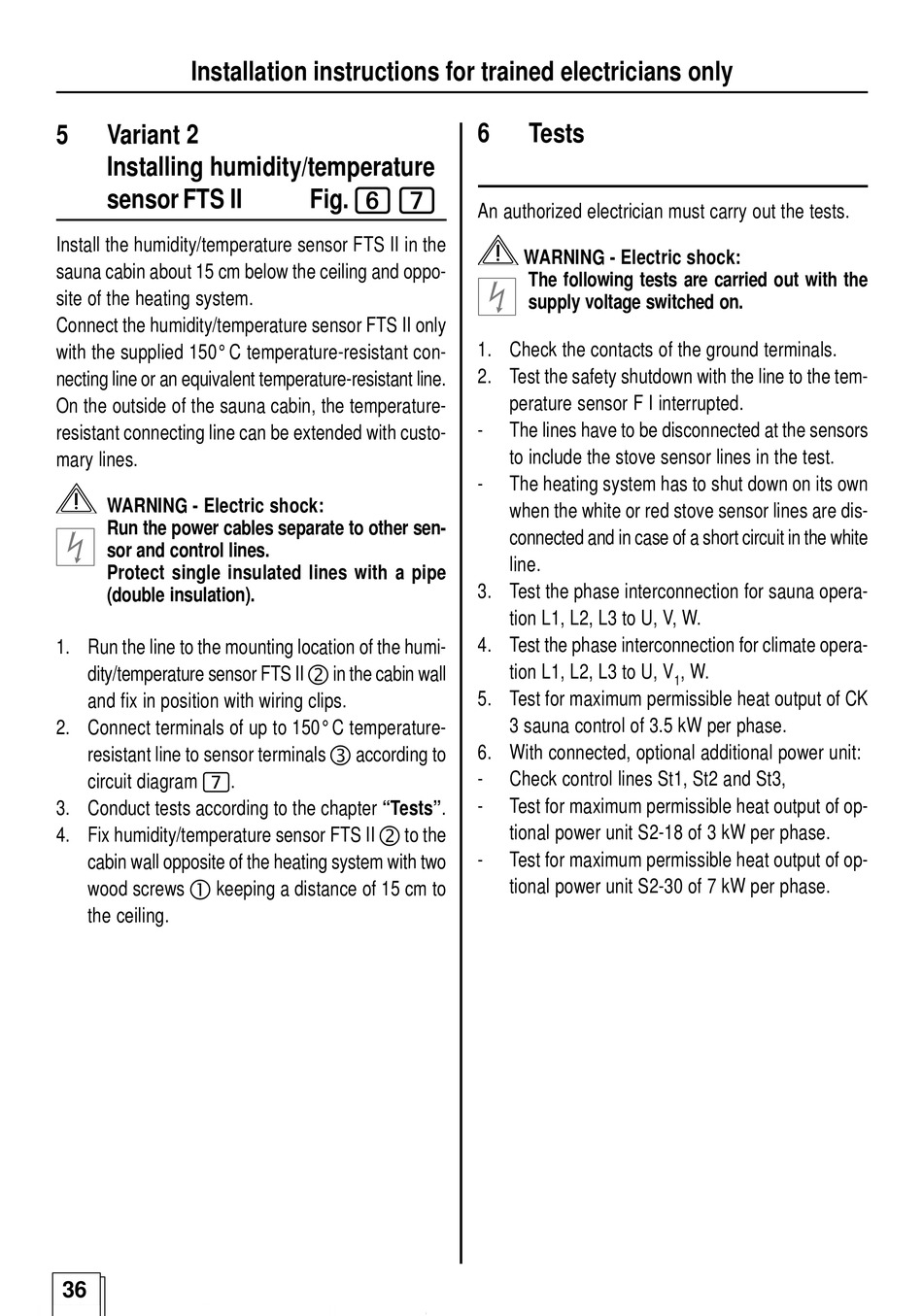

Installation instructions for trained electricians only
5 Variant 2
Installing humidity/temperature
sensor FTS II
Install the humidity/temperature sensor FTS II in the
sauna cabin about 15 cm below the ceiling and oppo-
site of the heating system.
Connect the humidity/temperature sensor FTS II only
with the supplied 150° C temperature-resistant con-
necting line or an equivalent temperature-resistant line.
On the outside of the sauna cabin, the temperature-
resistant connecting line can be extended with custo-
mary lines.
WARNING - Electric shock:
Run the power cables separate to other sen-
sor and control lines.
Protect single insulated lines with a pipe
(double insulation).
1. Run the line to the mounting location of the humi-
dity/temperature sensor FTS II 2 in the cabin wall
and fix in position with wiring clips.
2. Connect terminals of up to 150° C temperature-
resistant line to sensor terminals 3 according to
circuit diagram 7.
3. Conduct tests according to the chapter "Tests".
4. Fix humidity/temperature sensor FTS II 2 to the
cabin wall opposite of the heating system with two
wood screws 1 keeping a distance of 15 cm to
the ceiling.
36
6
Fig. 6 7
An authorized electrician must carry out the tests.
1. Check the contacts of the ground terminals.
2. Test the safety shutdown with the line to the tem-
-
-
3. Test the phase interconnection for sauna opera-
4. Test the phase interconnection for climate opera-
5. Test for maximum permissible heat output of CK
6. With connected, optional additional power unit:
-
-
-

Tests

WARNING - Electric shock:
The following tests are carried out with the
supply voltage switched on.
perature sensor F I interrupted.
The lines have to be disconnected at the sensors
to include the stove sensor lines in the test.
The heating system has to shut down on its own
when the white or red stove sensor lines are dis-
connected and in case of a short circuit in the white
line.
tion L1, L2, L3 to U, V, W.
tion L1, L2, L3 to U, V , W.
1
3 sauna control of 3.5 kW per phase.
Check control lines St1, St2 and St3,
Test for maximum permissible heat output of op-
tional power unit S2-18 of 3 kW per phase.
Test for maximum permissible heat output of op-
tional power unit S2-30 of 7 kW per phase.
