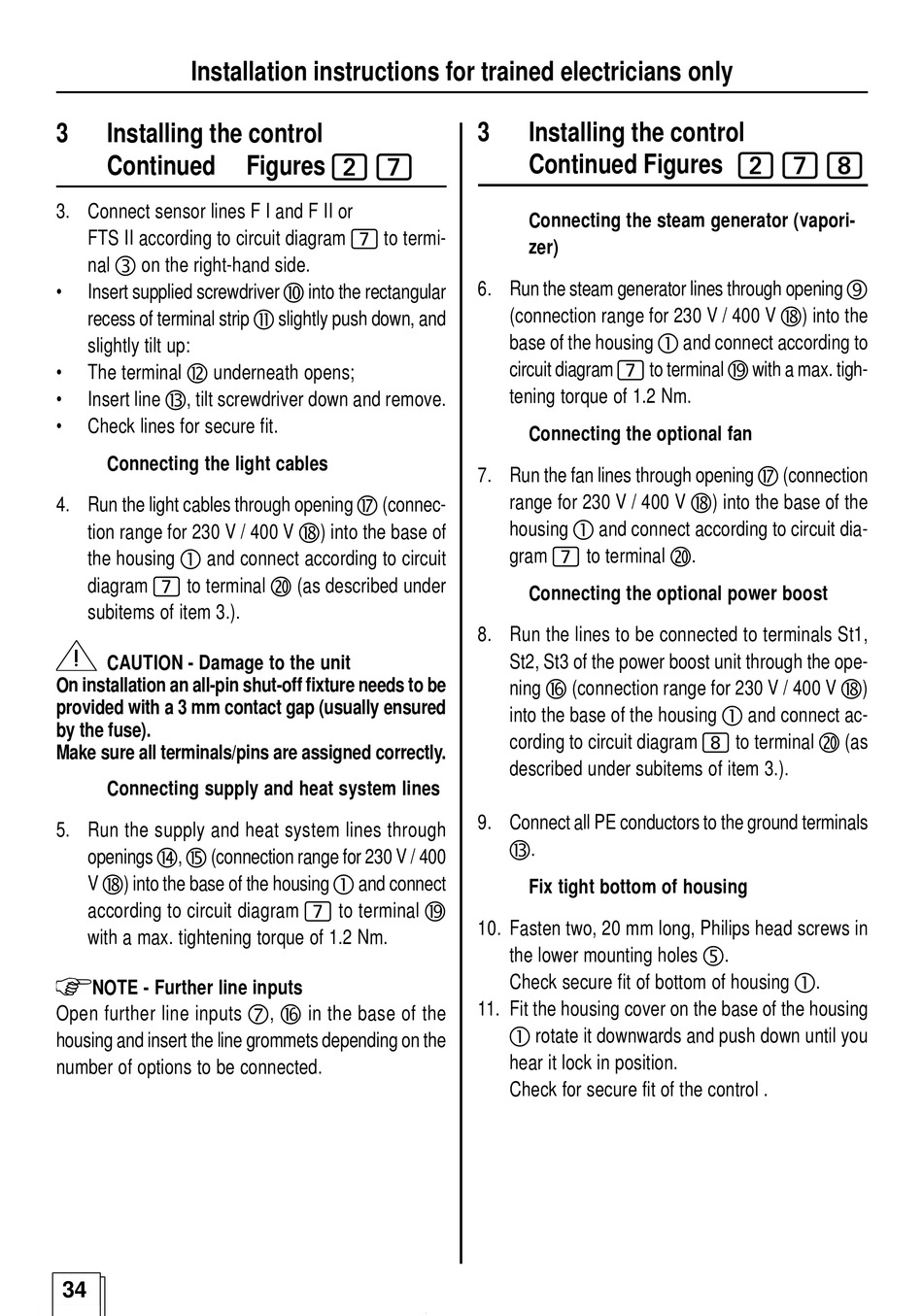

Installation instructions for trained electricians only
3 Installing the control
Continued
3. Connect sensor lines F I and F II or
FTS II according to circuit diagram 7 to termi-
nal 3 on the right-hand side.
• Insert supplied screwdriver A into the rectangular
recess of terminal strip B slightly push down, and
slightly tilt up:
• The terminal C underneath opens;
• Insert line D, tilt screwdriver down and remove.
• Check lines for secure fit.
Connecting the light cables
4. Run the light cables through opening H (connec-
tion range for 230 V / 400 V I) into the base of
the housing 1 and connect according to circuit
diagram 7 to terminal K (as described under
subitems of item 3.).
CAUTION - Damage to the unit
On installation an all-pin shut-off fixture needs to be
provided with a 3 mm contact gap (usually ensured
by the fuse).
Make sure all terminals/pins are assigned correctly.
Connecting supply and heat system lines
5. Run the supply and heat system lines through
openings E, F (connection range for 230 V / 400
V I) into the base of the housing 1 and connect
according to circuit diagram 7 to terminal J
with a max. tightening torque of 1.2 Nm.
NOTE - Further line inputs
Open further line inputs 7, G in the base of the
housing and insert the line grommets depending on the
number of options to be connected.
34
Figures 2 7
3 Installing the control
Continued Figures 2 7 8
Connecting the steam generator (vapori-
zer)
6. Run the steam generator lines through opening 9
(connection range for 230 V / 400 V I) into the
base of the housing 1 and connect according to
circuit diagram 7 to terminal J with a max. tigh-
tening torque of 1.2 Nm.
Connecting the optional fan
7. Run the fan lines through opening H (connection
range for 230 V / 400 V I) into the base of the
housing 1 and connect according to circuit dia-
gram 7 to terminal K.
Connecting the optional power boost
8. Run the lines to be connected to terminals St1,
St2, St3 of the power boost unit through the ope-
ning G (connection range for 230 V / 400 V I)
into the base of the housing 1 and connect ac-
cording to circuit diagram 8 to terminal K (as
described under subitems of item 3.).
9. Connect all PE conductors to the ground terminals
D.
Fix tight bottom of housing
10. Fasten two, 20 mm long, Philips head screws in
the lower mounting holes 5.
Check secure fit of bottom of housing 1.
11. Fit the housing cover on the base of the housing
1 rotate it downwards and push down until you
hear it lock in position.
Check for secure fit of the control .
