4.2.2. Handle

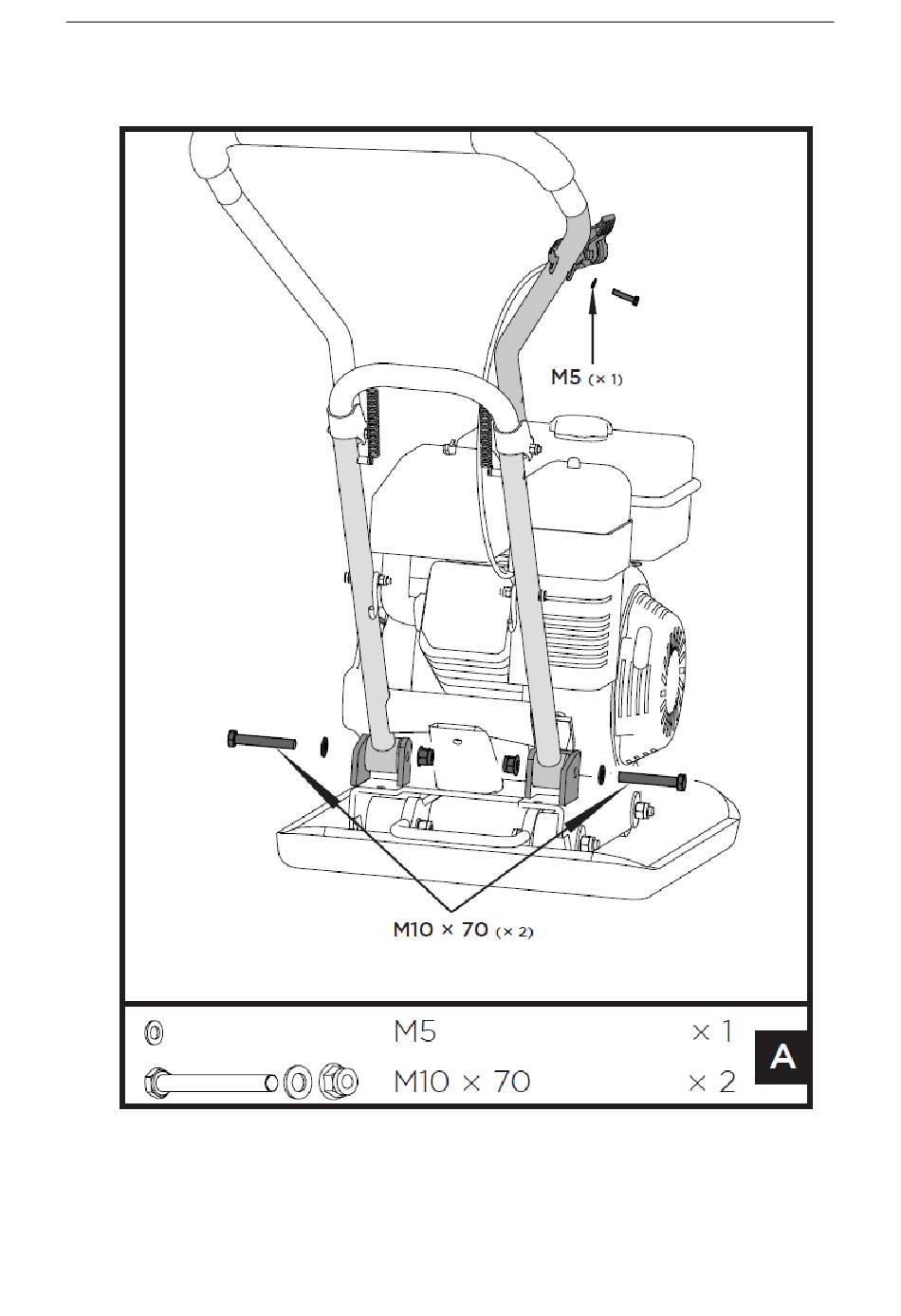

1. Mount the Handle as shown. Make the Handle Ends slot into the channels provided by the Engine
Deck. Place flat washers 10, followed by hex bolts M10x70 at the outer side, and tighten with lock
nuts M10 at the inner side.
2. Unscrew bolt 5x35 from throttle control. Secure the Throttle Control onto the Upper Handle with
a flat washer 5 and the bolt 5X35 that just were unscrewed.
Fasten the Throttle Control cable with cable fasteners.
