4
Installation
4.1
Setting the system in place
Make sure there is enough space for maintenance work to be carried out in accordance with the relevant directives and
standards (EN 12056-4 and EN 12050-1). We recommend at least 60 cm working space all round the plant.
If provided, lay out the sound insulating underlay mat so that the system can be positioned on it.
Pre-conditions:
The system must be installed on a level surface that is sufficiently load-bearing (take into account weight when filled =
tank volume in kg plus 70 to 250 kg, depending on system design).
The surface must be suitable for holding the floor fixings (per screw, 0.9 kN), which are intended to prevent the system in
the pump sump from floating up.
Connection pipes (inlet and outlet as well as venting) must be fixed so that they are self-supporting, they must not exert
any load on the system.
4.2

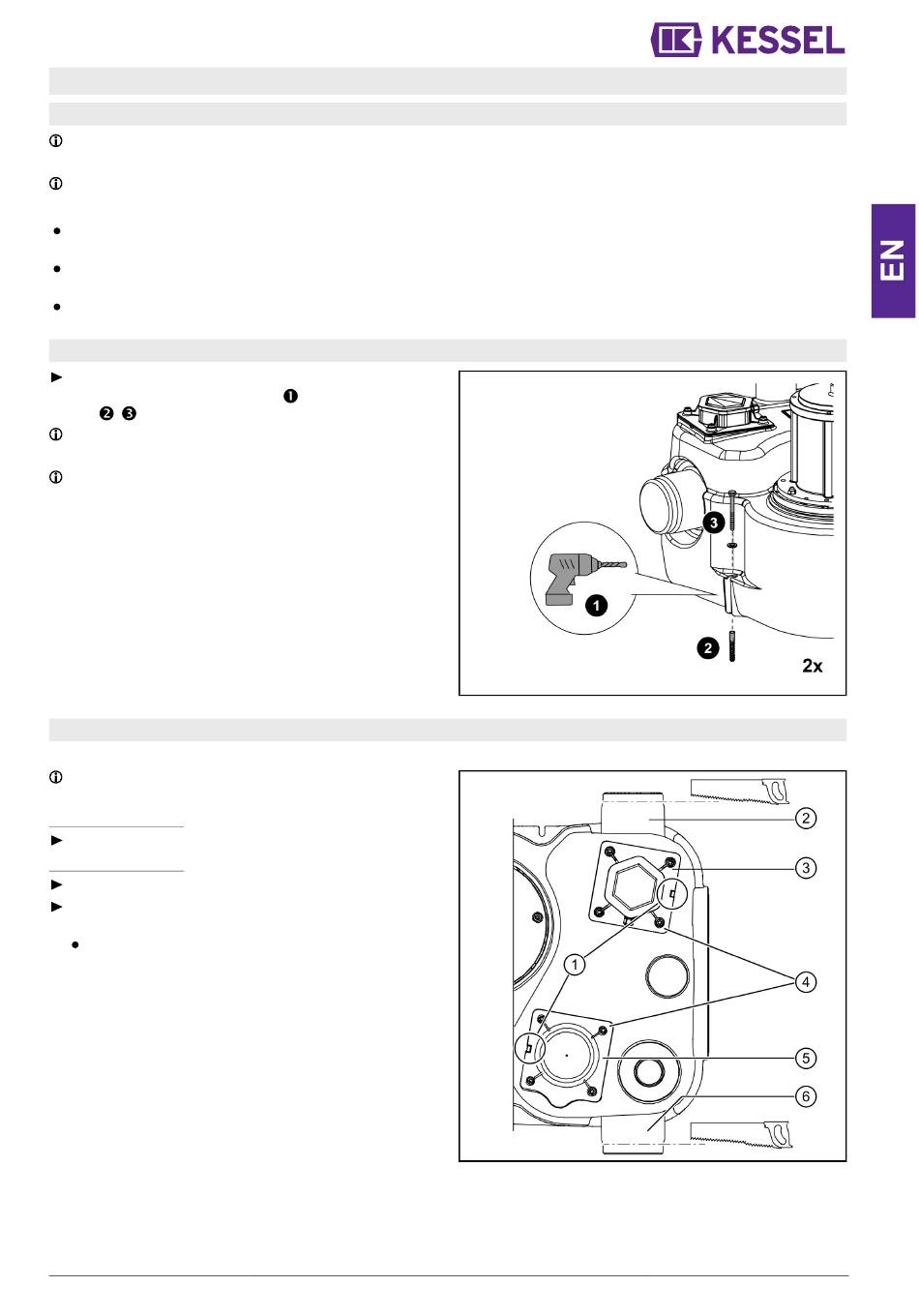

Fixing the tank
Place the tank in the correct position and screw onto the
floor at the two fastening points .
M8.
Choose fasteners capable of bearing a tensile load of
at least 200 N per fastening point.
Use KESSEL sound insulating underlay mat to minimise
sound transfer.
4.3
Mounting the inlet and outlet
Preparation
Risk of functional problems due to suspended matter and
solids deposited on the float switch.
Inlet at the socket (2)
Saw off the socket at the indicated cutting edge.
Inlet at the socket (6)
Saw off the socket at the indicated cutting edge.
Replace the float switch (3) with the access cover of the
maintenance opening (5).
Unscrew each of the 4 fastening screws (4) and swap
over the two assemblies accordingly.
Place the anti-rotation device (1) in the correct posi-
tion.
016-272
Screws maximum
Installation and operating instructions
25 / 56
