4.6 Installing the control unit
Select installation position taking the following into
account:
A suitable cable (three-phase current) is available.
The connecting cable from the wastewater pump and
float switch can be installed correctly and routed to the
control unit.
Take the ambient conditions into account.
Open the housing cover.
Install all fastening screws through the openings in the
corners of the control unit (1). (Drilling template included
in the scope of delivery.)

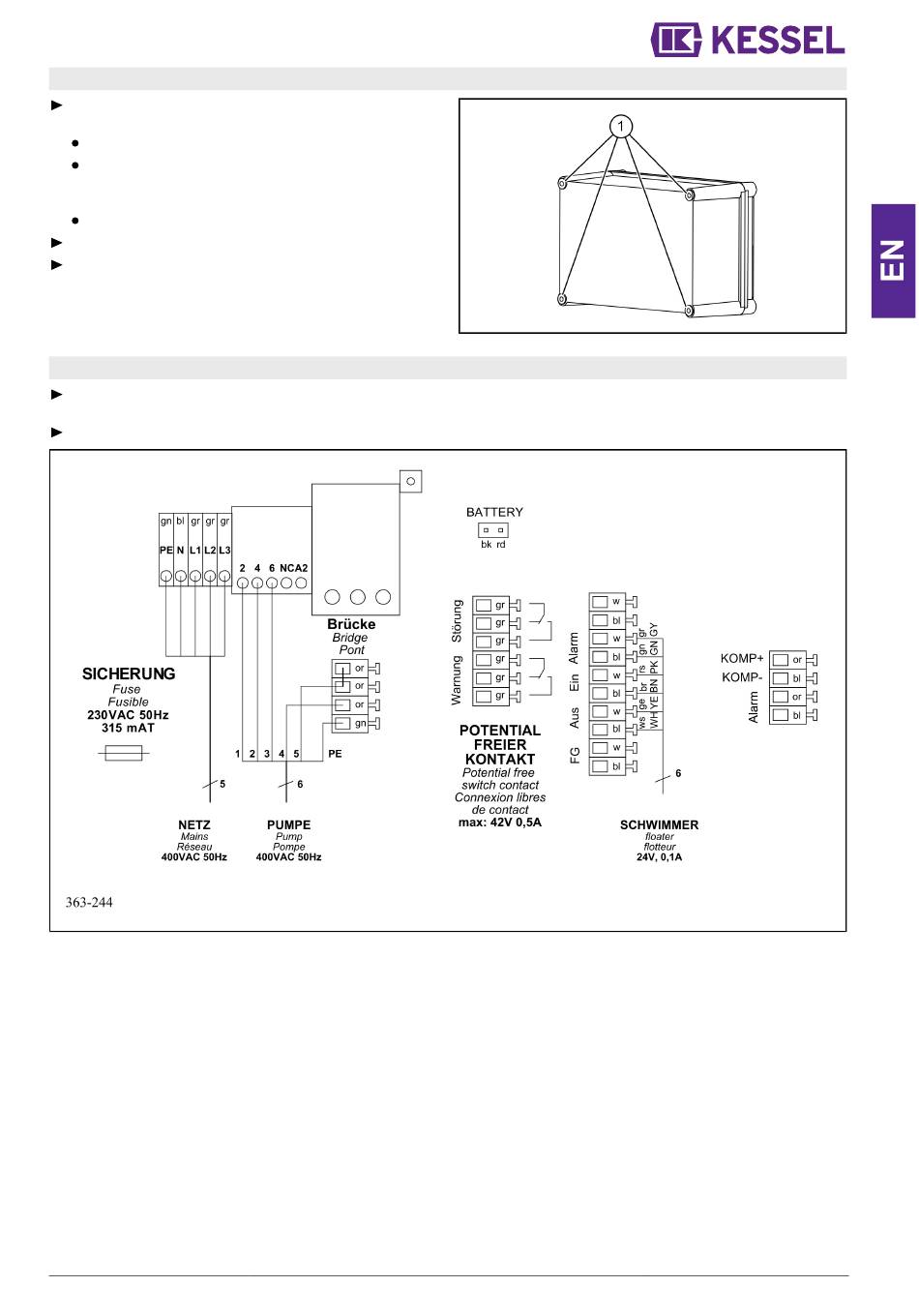

4.7 Connection diagram
Connect the mains cable and pump cable as shown on the connection diagram. Use the two cable glands M25 on the
underside of the control unit.
Connect the level detection (float switch) to the underside of the control unit by means of the cable gland.
