Step 2: Mains voltage wiring
The Energi Savr Node QS operates at 220-240 V .
Use the following instructions to wire line voltage to the
Energi Savr Node QS.
WARNING! Danger of Shock. May result in
serious injury or death. DO NOT WIRE WHEN
LIVE! Switch off power via circuit breaker or
isolator before wiring or servicing the Energi
Savr Node QS.
Buttons and LEDs on the front of the unit are used
for programming and troubleshooting. If wiring is
exposed when accessing buttons and LEDs, the
unit must be accessed by a certified electrician,
following local codes.
1. Use 1,0 mm to 4,0 mm
2
breaker rating) to feed the mains wiring. The device
draws less than 100 mA.
2. Strip 8 mm of insulation off the line voltage/mains cables.

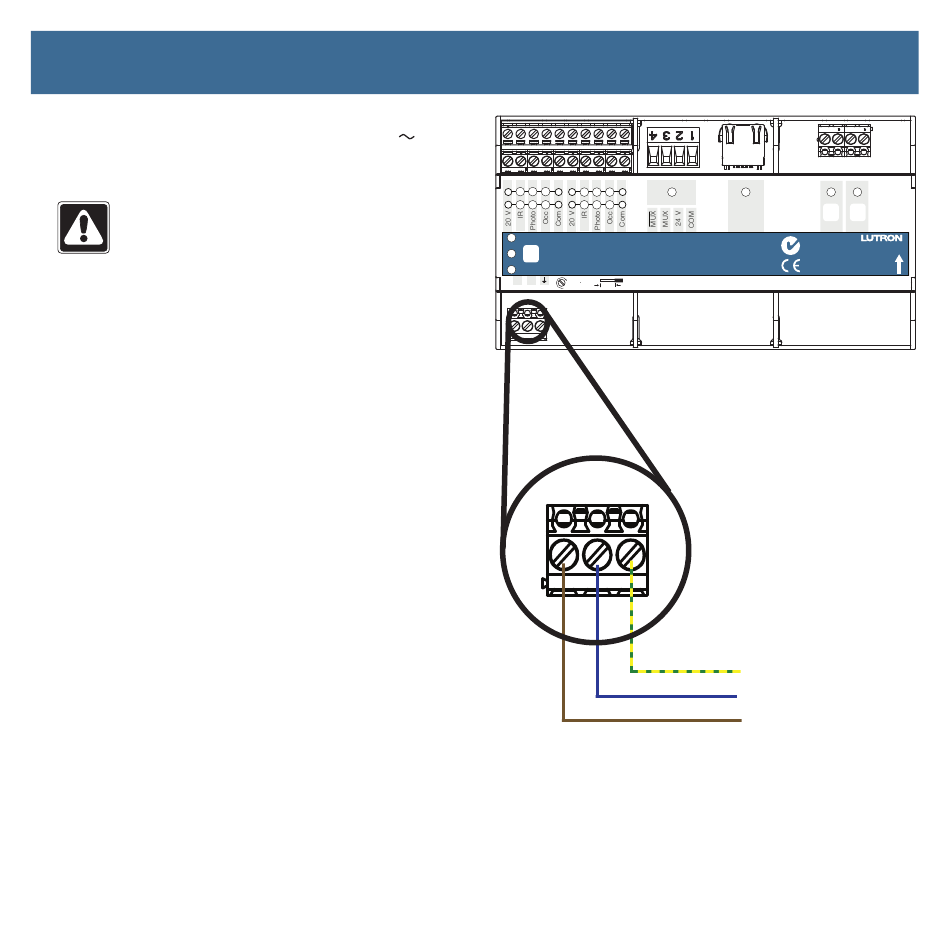

3. Wire the mains to the terminals labelled L, N, and G.
A three-position terminal block is provided. Do not wire
mains wires to the earth terminal.
4. The recommended installation torque is 0,5 N·m
4. The Energi Savr Node QS is earthed through the G
terminal. Attach the earth wire.
5. Turn on the circuit breaker or isolator to power up the
Energi Savr Node QS. The POWER indicator on the
Energi Savr Node QS will display a green light continu-
ously when properly powerd up. If the indicator does
not light, turn off power, then check the line voltage
wiring.
6. Turn power off.
Note: If additional wiring space is required, the Energi
Savr Node QS can be removed from the DIN rail while
wiring. Follow the instructions from step 1 for details.
