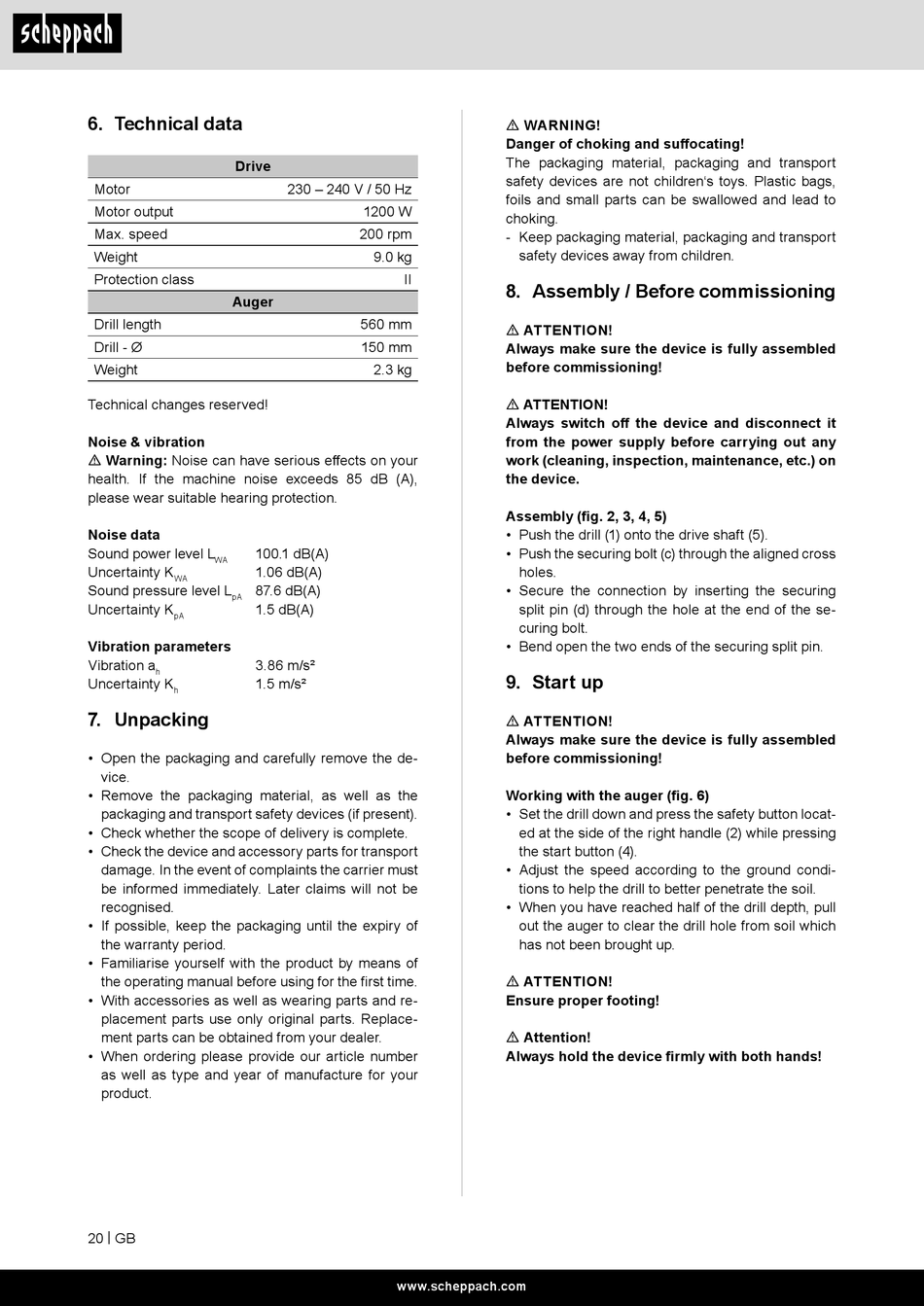

6. Technical data
Drive
Motor
Motor output
Max. speed
Weight
Protection class
Auger
Drill length
Drill - Ø
Weight
Technical changes reserved!
Noise & vibration
m Warning: Noise can have serious effects on your
health. If the machine noise exceeds 85 dB (A),
please wear suitable hearing protection.
Noise data
Sound power level L
100.1 dB(A)
WA
Uncertainty K
1.06 dB(A)
WA
Sound pressure level L
87.6 dB(A)
pA
Uncertainty K
1.5 dB(A)
pA
Vibration parameters
Vibration a
3.86 m/s²
h
Uncertainty K
1.5 m/s²
h
7. Unpacking
• Open the packaging and carefully remove the de-
vice.
• Remove the packaging material, as well as the
packaging and transport safety devices (if present).
• Check whether the scope of delivery is complete.
• Check the device and accessory parts for transport
damage. In the event of complaints the carrier must
be informed immediately. Later claims will not be
recognised.
• If possible, keep the packaging until the expiry of
the warranty period.
• Familiarise yourself with the product by means of
the operating manual before using for the first time.
• With accessories as well as wearing parts and re-
placement parts use only original parts. Replace-
ment parts can be obtained from your dealer.
• When ordering please provide our article number
as well as type and year of manufacture for your
product.
20 | GB
230 – 240 V / 50 Hz
1200 W
200 rpm
9.0 kg
II
560 mm
150 mm
2.3 kg
www.scheppach.com
m WARNING!
Danger of choking and suffocating!
The packaging material, packaging and transport
safety devices are not children's toys. Plastic bags,
foils and small parts can be swallowed and lead to
choking.
- Keep packaging material, packaging and transport
safety devices away from children.
8. Assembly / Before commissioning
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
m ATTENTION!
Always switch off the device and disconnect it
from the power supply before carrying out any
work (cleaning, inspection, maintenance, etc.) on
the device.
Assembly (fig. 2, 3, 4, 5)
• Push the drill (1) onto the drive shaft (5).
• Push the securing bolt (c) through the aligned cross
holes.
• Secure the connection by inserting the securing
split pin (d) through the hole at the end of the se-
curing bolt.
• Bend open the two ends of the securing split pin.
9. Start up
m ATTENTION!
Always make sure the device is fully assembled
before commissioning!
Working with the auger (fig. 6)
• Set the drill down and press the safety button locat-
ed at the side of the right handle (2) while pressing
the start button (4).
• Adjust the speed according to the ground condi-
tions to help the drill to better penetrate the soil.
• When you have reached half of the drill depth, pull
out the auger to clear the drill hole from soil which
has not been brought up.
m ATTENTION!
Ensure proper footing!
m Attention!
Always hold the device firmly with both hands!
