Elektrische Installation
5
Kabelführung und Kabelschirmung
Kabelführung Ausführung MMF1.
46
Betriebsanleitung – MOVIMOT

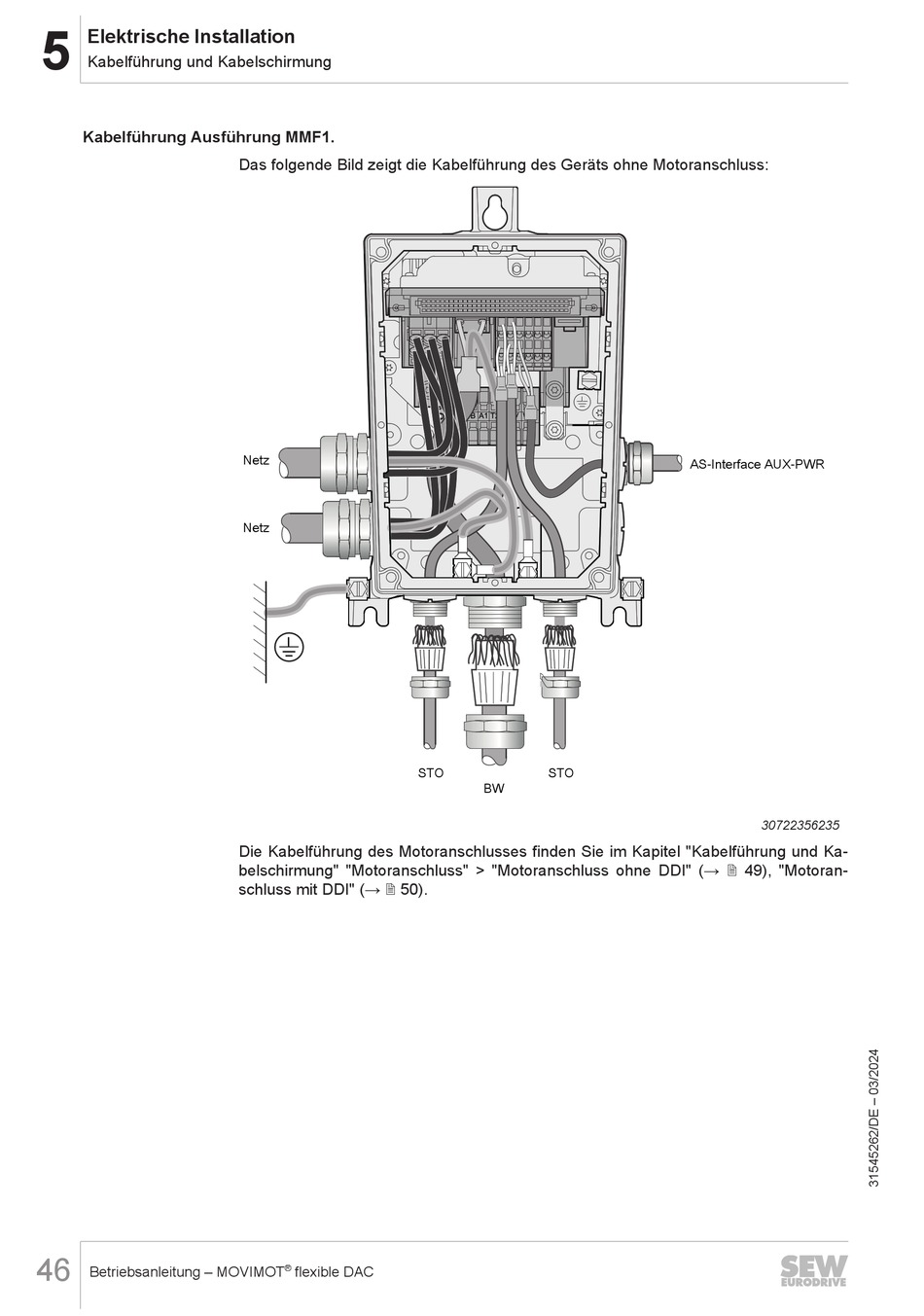

Das folgende Bild zeigt die Kabelführung des Geräts ohne Motoranschluss:
Netz
Netz
Die Kabelführung des Motoranschlusses finden Sie im Kapitel "Kabelführung und Ka-
belschirmung" "Motoranschluss" > "Motoranschluss ohne DDI" (→ 2 49), "Motoran-
schluss mit DDI" (→ 2 50).
®
flexible DAC
D C B A1 T2 U V W
STO
STO
BW
AS-Interface AUX-PWR
30722356235
