Changing feed
roller on swivel-
lever side

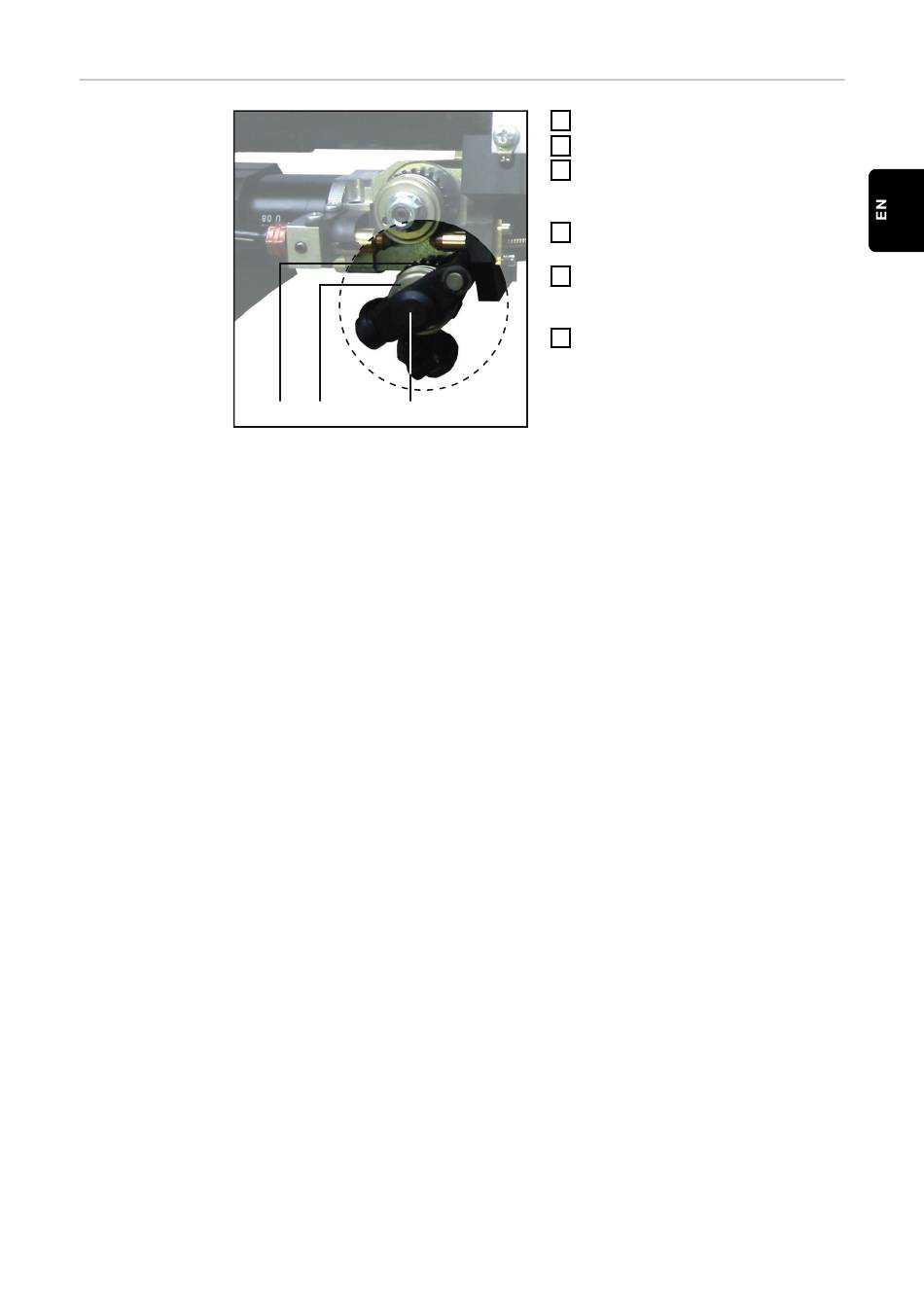

Changing feed roller on swivel-lever side

(22) (19) (21)
Push up swivel lever (16)
1
Remove screw-on axle (21)
2
Remove drive wheel on swivel-lever
3
side (22) with existing feed roller
(19)
Place new feed roller (19 ) on drive
4
wheel (swivel lever side) (22)
Insert new feed roller and swivel-
5
lever side drive wheel (19)+(22) in
the swivel lever (16)
Fix new feed roller and swivel-lever
6
side drive wheel (19) + (22) using
the the screw-on axle (21)
