Retooling for other wire diameters

Changing inlet/
outlet nozzles
and motor-side
feed rollers
1
2
3
4
5
6
7
8
9
10
11
42
(20)
(16)

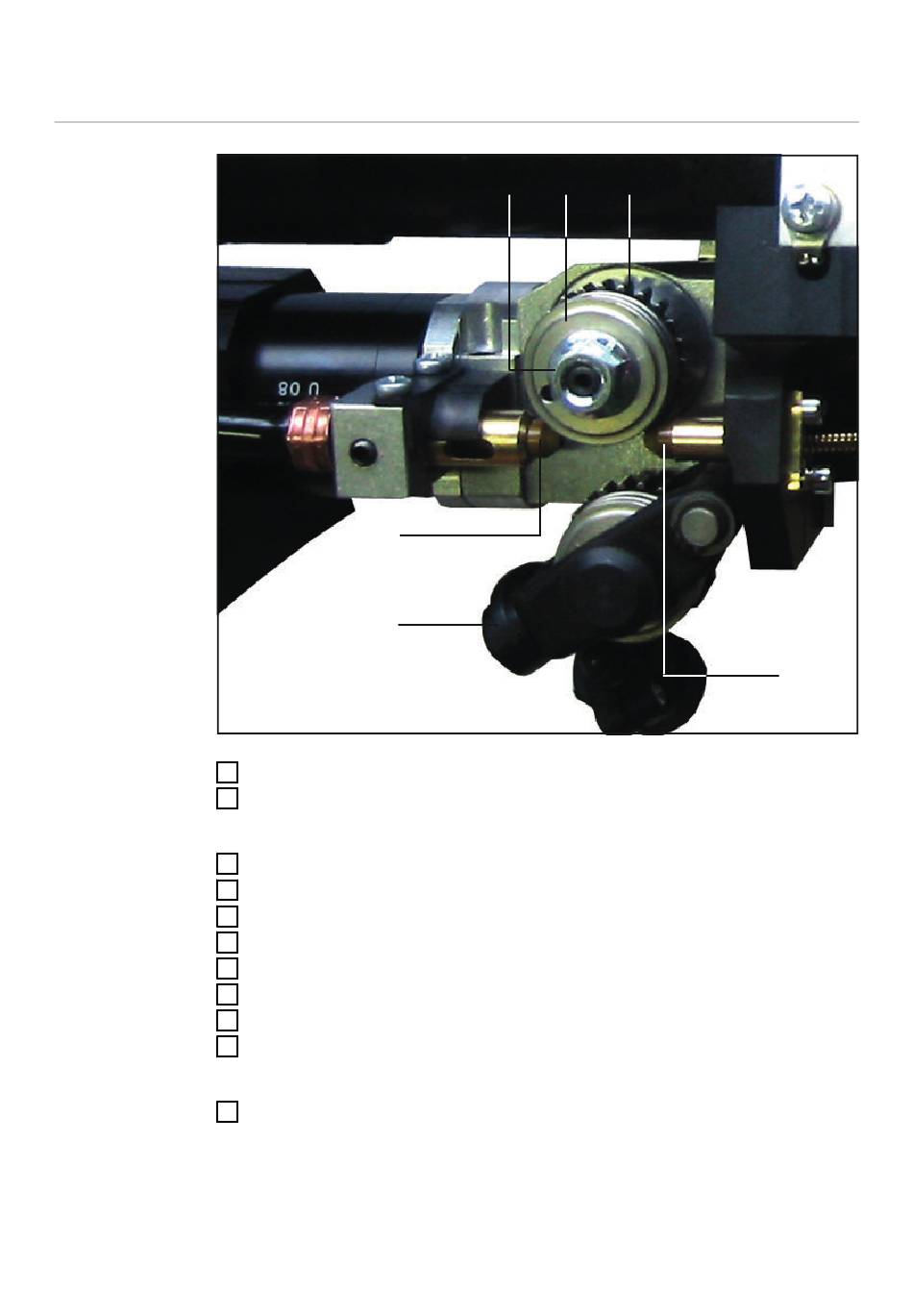

Push up swivel lever (16)
Release self-locking nut (17) using the 10 mm open-end spanner (0,39 in.)
(keep steady by using the pinion spanner applied to the motor-side drive
wheel (18))
Remove existing feed roller (19)
Remove motor-side drive wheel (18)
Unscrew existing inlet/outlet nozzles (19) using the long-nose pliers
Screw on new inlet/outlet nozzles (20) and tighten with long-nose pliers
Replace motor-side drive wheel (18)
Fit new feed roller (19)
Apply self-locking nut (17)
Tighten self-locking nut using 10mm open-end spanner (0,39 in.) (keep
steady by using the pinion spanner applied to the motor-side drive wheel
(18))
Close swivel lever (16)
