Variant 1: Inner Liner With Second Inlet/Outlet Nozzle (Standard); Variant 2: Inner Liner Without Second Inlet/Outlet Nozzle (Optional) - Fronius Robacta KD Drive Bedienungsanleitung

Variant 1: Inner The following steps apply only to inner liners with inlet/outlet nozzles on the cen-
liner with second
tral connector side.
inlet/outlet
nozzle (stan-
NOTE!
dard)
Danger of damage to thread. Clean tensioner and nut before assembly.

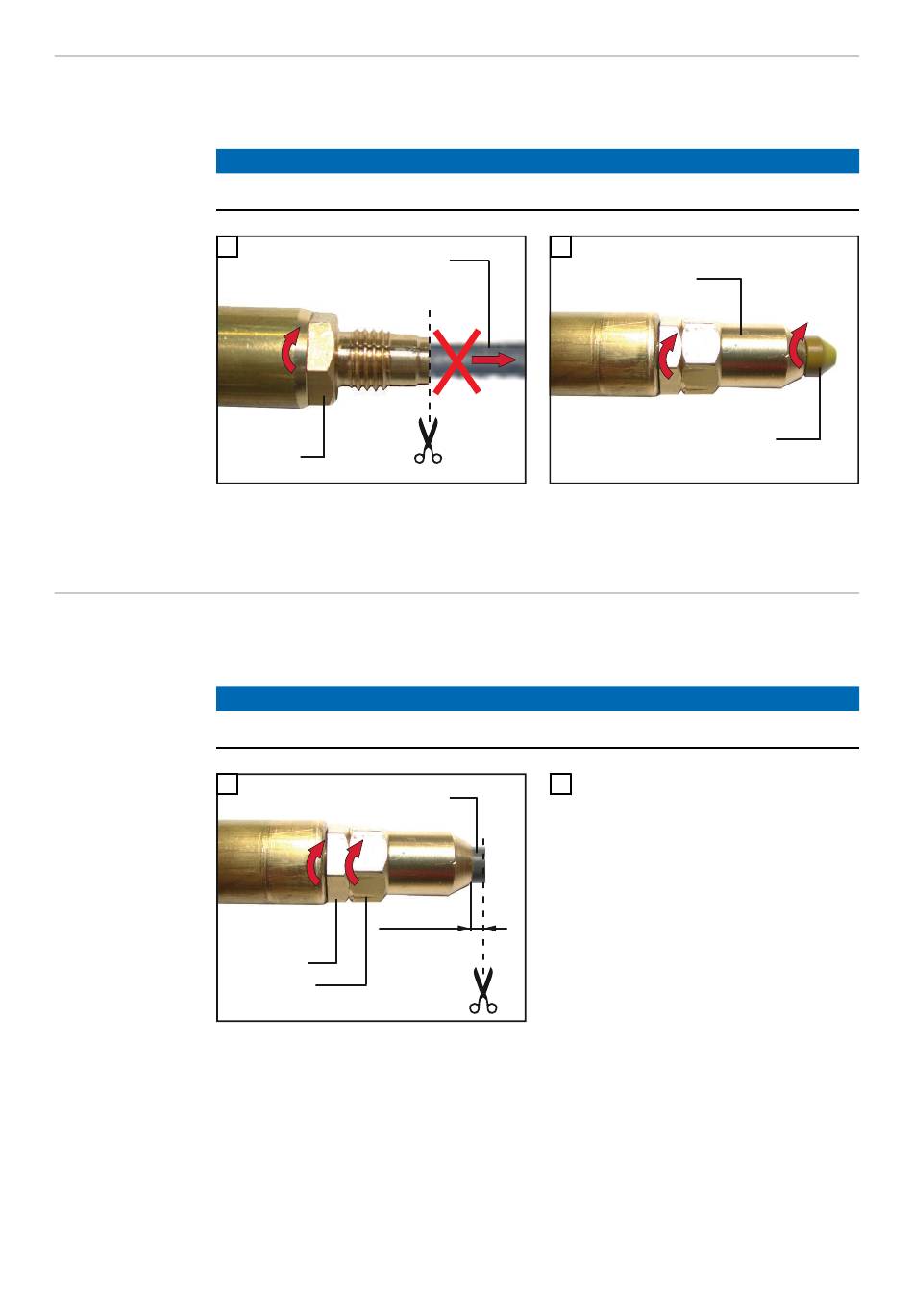

1
Screw on central connector-side clamp tightly,
cut inner liner flush with clamp
Variant 2: Inner
The following steps apply only to inner liners without inlet/outlet jets on the cen-
liner without se- tral connector side.
cond inlet/outlet
nozzle (optional)
NOTE!
Danger of damage to thread. Clean tensioner and nut before assembly.
1
Screw on central connector-side nut and tensio-
ner tightly, cut off inner liner allowing a projec-
tion of 1 to 2 mm (0,04 - 0,08 in.) from the nut.
46
Inner liner
Tensioner
Inner liner
1 - 2 mm
0,4 - 0,8 in.
Tensioner
Nut
2
Nut
Inlet/outlet nozzle
Screw on central connector-side nut tightly. If a
change is made to the wire diameter, unscrew
existing inlet/outlet nozzle with long nose pliers -
fully tighten the correct inlet/outlet nozzle on
the nut.
2
