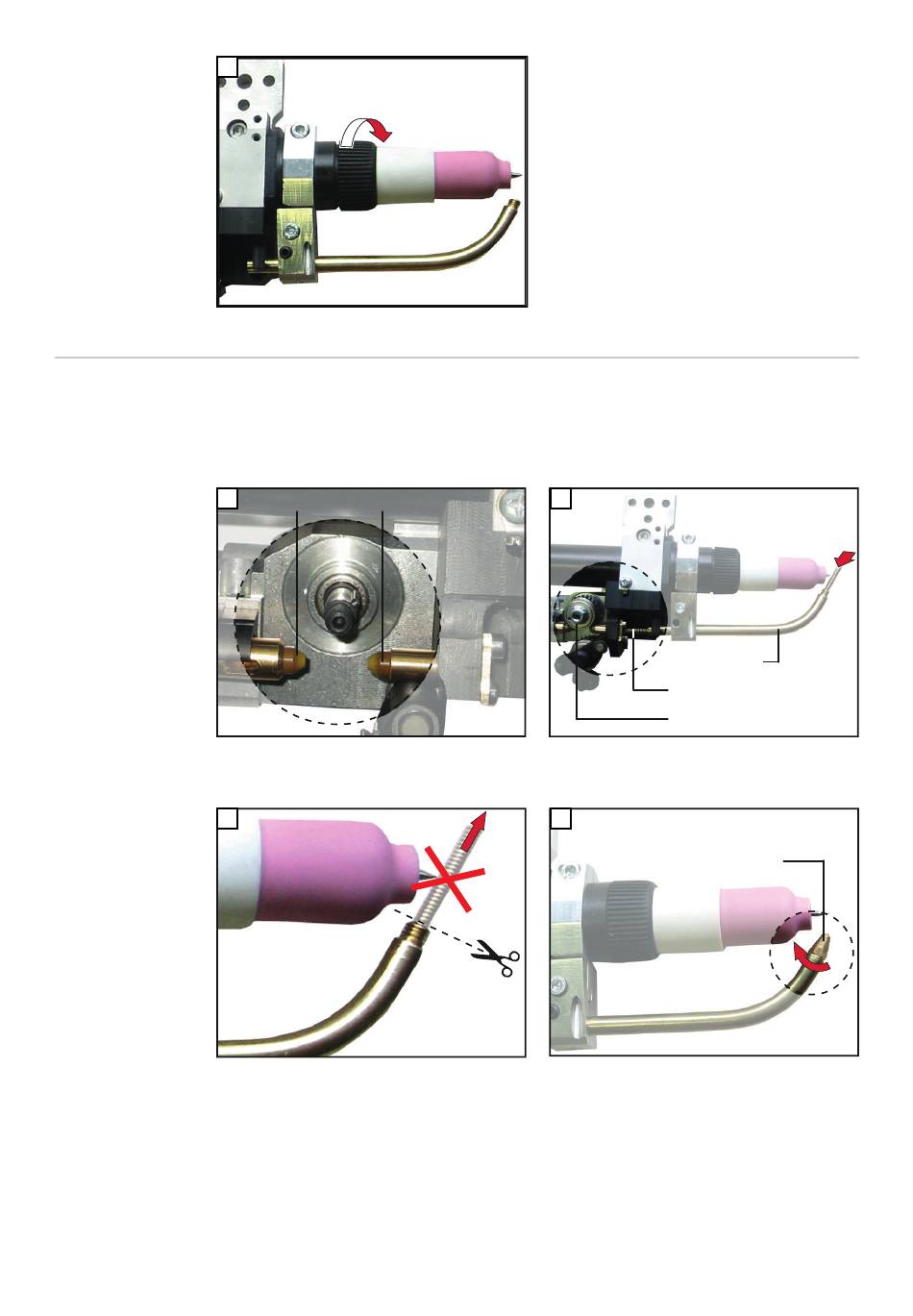

Screw on the torch head
Fitting original To fit the original equipment, as well as the tools supplied, the following tools are
equipment required:
-
-
1
Remove motor-side drive wheel and feed roller,
screw on inlet/outlet nozzle and secure with the
long-nose pliers (2x)
1
Using the side shears cut off the wire guidance
unit flush with the thread on the feed pipe.
32
long-nose pliers
side shears
Inlet/outlet nozzle
2
Zuführungsrohr
Drahtführungseinsatz
Antriebsrad, Förderrolle
Refit the motor-side drive wheel and feed roller,
push on wire guidance unit as far as it will go in-
to the feed pipe.
2
Wire outlet nozzle
Screw the wire outlet nozzle on to the feed pipe.
