Connecting The Robacta Kd Drive - F++-Connector; Adapter Solutions - Fronius Robacta KD Drive Bedienungsanleitung

Connecting the
Robacta KD Dri-
ve - F++-connec-
tor
Adapter soluti-

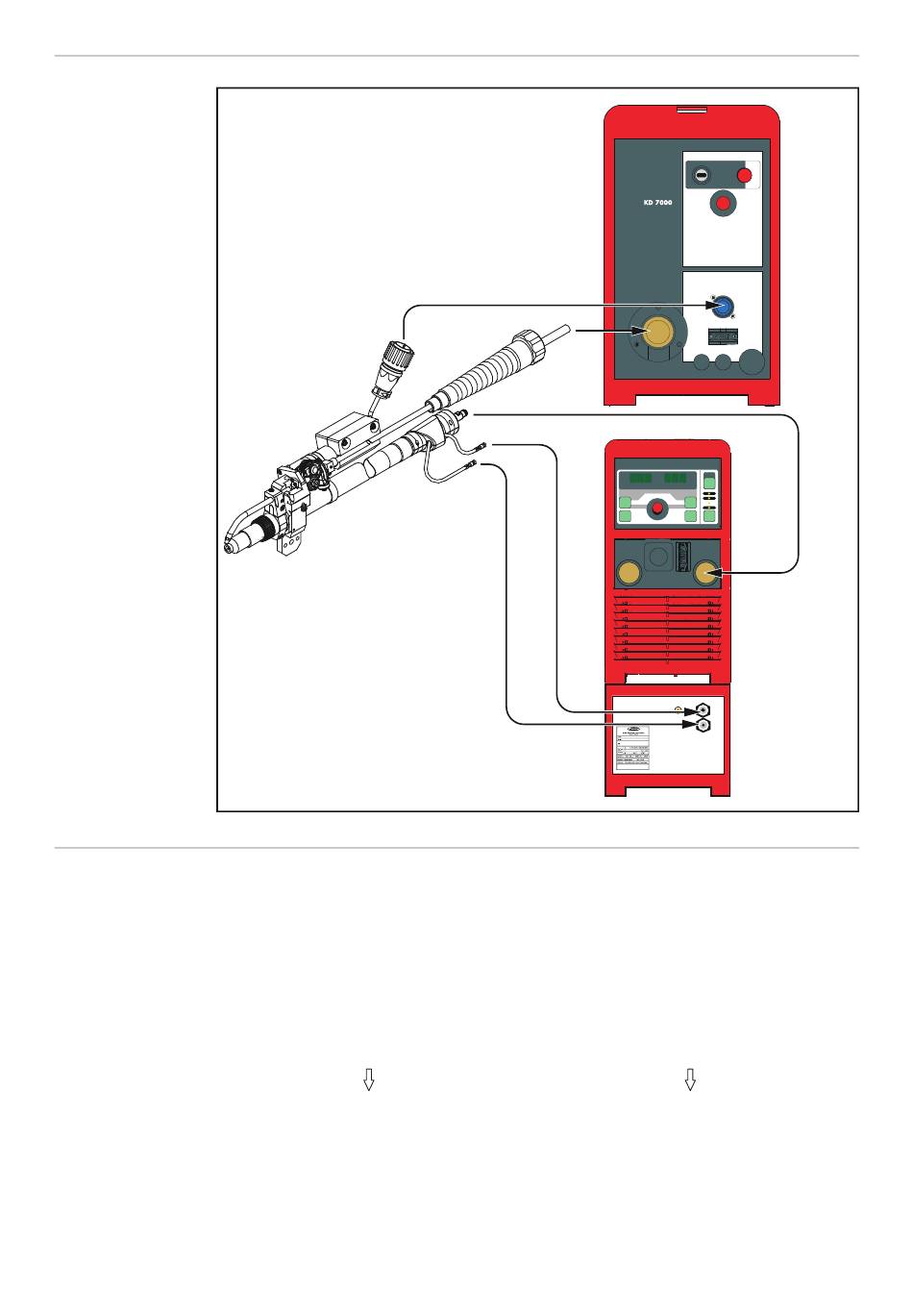

By selecting the correct adapter, the TIG Robacta KD Drive robot hosepack with
ons a Z connector can also operated on Active-Wave power sources or with F++-con-
nector also on other Fronius-TIG-power sources:
34
Robacta
KD Drive
Hosepack with
F++ connector
Robacta KD Drive with Z-connector
+
Adapter TT/MW (G/F) water-cooled
34,0350,2210
„ActiveWave"
MagicWave 1700
MagicWave 2200
TransTig 2200
FK 2200
KD 7000
Robacta KD Drive with F++-connector
+
Adapter WIG TTW water-cooled
34,0350,2159
MagicWave 2600 / 2600 CEL / 3000
TransTig 2600 / 2600 CEL / 3000
„ActiveWave"
MagicWave 1700
MagicWave 2200
TransTig 2200
FK 2200
