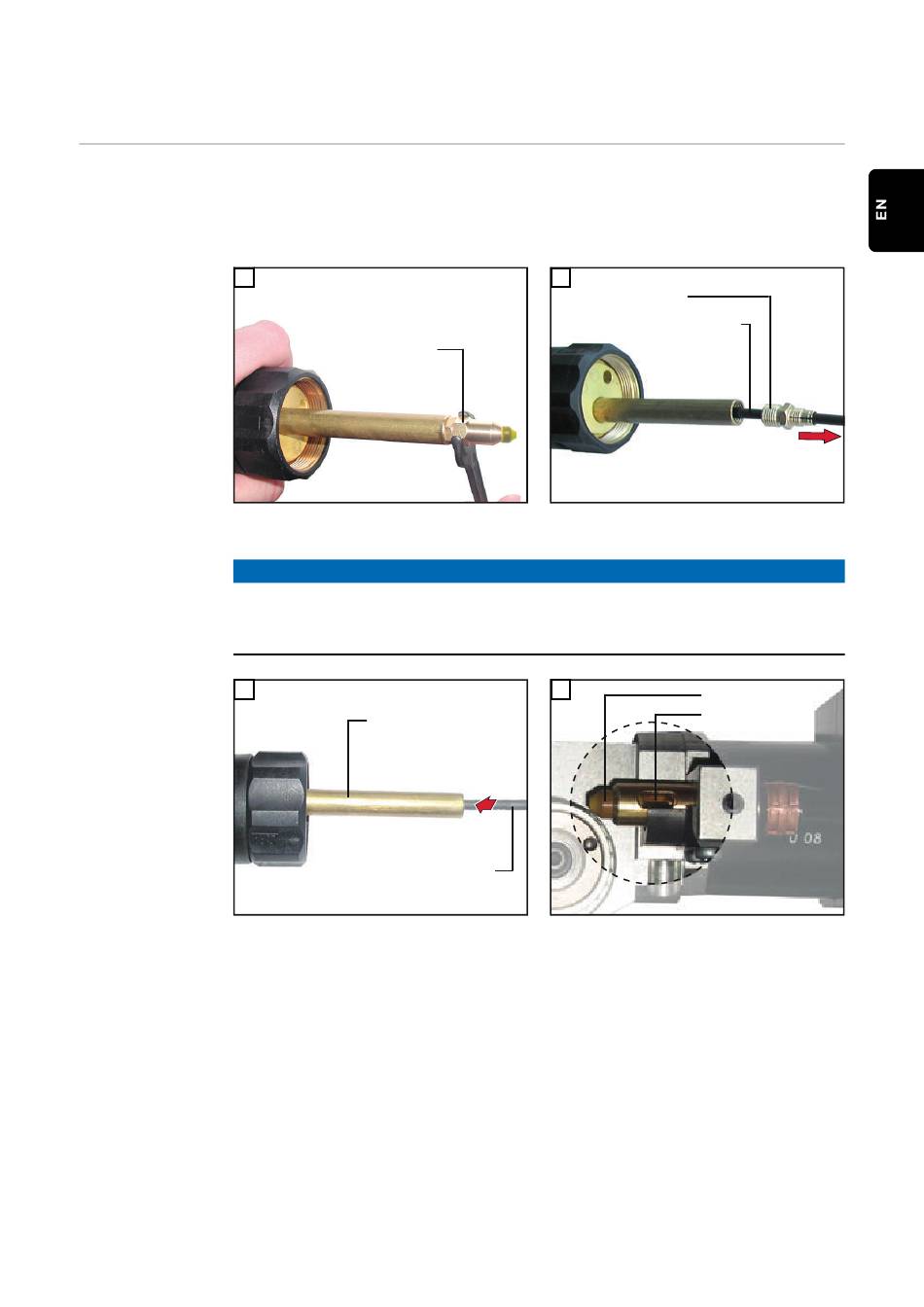

Fitting / replacing inner liner

Dismantling the To replace/fit the inner liner, as well as the supplied tools, the following tools are
inner liner
required:
-
-
1
Release the nut on the central connector side
NOTE!
Risk of buckling the liner. Before insertion, ensure the hosepack is straight. If
any resistance becomes perceptible, only push the inner liner close to the wire
inlet tube.
3
Insert the new inner liner carefully, ...
Long-nose pliers
Side shears
Nut
Wire inlet tube
Inner liner
2
Tensioner
Inner liner
Release the tensioner on the central connector
side, and remove existing inner liner
4
Inlet/outlet nozzle
Viewing window
... so that the inner liner touches the inlet/outlet
nozzle (as seen through the viewing window)
