Panasonic WH-SDC0309K3E5 Installationshandbuch Seite 26

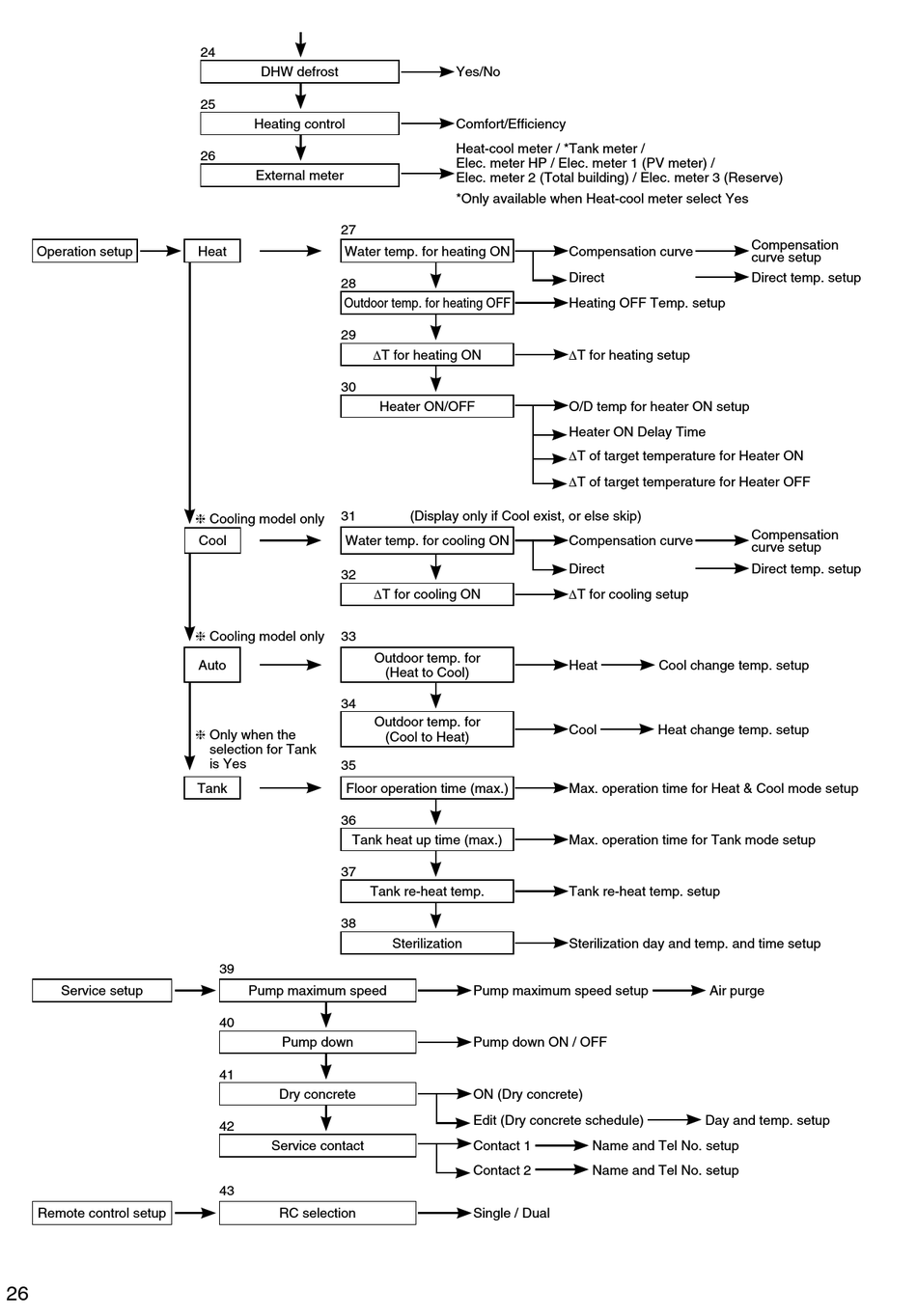

Operation setup
Service setup
Remote control setup
26
24
DHW defrost
25
Heating control
26
External meter
27
Heat Water temp. for heating ON
28
Outdoor temp. for heating OFF
29
30
31
Cooling model only
Cool Water temp. for cooling ON
32
Cooling model only
33
Auto
34
 O nly when the
selection for Tank
is Yes
35
Tank Floor operation time (max.)
36
Tank heat up time (max.)
37
38
39
Pump maximum speed
40
Pump down
41
Dry concrete
42
Service contact
43
RC selection
Yes/No
Comfort/Effi ciency
Heat-cool meter / *Tank meter /
Elec. meter HP / Elec. meter 1 (PV meter) /
Elec. meter 2 (Total building) / Elec. meter 3 (Reserve)
*Only available when Heat-cool meter select Yes
T for heating ON
Heater ON/OFF
(Display only if Cool exist, or else skip)
T for cooling ON
Outdoor temp. for
(Heat to Cool)
Outdoor temp. for
(Cool to Heat)
Tank re-heat temp.
Sterilization
Pump maximum speed setup
Pump down ON / OFF
ON (Dry concrete)
Edit (Dry concrete schedule)
Contact 1
Contact 2
Single / Dual
Compensation curve
Direct
Heating OFF Temp. setup
T for heating setup
O/D temp for heater ON setup
Heater ON Delay Time
T of target temperature for Heater ON
T of target temperature for Heater OFF
Compensation curve
Direct
T for cooling setup
Heat Cool change temp. setup
Cool Heat change temp. setup
Max. operation time for Heat & Cool mode setup
Max. operation time for Tank mode setup
Tank re-heat temp. setup
Sterilization day and temp. and time setup
Air purge
Day and temp. setup
Name and Tel No. setup
Name and Tel No. setup
Compensation
curve setup
Direct temp. setup
Compensation
curve setup
Direct temp. setup
