Troubleshooting
8.5 Changing the contact pressure of the
feed rollers
The adjustment screw for the contact pressure (Figure 8.4)
is located on the front of the machine.
Allen key 4.0 mm

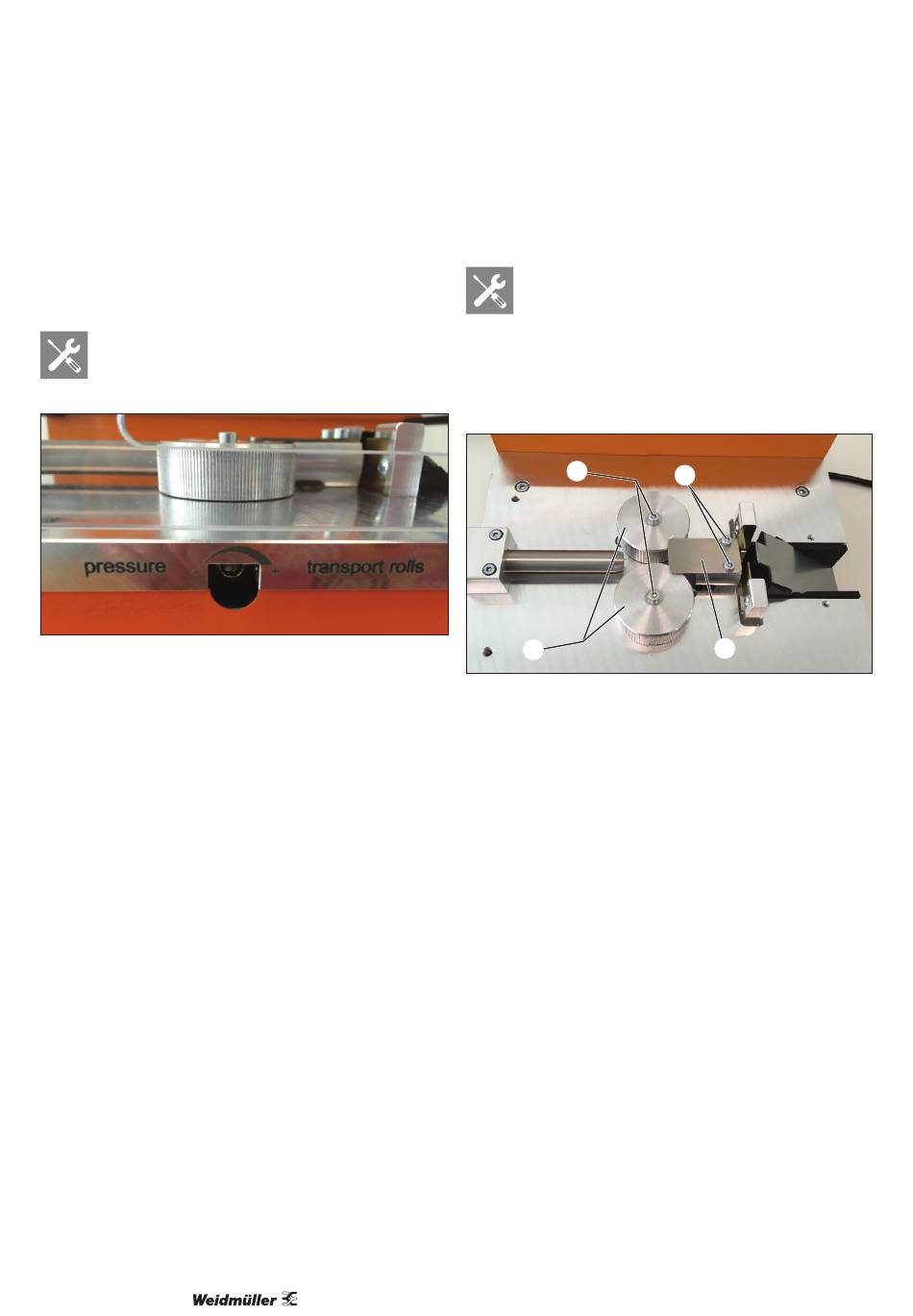

Figure 8.4 Adjusting screw for contact pressure
► To increase the contact pressure, turn the adjustment
screw clockwise.
► To decrease the contact pressure, turn the adjustment
screw anticlockwise.
52
8.6 Renew feed rollers
Allen key 3.0 mm
► Make sure that the machine is de-energised (see chap-
ter 8.3).
► Have a container ready for the mounting screws.
► Dismantle the protective cover.
3
4
Figure 8.5 Renew feed rollers
► Remove the fixing screws (Figure 8.5, 1)
► Remove the cover plate (Figure 8.5, 2).
► Remove the fixing screws (Figure 8.5, 3)
► Remove the feed rollers (Figure 8.5, 4) and put on the
new rollers.
► Screw both feed rollers tight.
► Refit the cover plate (Figure 8.5, 2).
► Refit the protective cover.
1
2
2819930000/02/06.2022
