3 Device description
1
2
3
4

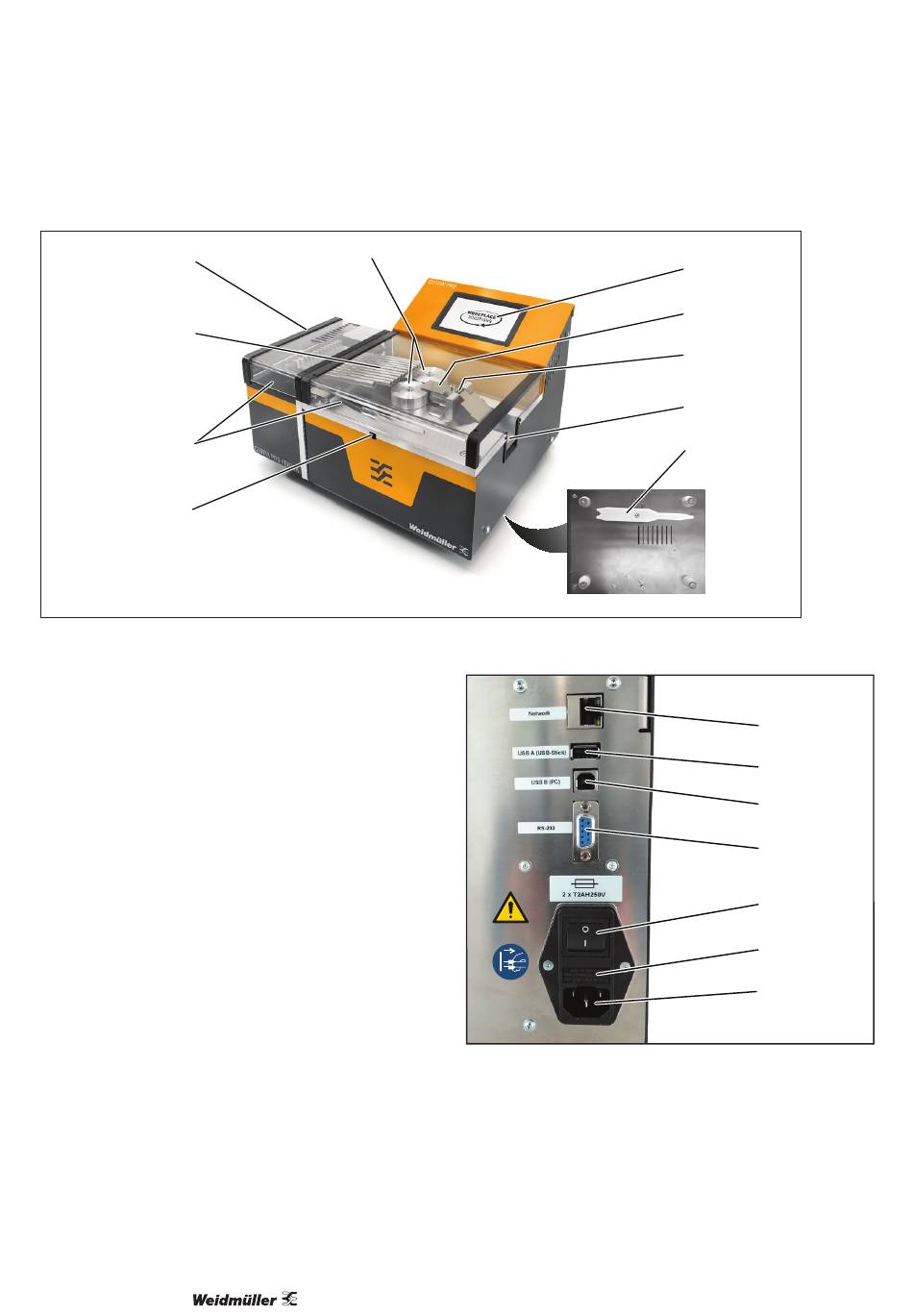

Figure 3.1 Front view
1 Multiple feeder
2 Wire feeding tubes (slots)
3 Protective covers of machine and feeder
4 Adjusting wheel for contact pressure of the feed rollers
5 Feed rollers
6 Operating unit with touch display
7 Cover plate
8 Cutting blade
9 Slide
10 Tool
11 Ethernet
12 USB type A (USB stick)
13 USB type B (PC)
14 RS-232
15 On/off switch
16 Fuse compartment
17 Mains connection socket
32
5
Figure 3.2 Rear view
6
7
8
9
10
11
12
13
14
15
16
17
