Setting up the machine
► Enter the cross section value of the inserted wire.
The window is closed.
► Load the other feeding tubes in the same way.
As soon as the feeder is completely loaded, you can start
operating.
5.19 Setting the feeder
ATTENTION
The machine can be damaged!
Wrong settings can cause damage and failure.
► Contact the Weidmüller Service, before changing the
feeder settings.
► Open the menu Settings.
► Open the menu Settings Feeder.
► Open the menu Feeder.

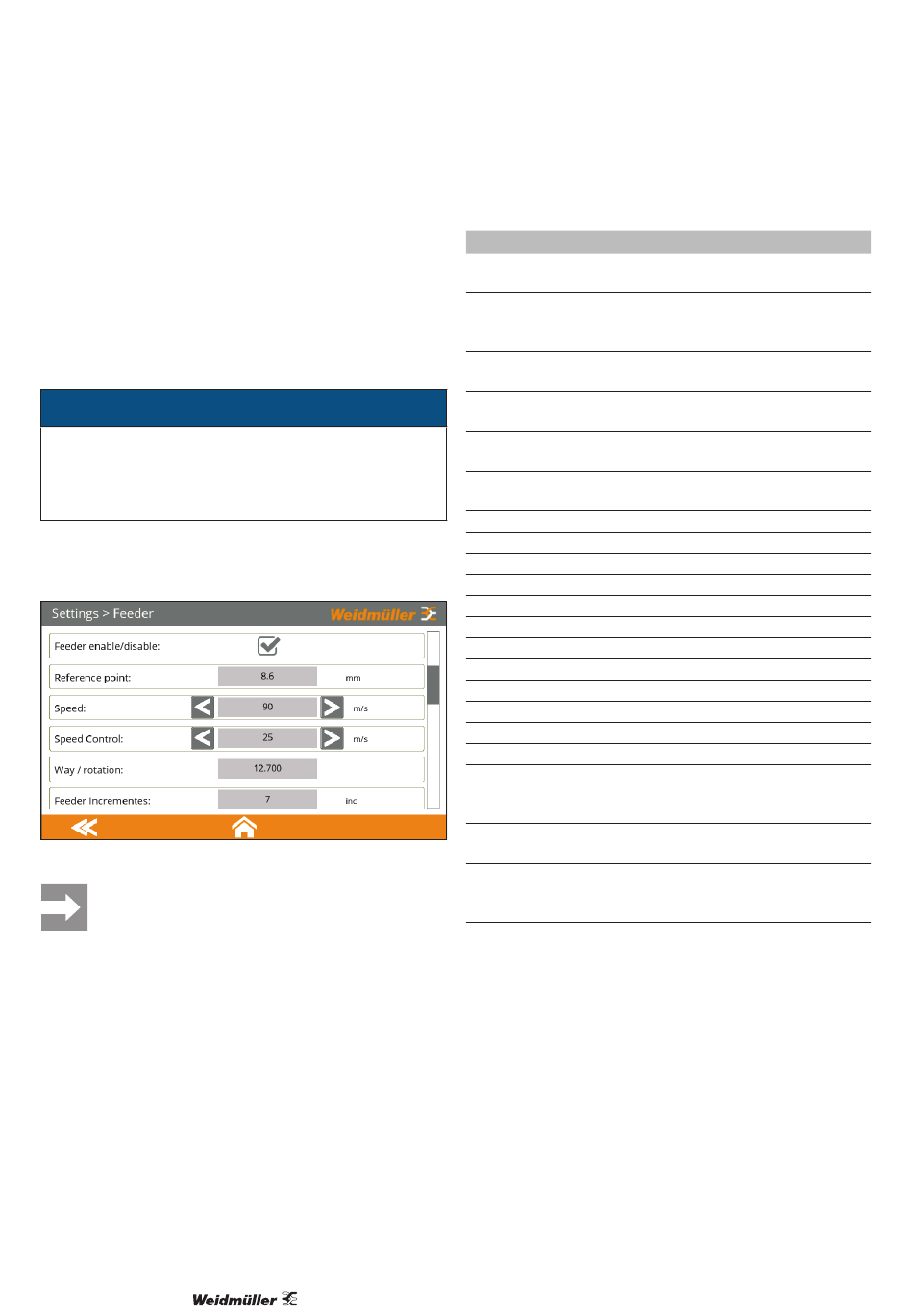

Figure 5.20 Menu Settings/Feeder
All settings featured with arrows can be changed
by the Setter. All other settings can only be
changed by the Service.
The reference point (0 mm) is defined for calibrating the
lateral movement of the feeder. Slot 1 starts with 0 mm, the
distance of the other slots from the reference point on de-
livery is listed in the table. If neccessary, the distances can
be adjusted by the Service.
44
Parameter
Meaning
Feeder enable/
A connected feeder ist only active if the tick
disable
is set.
Reference point
Defining a new reference point for the
feeder calibration. Distance from the old
reference point in millimeter
Speed
Maximum speed for the lateral movement
of the feeder in meter per second
Speed control
Standard speed for the lateral movement
of the feeder in meter per second
Way / Motor rotation Path length that the feeder procedes with
one motor rotation in millimeter
Feeder increments
Number of increments for a complete 360°
rotation of the feeder motor.
Slot 1
0 mm
Slot 2
7,4 mm
Slot 3
14,9 mm
Slot 4
22,3 mm
Slot 5
29,7 mm
Slot 6
37,2 mm
Slot 7
44,5 mm
Slot 8
52,0 mm
Slot 9
59,2 mm
Slot 10
66,7 mm
Slot 11
74,3 mm
Slot 12
82,0 mm
Load backwards
Length of the backwards movement the
wire procedes after the cut, before the next
wire is loaded.
Brake close
Contact pressure of the feeder brake in
whole steps
Reference cycles
Number of feeder cycles before the feeder
moves back to the reference point for
calibration
