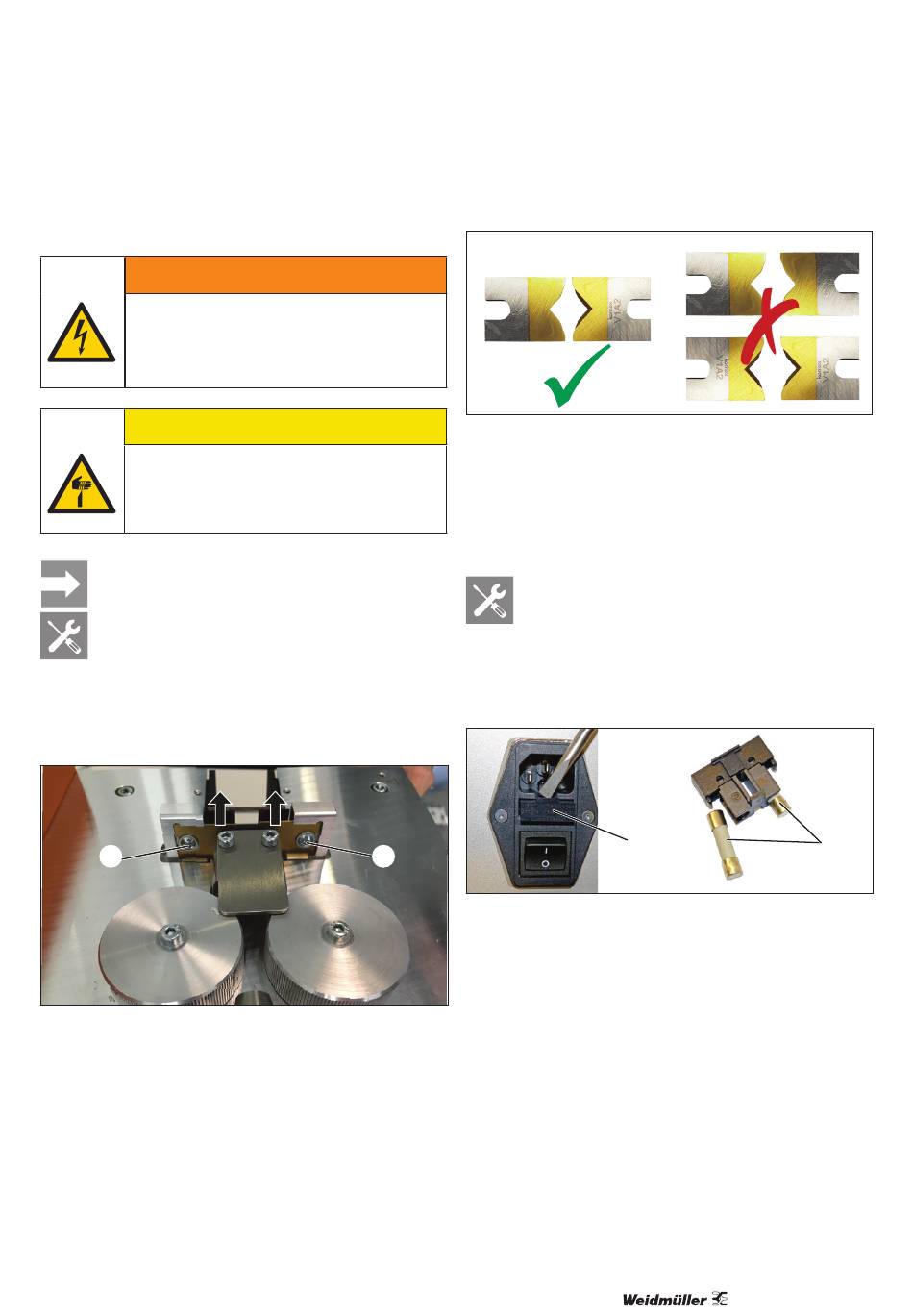

8.3 Replacing cutting blades

Risk of death due to electric shock!
► Switch off the machine.
► Disconnect the mains plug from the mains
socket to de-energise the machine.
Danger of injury from sharp blades!
► Use tweezers to change the blades.
► Dispose of the removed blades in a sepa-
rate container.
All existing blades must be replaced each time
the blades are changed.
Allen key 2.5 mm
► Make sure that the machine is de-energised (see chap-
ter 7.1).
► Dismantle the protective cover.
1
Figure 8.1 Cutting blades
► Loosen the fixing screws (Figure 8.1, 1).
► Remove both blades (Figure 8.1, 2) with tweezers.
► Align the new blades so that the bevelled edges face
away from each other.
2819930000/02/06.2022
WARNING
CAUTION
1
Figure 8.2 Aligning the blades
► Insert the new blades.
► Tighten both mounting screws (Figure 8.1, 1) again.
► Refit the protective cover.

8.4 Replacing the fuses

Slotted screwdriver 3.0 mm
► Make sure that the machine is de-energised (see chap-
ter 8.3).
► Remove the mains plug.
1
Figure 8.3 Fuses
► Lever the fuse compartment (Figure 8.3, 1) out of the
mains filter unit with a flat-blade screwdriver.
► Replace both fuses (Figure 8.3, 2) with new ones (2 x
T2AH250V).
► Put the fuse box back into the mains filter unit.
