Setting up the machine
5.14 Adjusting the motor
With this menu you can adjust the behaviour and the
speed of the motors.
► Open the menu Settings.
► Open the menu General settings
► Tap Motor.

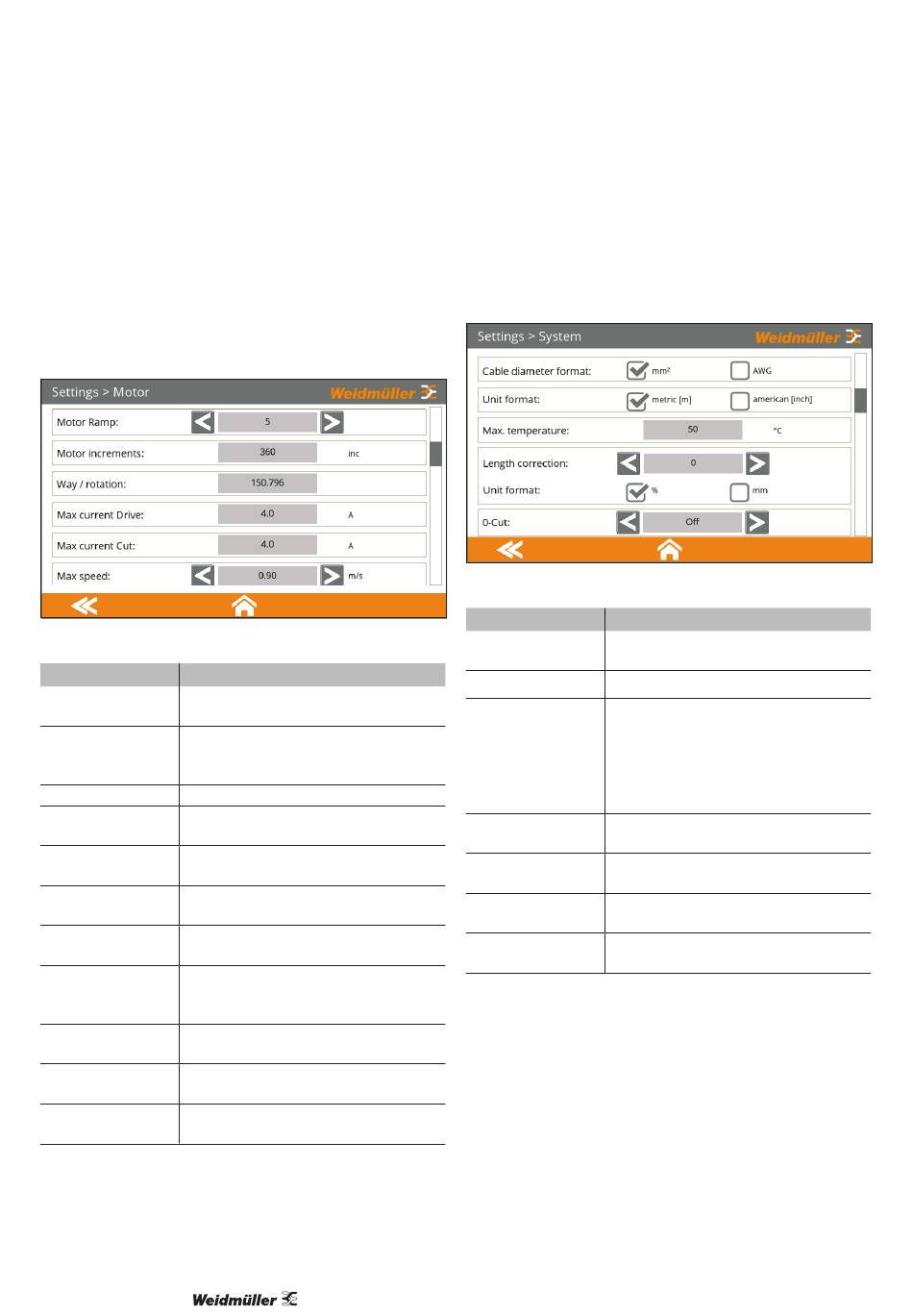

Figure 5.16 Menu General settings/Motor
Parameter
Meaning
Motor ramp
Acceleration of the roller motor on start.
Adjustable from 1 (slow) to 10 (quick)
Motor increments
Number of increments for one rotation of
the rollers by 360°. Adjustable in whole
numbers.
Way / rotation
Roller circumference in mm
Max. current drive
Maximum current for the roller motor drive
in Amps
Max. current cut
Maximum current for the cutting motor in
Amps
Max. speed
Maximum speed of the roller motor in
meter per second
Min. speed
Minimum speed of the roller motor in
meter per second
Control speed
Desired speed of the roller motor when
calibrating the wire position in meter per
second
Speed roll up/down Speed for opening and closing the rollers
in meter per second
Accuracy
Accuracy tolerance for the speed of the
roller motor
Load forwards
Length that the loaded wire shall extend
the marking between the feed rollers in mm
42
5.15 Changing the system settings
► Open the menu Settings.
► Open the menu General settings
► Open the menu System.
Figure 5.17 Menu General settings/System
Parameter
Meaning
Cable diameter
Format for the wire cross-section value
format
(mm
2
Unit format
Format for length values (metric or Inch)
Max. temperature
Maximum tolerable ambient temperature
in °C. The automat switches off when
reaching the temperature. As soon as the
temperature is 5 degrees below the set
temperature, a warning is shown on the
display.
Length correction
Reducing or increasing the wire length
correction
Unit format
Format for the length correction (in percent
or mm)
0-Cut
Additional zero cut at the beginning of a
cutting job (On or Off)
Start after Feeder
On: The process starts automatically.
change
Off: The process must be started manually.
or AWG)
2819930000/02/06.2022
