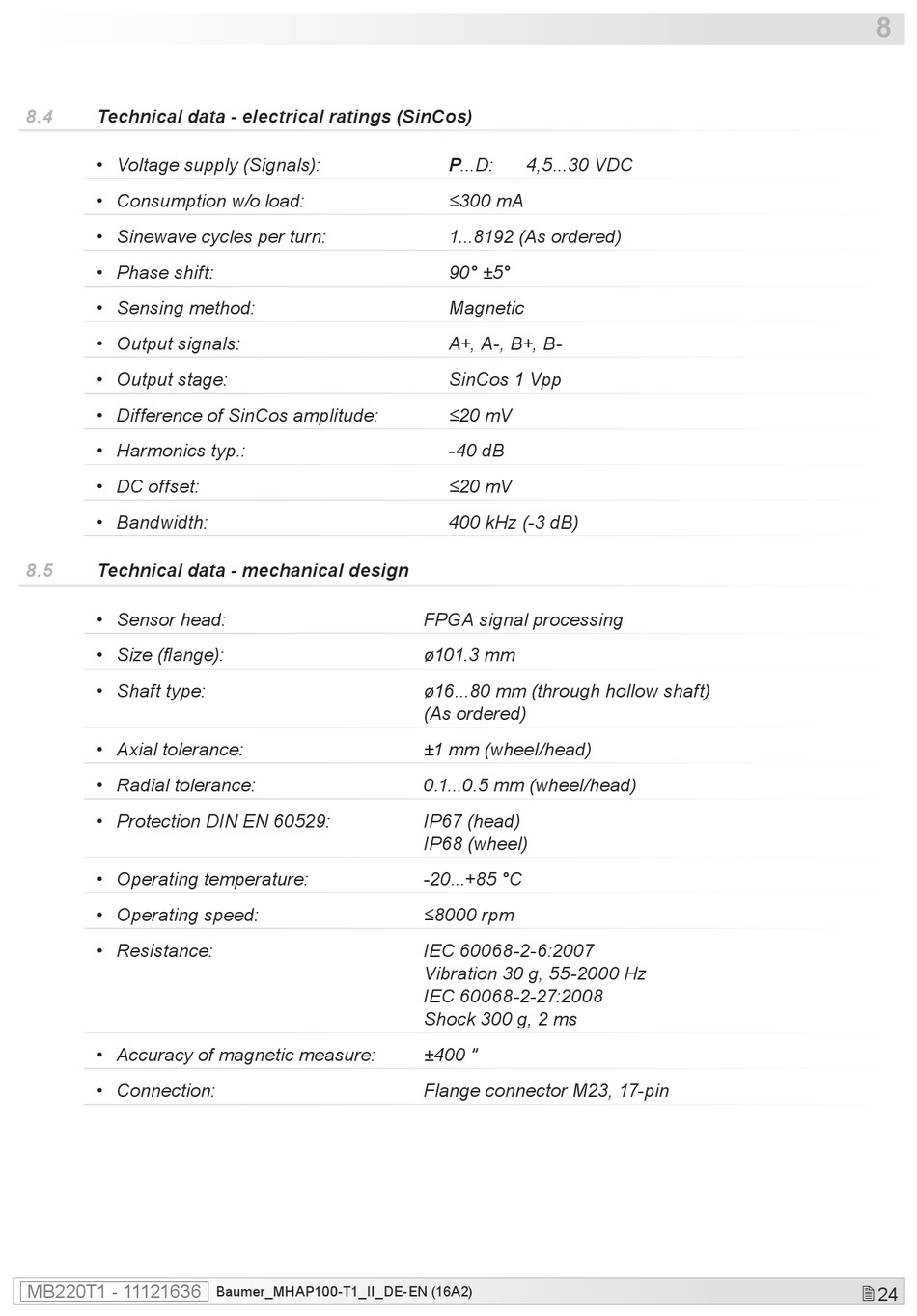

8.4

Technical data - electrical ratings (SinCos)

• Voltage supply (Signals):
• Consumption w/o load:
• Sinewave cycles per turn:
• Phase shift:
• Sensing method:
• Output signals:
• Output stage:
• Difference of SinCos amplitude:
• Harmonics typ.:
• DC offset:
• Bandwidth:
8.5

Technical data - mechanical design

• Sensor head:
• Size (flange):
• Shaft type:
• Axial tolerance:
• Radial tolerance:
• Protection DIN EN 60529:
• Operating temperature:
• Operating speed:
• Resistance:
• Accuracy of magnetic measure:
• Connection:
MB220T1 - 11121636
Baumer_MHAP100-T1_II_DE-EN (16A2)
P...D:
4,5...30 VDC
≤300 mA
1...8192 (As ordered)
90° ±5°
Magnetic
A+, A-, B+, B-
SinCos 1 Vpp
≤20 mV
-40 dB
≤20 mV
400 kHz (-3 dB)
FPGA signal processing
ø101.3 mm
ø16...80 mm (through hollow shaft)
(As ordered)
±1 mm (wheel/head)
0.1...0.5 mm (wheel/head)
IP67 (head)
IP68 (wheel)
-20...+85 °C
≤8000 rpm
IEC 60068-2-6:2007
Vibration 30 g, 55-2000 Hz
IEC 60068-2-27:2008
Shock 300 g, 2 ms
±400 "
Flange connector M23, 17-pin
