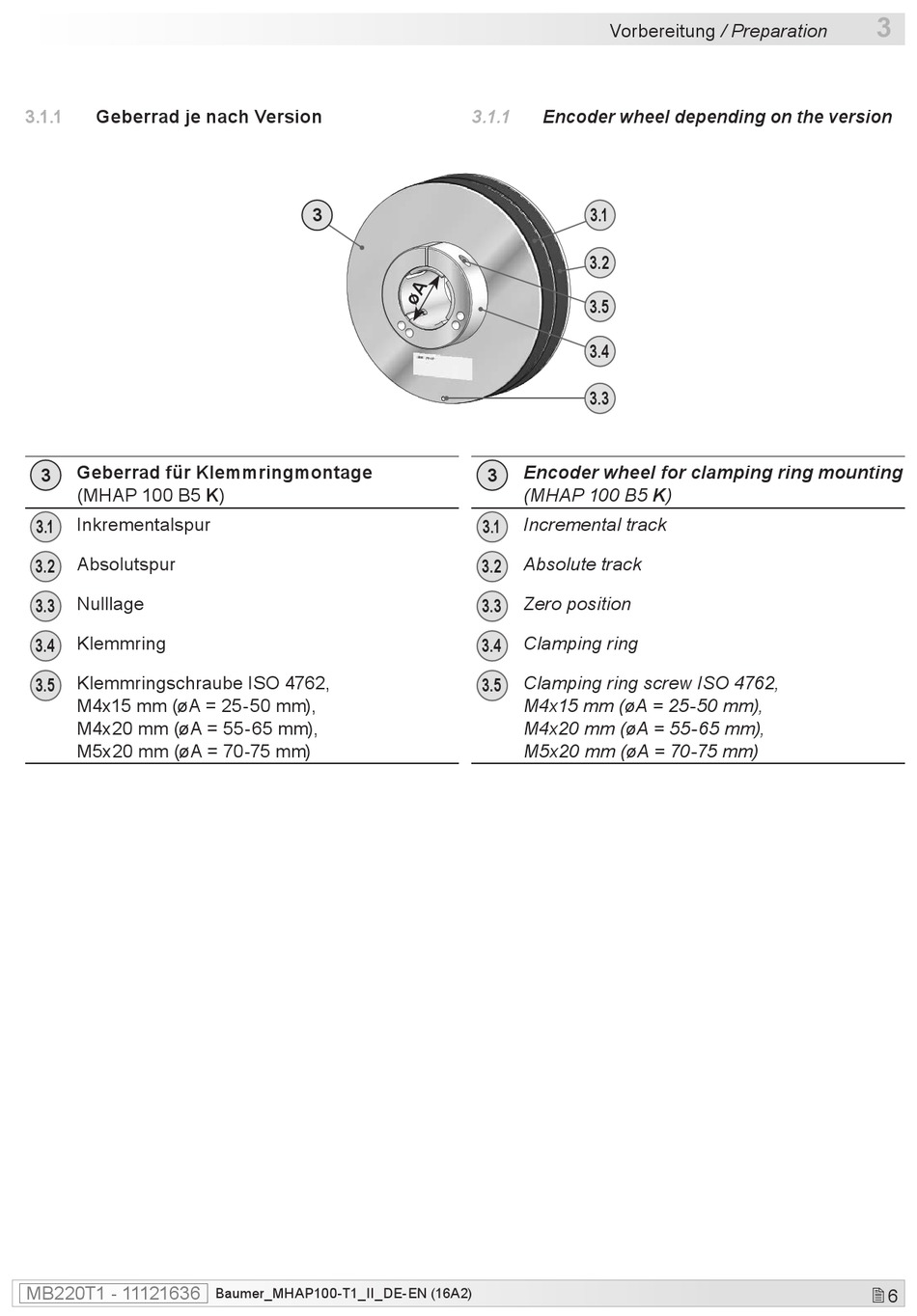

3.1.1 Geberrad je nach Version
Geberrad für Klemmringmontage
3
(MHAP 100 B5 K)
Inkrementalspur
3.1
Absolutspur
3.2
Nulllage
3.3
Klemmring
3.4
Klemmringschraube ISO 4762,
3.5
M4x15 mm (øA = 25-50 mm),
M4x20 mm (øA = 55-65 mm),
M5x20 mm (øA = 70-75 mm)
MB220T1 - 11121636
3
Baumer_MHAP100-T1_II_DE-EN (16A2)
Vorbereitung / Preparation
3.1.1 Encoder wheel depending on the version
3.1
3.2
3.5
3.4
3.3
Encoder wheel for clamping ring mounting
3
(MHAP 100 B5 K)
Incremental track
3.1
Absolute track
3.2
Zero position
3.3
Clamping ring
3.4
Clamping ring screw ISO 4762,
3.5
M4x15 mm (øA = 25-50 mm),
M4x20 mm (øA = 55-65 mm),
M5x20 mm (øA = 70-75 mm)
3
