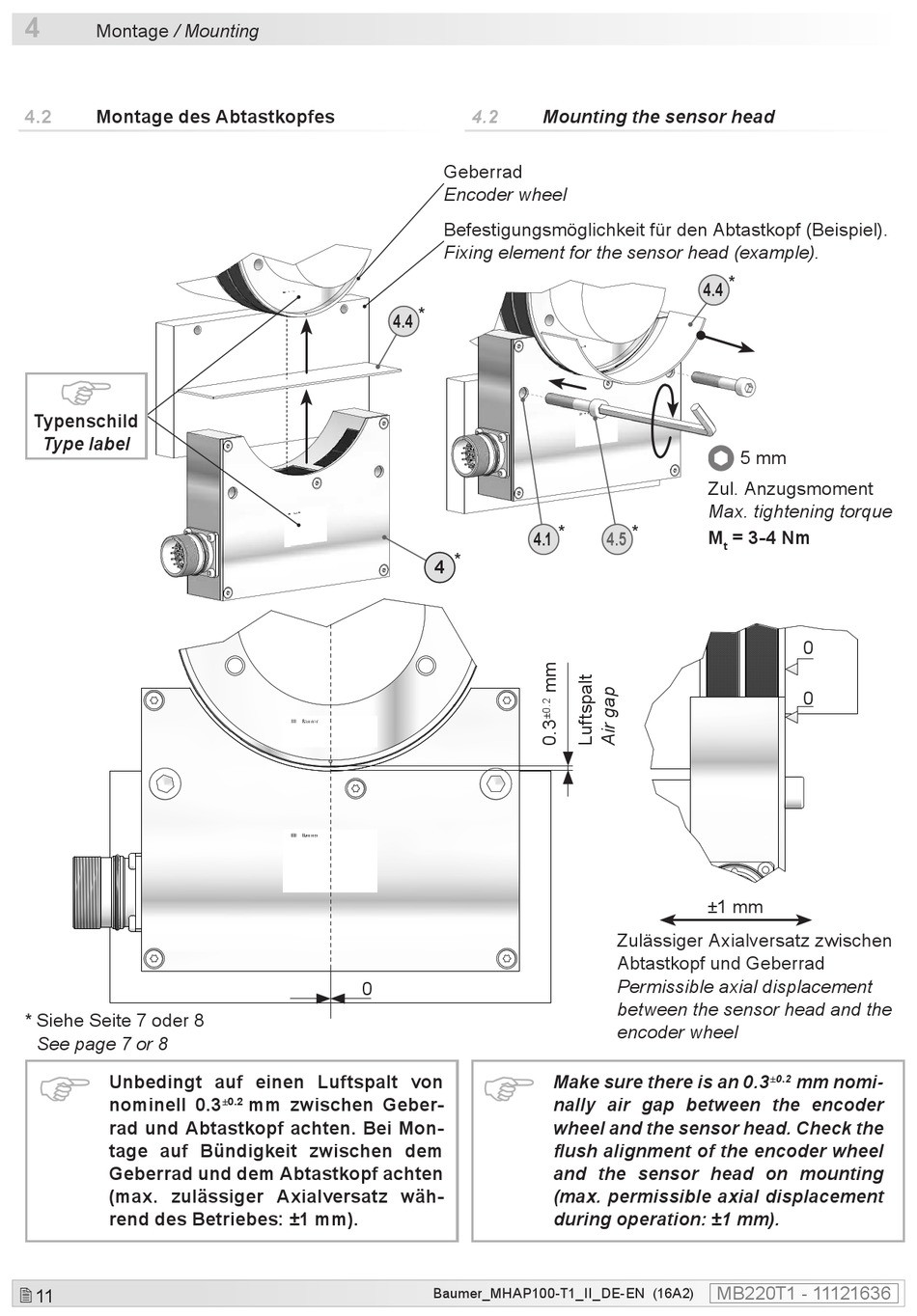

Montage / Mounting
4.2
Montage des Abtastkopfes
Typenschild
Type label
* Siehe Seite 7 oder 8
See page 7 or 8
Unbedingt auf einen Luftspalt von
nominell 0.3
rad und Abtastkopf achten. Bei Mon-
tage auf Bündigkeit zwischen dem
Geberrad und dem Abtastkopf achten
(max. zulässiger Axialversatz wäh-
rend des Betriebes: ±1 mm).
11
4.4
0
mm zwischen Geber-
±0.2
4.2
Mounting the sensor head
Geberrad
Encoder wheel
Befestigungsmöglichkeit für den Abtastkopf (Beispiel).
Fixing element for the sensor head (example).
*
*
4.1
*
4
Make sure there is an 0.3
nally air gap between the encoder
wheel and the sensor head. Check the
flush alignment of the encoder wheel
and the sensor head on mounting
(max. permissible axial displacement
during operation: ±1 mm).
Baumer_MHAP100-T1_II_DE-EN (16A2)
*
4.4
5 mm
Zul. Anzugsmoment
Max. tightening torque
*
M
= 3-4 Nm
4.5
t
±1 mm
Zulässiger Axialversatz zwischen
Abtastkopf und Geberrad
Permissible axial displacement
between the sensor head and the
encoder wheel
±0.2
MB220T1 - 11121636
0
0
mm nomi-
