Fuse holder
Spare fuse
Thermal relay
230 V
contactor coil
Please note:
Insert fuse into
the holder speci-
fied for the se-
lected voltage
Please note:
Connect the two
free wires 95 and
96 to the corre-
sponding termi-
nals of the ther-
mal relay.
Output to pump with
three-phase motor
230 V or 400 V
All manuals and user guides at all-guides.com
Sensitivity
controller
Three-phase mains supply
Availability
indicator lamp
Connection terminal strip
Voltage supply
terminal strip

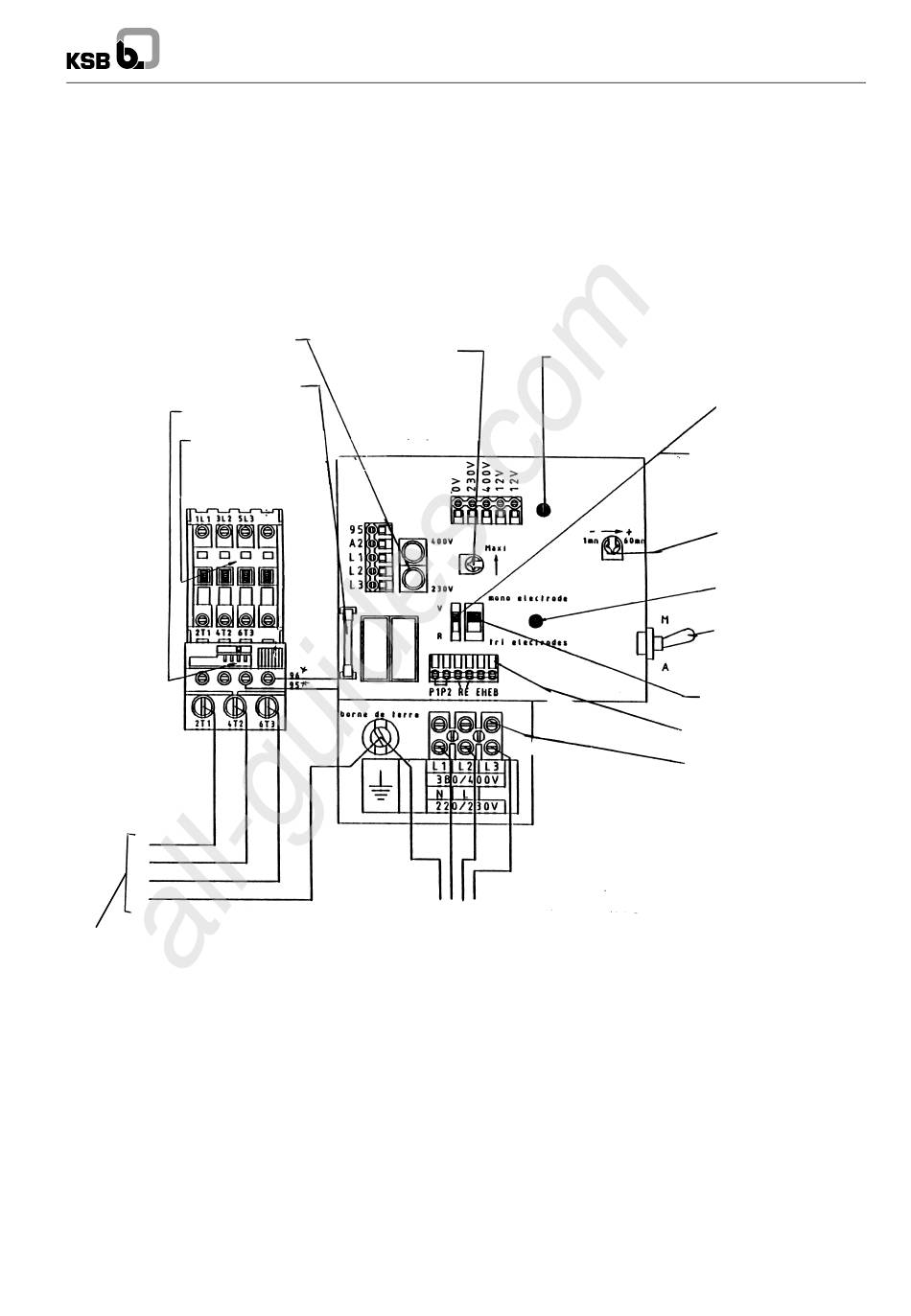

Connection of UPA CONTROL to a 230 V
or 400 V three-phase mains supply
UPA CONTROL
Operating mode
selector
Cut-in delay
Lack-of-water
indicator lamp (red)
ON/OFF
switch
Selecting the num-
ber of electrodes
21
