15. Installation of the intake silencer with integrated airfilter

Install rubber intake pipe (2) in a horizontal position in the bottom half (1) of intake silencer so
that the rounded intake openings point
outwards.
Fit the carburetor socket (6) into the
top half of silencer (5) so that the
arrow on the socket points towards the
carburetor.
Apply common motoroil (12) on the
filter mat (4) and squeeze out surplus
oil afterwards.

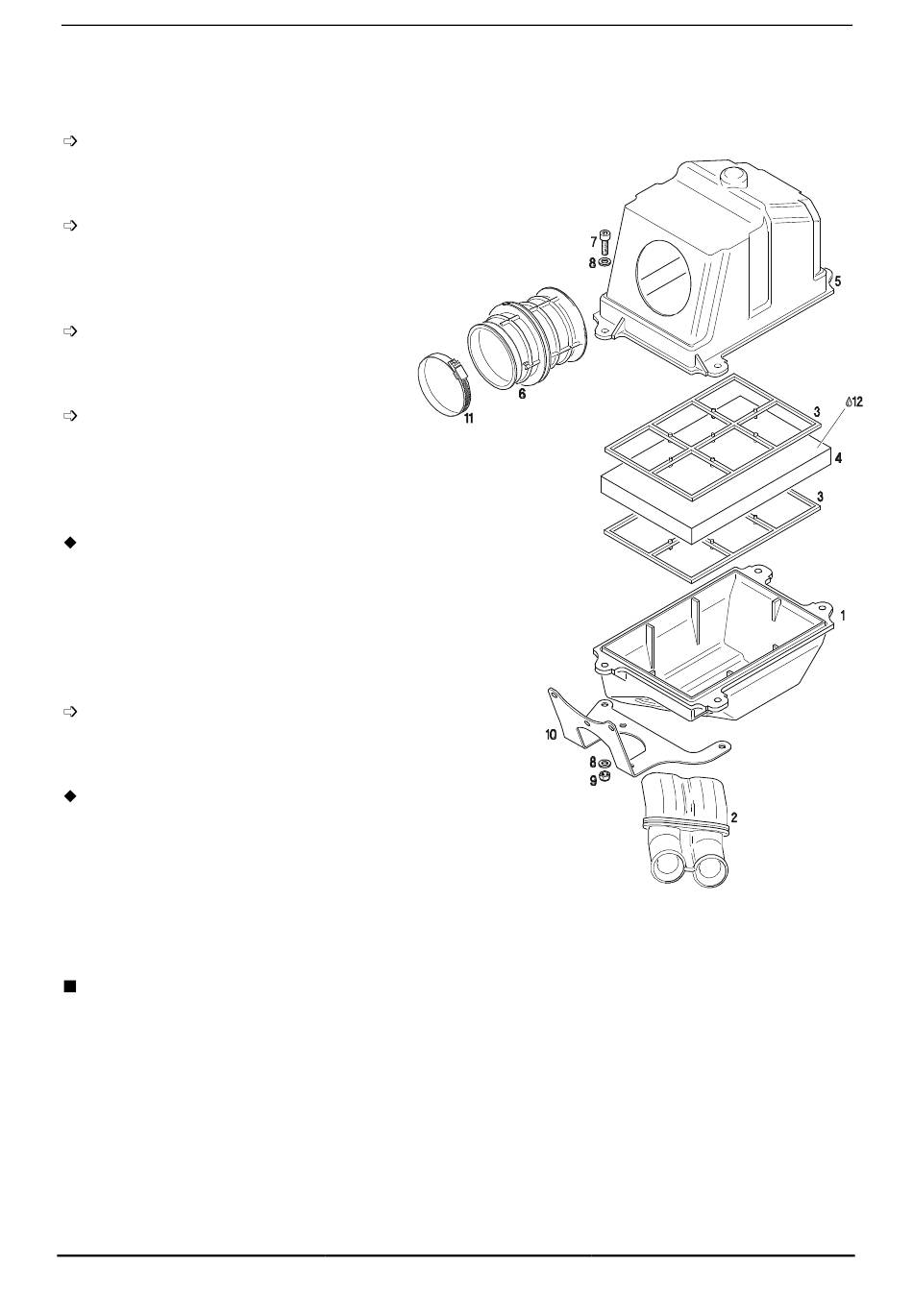

Assemble the silencer components as
shown (fig. 9) and join the two silencer
halves with the supplied Allen screws,
washers, locknuts and support bracket
(10).
Note: On the bottom half of the intake
silencer (1) part of the support
lug rib on the longitudinal side
of the silencer has to be cut off
with a knife so that the support
bracket can rest on the support
lug.
Attach the intake silencer with the
supplied hose clamps (11) on the
carburetor.
Note: The carburetor socket (6)
is asymmetrical and can be
turned so that the best
possible
maximum
can be achieved.
Attention: Airstream to the radiator must not be impeded by the intake silencer.
Seite/page 55/80
Installation Instructions FR 125 MAX
position for
leg clearance
FR 125 MAX
Fig. 9
Ausgabe/edition 07/99
