• Dress properly. Do not wear loose clothing or jewelry. Keep your
hair and clothing away from moving parts. Loose clothes, jewelry or
long hair can be caught in moving parts.
• If devices are provided for the connection of dust extraction and
collection facilities, ensure these are connected and properly used.
Use of dust collection can reduce dust-related hazards.
• Do not let familiarity gained from frequent use of tools allow you to
become complacent and ignore tool safety principles. A careless
action can cause severe injury within a fraction of a second.
Power tool use and care
• Do not force the power tool. Use the correct power tool for your
application. The correct power tool will do the job better and safer
at the rate for which it was designed.
• Do not use the power tool if the switch does not turn it on and off.
Any power tool that cannot be controlled with the switch is
dangerous and must be repaired.
• Disconnect the plug from the power source and/or remove the
battery pack, if detachable, from the power tool before making any
adjustments, changing accessories, or storing power tools. Such
preventive safety measures reduce the risk of starting the power
tool accidentally.
• Store idle power tools out of the reach of children and do not allow
persons unfamiliar with the power tool or these instructions to
operate the power tool. Power tools are dangerous in the hands of
untrained users.
• Maintain power tools and accessories. Check for misalignment or
binding of moving parts, breakage of parts and any other condition
that may affect the power tool's operation. If damaged, have the
power tool repaired before use. Many accidents are caused by
poorly maintained power tools.
• Keep cutting tools sharp and clean. Properly maintained cutting
tools with sharp cutting edges are less likely to bind and are easier
to control.
• Use the power tool, accessories and tool bits etc. in accordance with
these instructions, taking into account the working conditions and
the work to be performed. Use of the power tool for operations
different from those intended could result in a hazardous situation.
• Keep handles and grasping surfaces dry, clean and free from oil and
grease. Slippery handles and grasping surfaces do not allow for safe
handling and control of the tool in unexpected situations.
Service
• Have your power tool serviced by a qualified repair person using
only identical replacement parts. This will ensure that the safety of
the power tool is maintained.

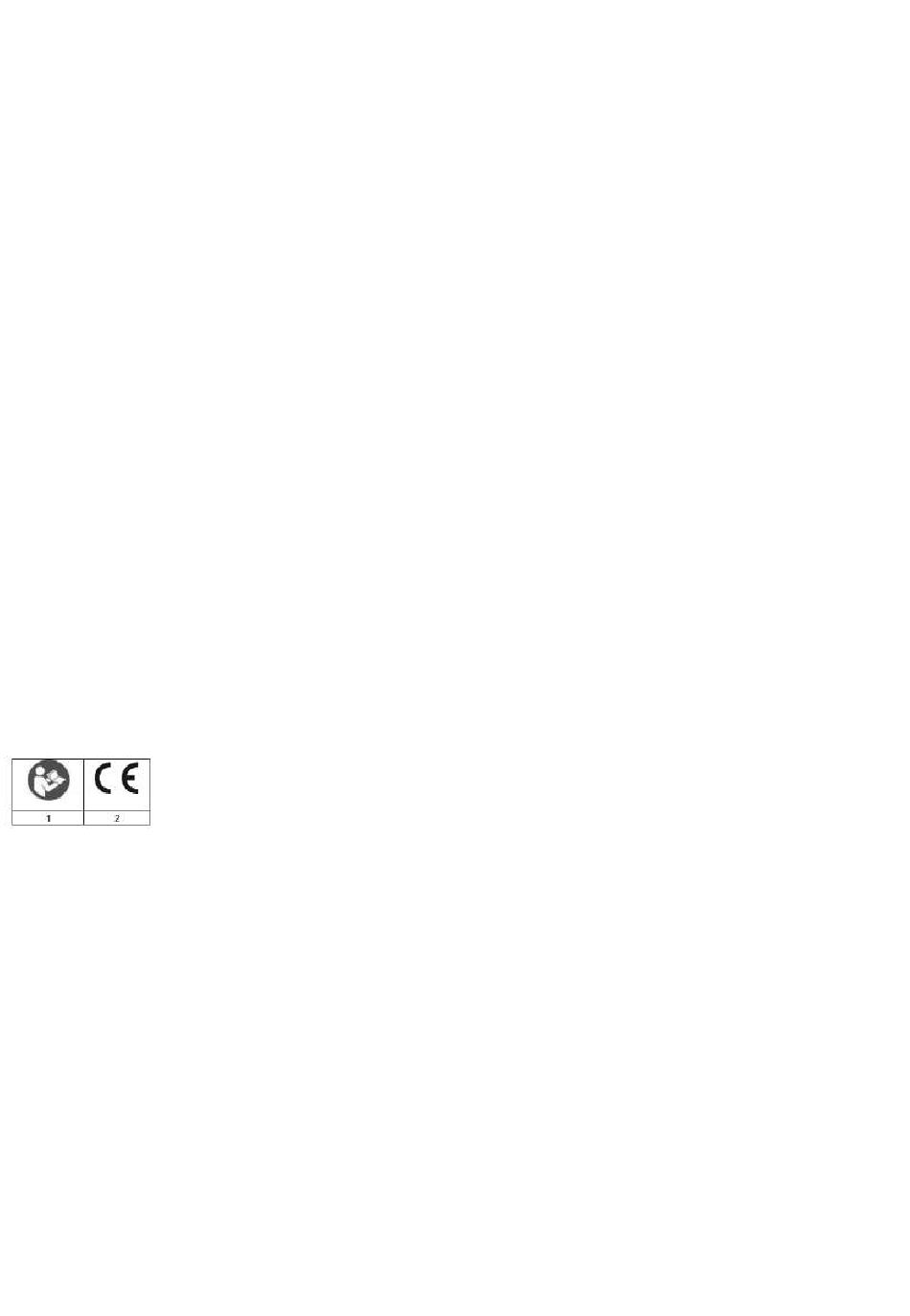

SYMBOLS EXPLANATION

1. Read the manual before use.
2. Product conforms with EU directives.
FIGURES EXPLANATION
Parts:
1. Tube holder
2. Piston
3. Tube holder joint
4. Rod
5. Rod handle
6. On / off switch
7. Locking switch
8. Battery button
9. Handle
10. Battery
Figures and elements shown:
Fig A:
1. On / Off switch
2. Locking switch
Fig. B
1. Speed control dial
Fig. C
1. O-Ring
2. Holder joint
3. Plate
4. Screws
5. Base
Fig. E
1. Rod
Fig. G
1. Rod
2. Piston
3. Screw
Fig. H
1. Piston – variant A
2. Piston – variant B
3. Rod – variant A
4. Rod – variant B
Fig. I
1. Holder – variant A
Fig. J
2. Holder – variant B
Fig. K
1. Tube
2. Tube's tip
Fig. L
3. Tube's mouth
Fig. M
1. Holding nut
2. Nozzle
Fig. N
1. Bag's tip
2. Bag
3. Holder
DESCRIPTION
Device powered by a battery, intended for squeezing cartridges / tubes
with glue, silicone, etc. The squeezer is intended for general use during
renovation works, assembly activities, and as part of independent amateur
activity (DIY).
CONTENTS
Caulking gun
Belt hook with a screw
Holder
Manual
Guarantee card

OPERATING

Turn on / off
Unlock the device by sliding the lock switch to the unlock position (fig. A)
The device turns on and off by pressing or releasing the switch.
Speed control
The speed of feeding can be controlled by the knob on the back of the
machine. The speed increases with the number on the knob (fig. B)
Assembly / disassembly of the holder joint
Attach the elements to the base on the body in accordance with the
sequence in fig. C, D (from 1 to 4). Tighten the screws. Dismantling is
carried out in the opposite way to assembly.
Rod assembly / disassembly
Insert the rod through the hole in the back of the device with the teeth
facing down. Place the piston on the row and screw it on with the screw
(fig. E, F, G).
Types of accessories
Rods, pistons and holders are available in two variants:
Variant A: 310 ml holder, smaller piston, shorter rod. Adapted for
squeezing masses in tubes.
Variant B: 600 ml holder, larger piston, longer rod. Suitable for squeezing
masses in bags (fig. H, I, J).
Preparation of cartridges
For tubes (use accessory variant A!):
1. Cut the tip of the tube with a knife.
2. Unscrew the tip and pierce the protective foil at the mouth of the tube (if
present).
3. Screw the tip of the tube onto its thread.
4. Carefully pull the rod back with the handle as far as it will go.
5. Place the tube in the holder. Push the piston gently to the bottom of the
tube.
6. The tube is removed in the opposite way. (pictures K, L)
For masses in bags (use accessory variant B):
