OPERATION & INSTALLATION MANUAL FOR PC-RLH8/10

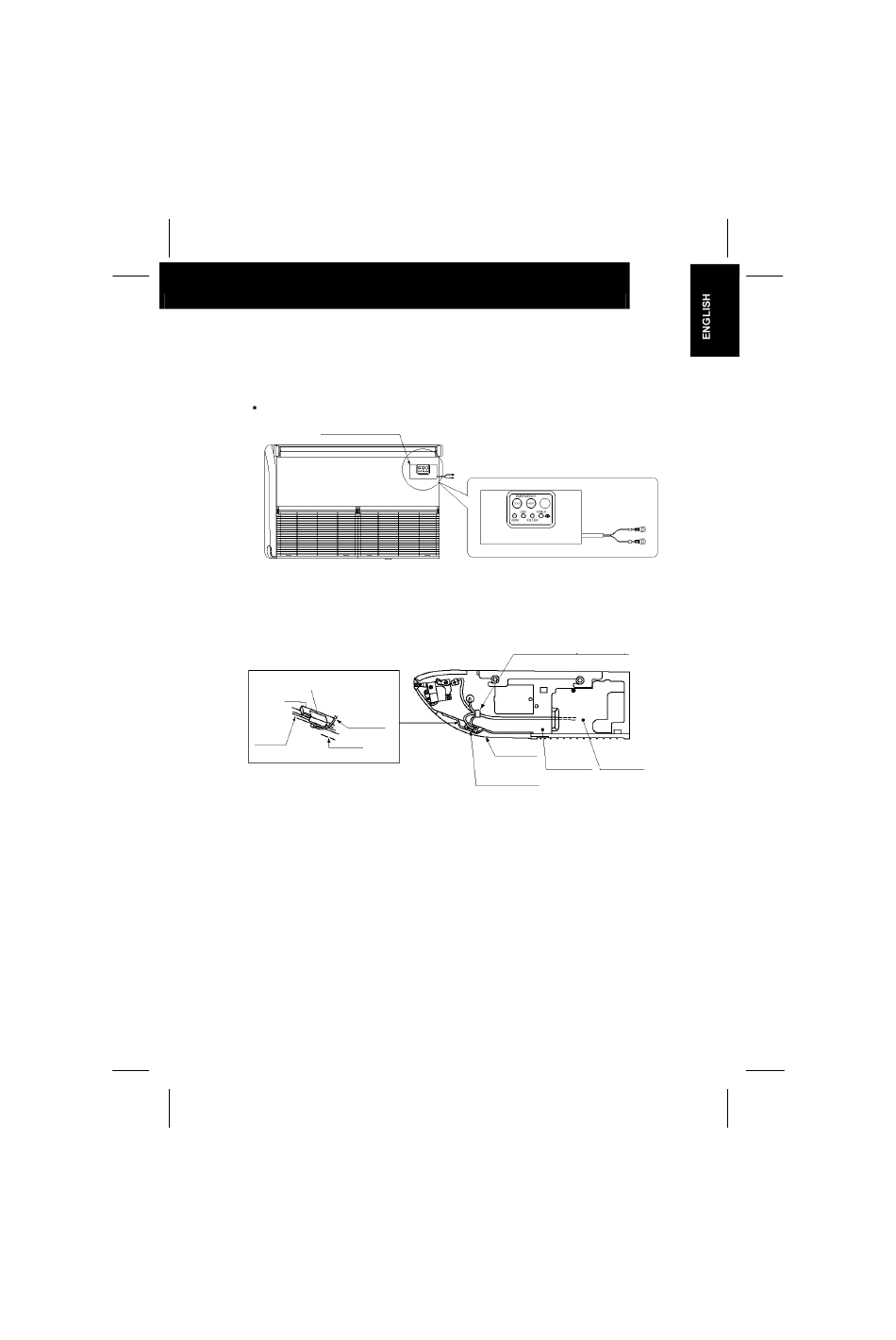

5) Install the wireless receiver kit to the drain pan.
(1) Insert the cable through the hole for wiring.
(2) Install the wireless receiver kit completely.
Check to nesure that there is no gap between wireless receiver kit and drain pan.
Wireless Receiver Kit
6) Lead the cable into the electrical box with other wires.
(1) Attach the insulation (Factory-Supplied) to the edge of the side platein order to protect the
cable as shown in the figure below.
Insulation(Factory-Supplied)
Cushion
Cable for
Wireless
Receiver Kit
Side Plate
Drain Pan
5
Enlarged View
Tie with the cable by the cord clamp
Drain Pan
Side Plate R Piping Cover
Cable for Wireless
Receiver Kit
