OPERATION & INSTALLATION MANUAL FOR PC-RLH8/10
3 INSTALLATION OF WIRELESS RECEIVER KIT
CAUTION:
Pay attention to the following installation procedures. If not, it may drop from the panel,
resulting in a serious accident.
PC-RLH8
1) Install the wireless receiver kit, the indoor unit and the air panel at the same time.
2) In case that the wireless receiver kit is installed after installing the indoor unit, turn off the
power source of the indoor unit and remove the air panel.

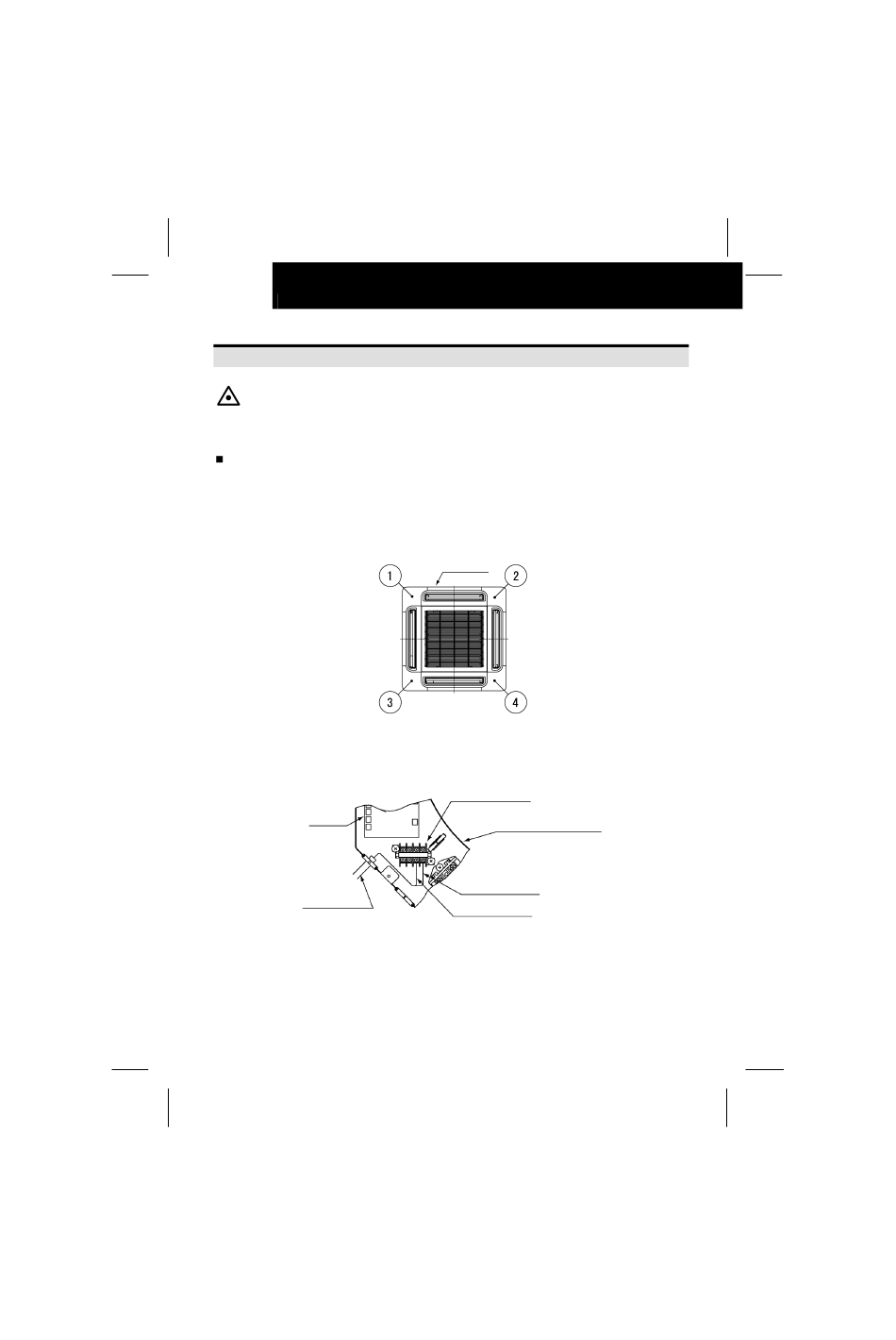

3) This receiver kit can be installed at the position 1,2,3 or 4
4) Remove the cover of indoor unit electrical controlbox and connect the cable to the terminal
board (white) as shown below.
PCB
Connecting Cable
Air Panel
Terminal Board
(White)
Indoor Unit
Electrical Control Box
Mark Band "B"
Mark Band "A"
