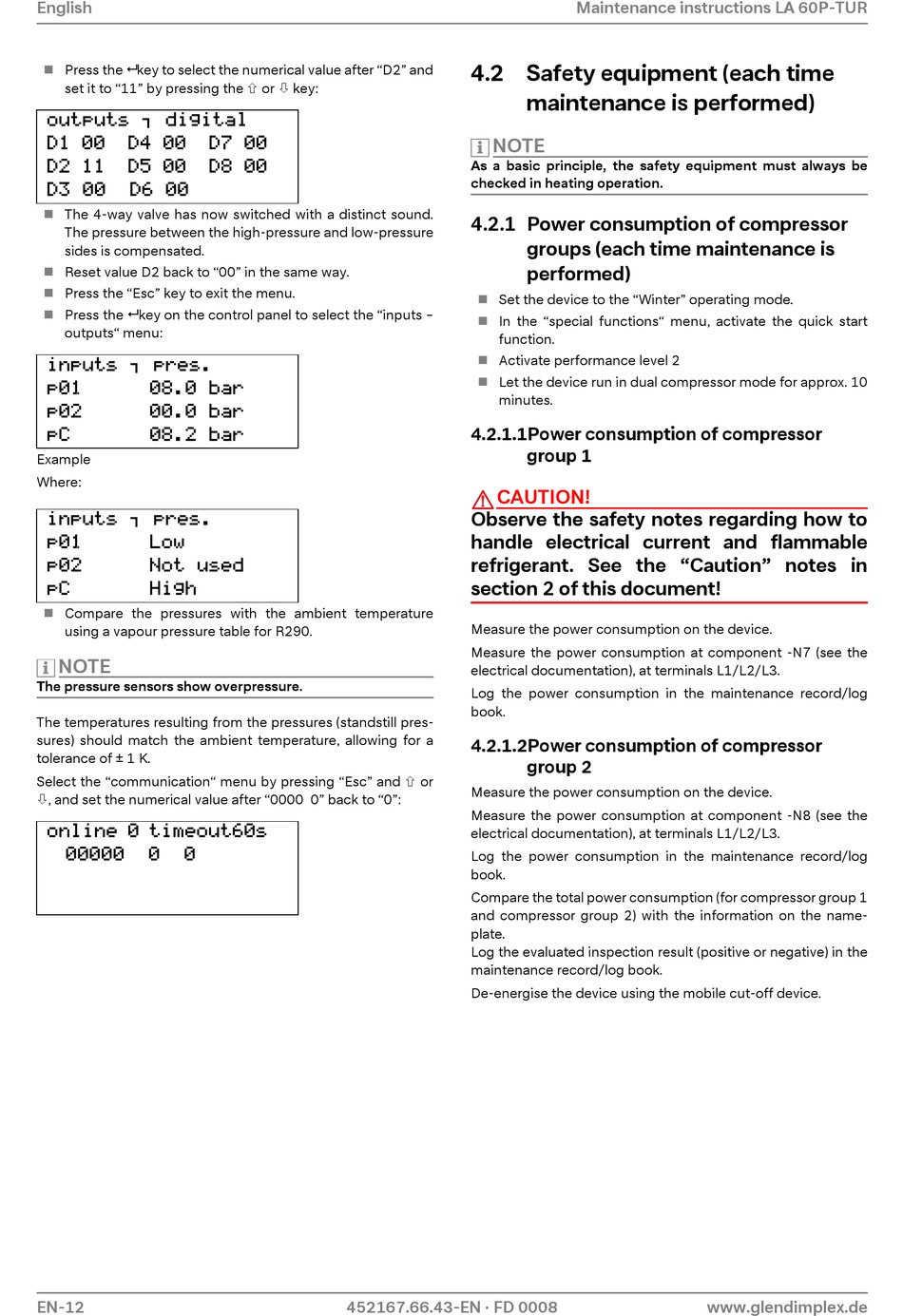

 Press the  key to select the numerical value after "D2" and
set it to "11" by pressing the  or  key:




The 4-way valve has now switched with a distinct sound.

The pressure between the high-pressure and low-pressure
sides is compensated.
 Reset value D2 back to "00" in the same way.
Press the "Esc" key to exit the menu.

Press the  key on the control panel to select the "inputs –

outputs" menu:

 
 
 
Example
Where:

 
 
 
 Compare the pressures with the ambient temperature
using a vapour pressure table for R290.
NOTE
The pressure sensors show overpressure.
The temperatures resulting from the pressures (standstill pres-
sures) should match the ambient temperature, allowing for a
tolerance of ± 1 K.
Select the "communication" menu by pressing "Esc" and  or
, and set the numerical value after "0000 0" back to "0":


EN-12
4.2 Safety equipment (each time
NOTE
As a basic principle, the safety equipment must always be
checked in heating operation.
4.2.1 Power consumption of compressor
Set the device to the "Winter" operating mode.

In the "special functions" menu, activate the quick start

function.
Activate performance level 2

 Let the device run in dual compressor mode for approx. 10
minutes.
4.2.1.1Power consumption of compressor
CAUTION!
Observe the safety notes regarding how to
handle electrical current and flammable
refrigerant. See the "Caution" notes in
section 2 of this document!
Measure the power consumption on the device.
Measure the power consumption at component -N7 (see the
electrical documentation), at terminals L1/L2/L3.
Log the power consumption in the maintenance record/log
book.
4.2.1.2Power consumption of compressor
Measure the power consumption on the device.
Measure the power consumption at component -N8 (see the
electrical documentation), at terminals L1/L2/L3.
Log the power consumption in the maintenance record/log
book.
Compare the total power consumption (for compressor group 1
and compressor group 2) with the information on the name-
plate.
Log the evaluated inspection result (positive or negative) in the
maintenance record/log book.
De-energise the device using the mobile cut-off device.
