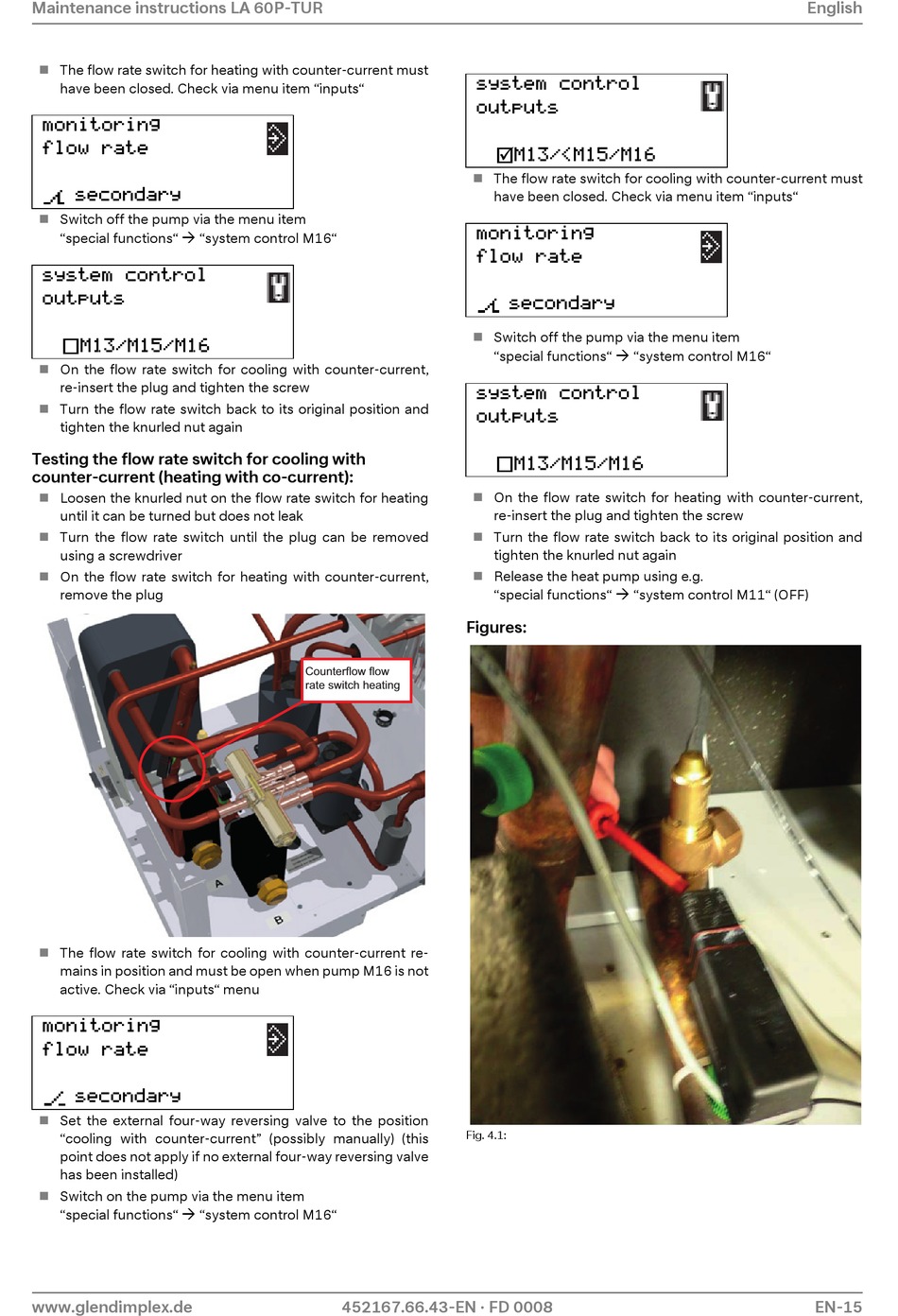

Maintenance instructions LA 60P-TUR
 The flow rate switch for heating with counter-current must
have been closed. Check via menu item "inputs"



Switch off the pump via the menu item

"special functions"  "system control M16"




On the flow rate switch for cooling with counter-current,

re-insert the plug and tighten the screw
Turn the flow rate switch back to its original position and

tighten the knurled nut again
Testing the flow rate switch for cooling with
counter-current (heating with co-current):
 Loosen the knurled nut on the flow rate switch for heating
until it can be turned but does not leak
 Turn the flow rate switch until the plug can be removed
using a screwdriver
On the flow rate switch for heating with counter-current,

remove the plug
 The flow rate switch for cooling with counter-current re-
mains in position and must be open when pump M16 is not
active. Check via "inputs" menu



Set the external four-way reversing valve to the position

"cooling with counter-current" (possibly manually) (this
point does not apply if no external four-way reversing valve
has been installed)
Switch on the pump via the menu item

"special functions"  "system control M16"
www.glendimplex.de





Figures:
Counterflow flow
rate switch heating
Fig. 4.1:
452167.66.43-EN · FD 0008




The flow rate switch for cooling with counter-current must
have been closed. Check via menu item "inputs"



Switch off the pump via the menu item
"special functions"  "system control M16"




On the flow rate switch for heating with counter-current,
re-insert the plug and tighten the screw
Turn the flow rate switch back to its original position and
tighten the knurled nut again
Release the heat pump using e.g.
"special functions"  "system control M11" (OFF)
English
EN-15
