Adjustments

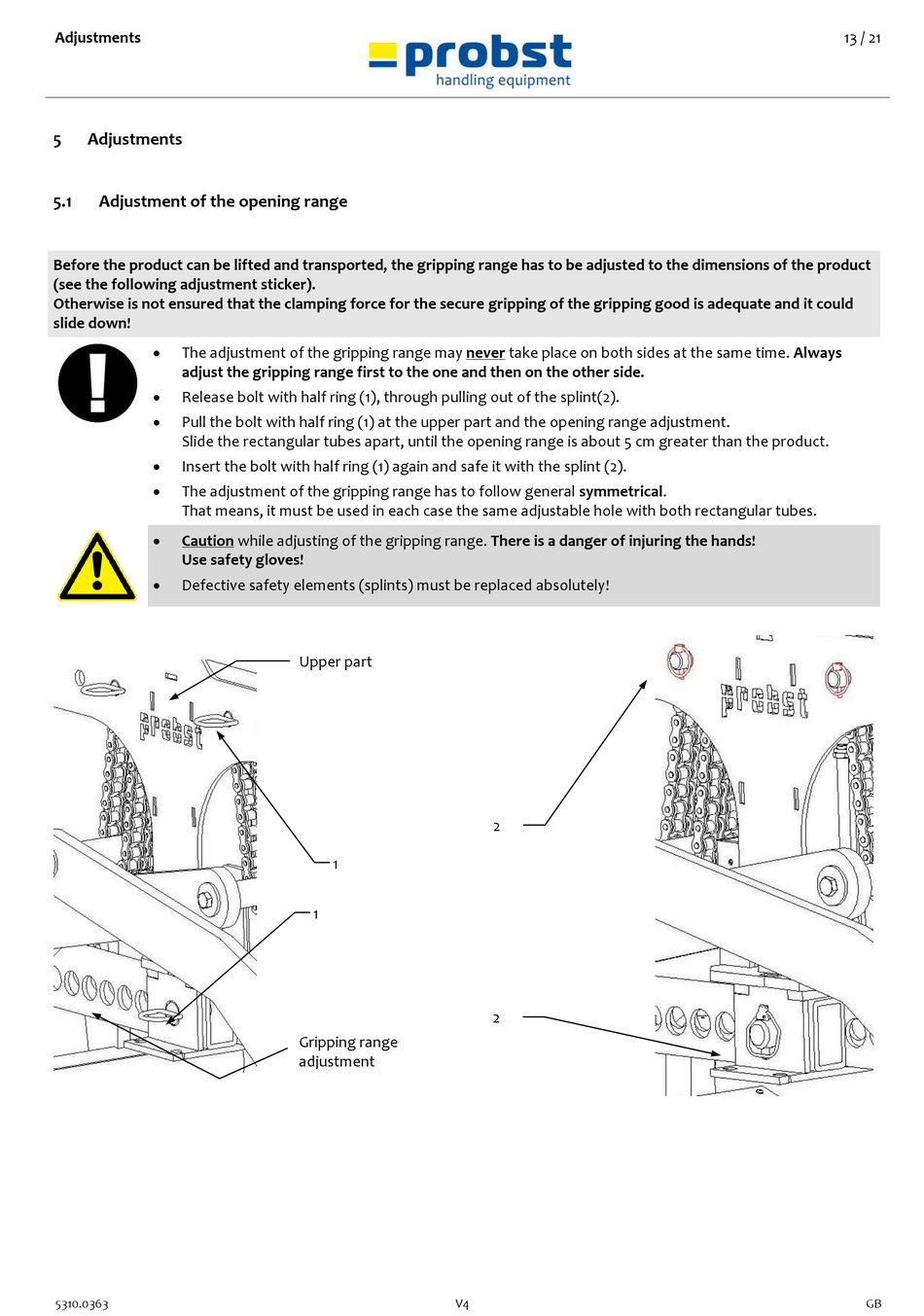

5 Adjustments
5.1

Adjustment of the opening range

Before the product can be lifted and transported, the gripping range has to be adjusted to the dimensions of the product
(see the following adjustment sticker).
Otherwise is not ensured that the clamping force for the secure gripping of the gripping good is adequate and it could
slide down!

The adjustment of the gripping range may never take place on both sides at the same time. Always
adjust the gripping range first to the one and then on the other side.

Release bolt with half ring (1), through pulling out of the splint(2).

Pull the bolt with half ring (1) at the upper part and the opening range adjustment.
Slide the rectangular tubes apart, until the opening range is about 5 cm greater than the product.

Insert the bolt with half ring (1) again and safe it with the splint (2).

The adjustment of the gripping range has to follow general symmetrical.
That means, it must be used in each case the same adjustable hole with both rectangular tubes.

Caution while adjusting of the gripping range. There is a danger of injuring the hands!
Use safety gloves!

Defective safety elements (splints) must be replaced absolutely!
5310.0363
Upper part
1
1
Gripping range
adjustment
V4
2
2
