The Edge triggering menu is described in the following table.
Function menu
Slope
Source
Trig mode
Coupling
SENS
Term interpretation
Sensitivity: Trigger circuit including sluggish in order to exclude the influences from signal noise and get the
stable trigger. The sluggish is adjustable among 0.2div~1.0div. It means when set on 1.0 div trigger circuit
don't have any response to any signal of PK-PK range ≤1.0div which to exclude the influences from signal
noise.

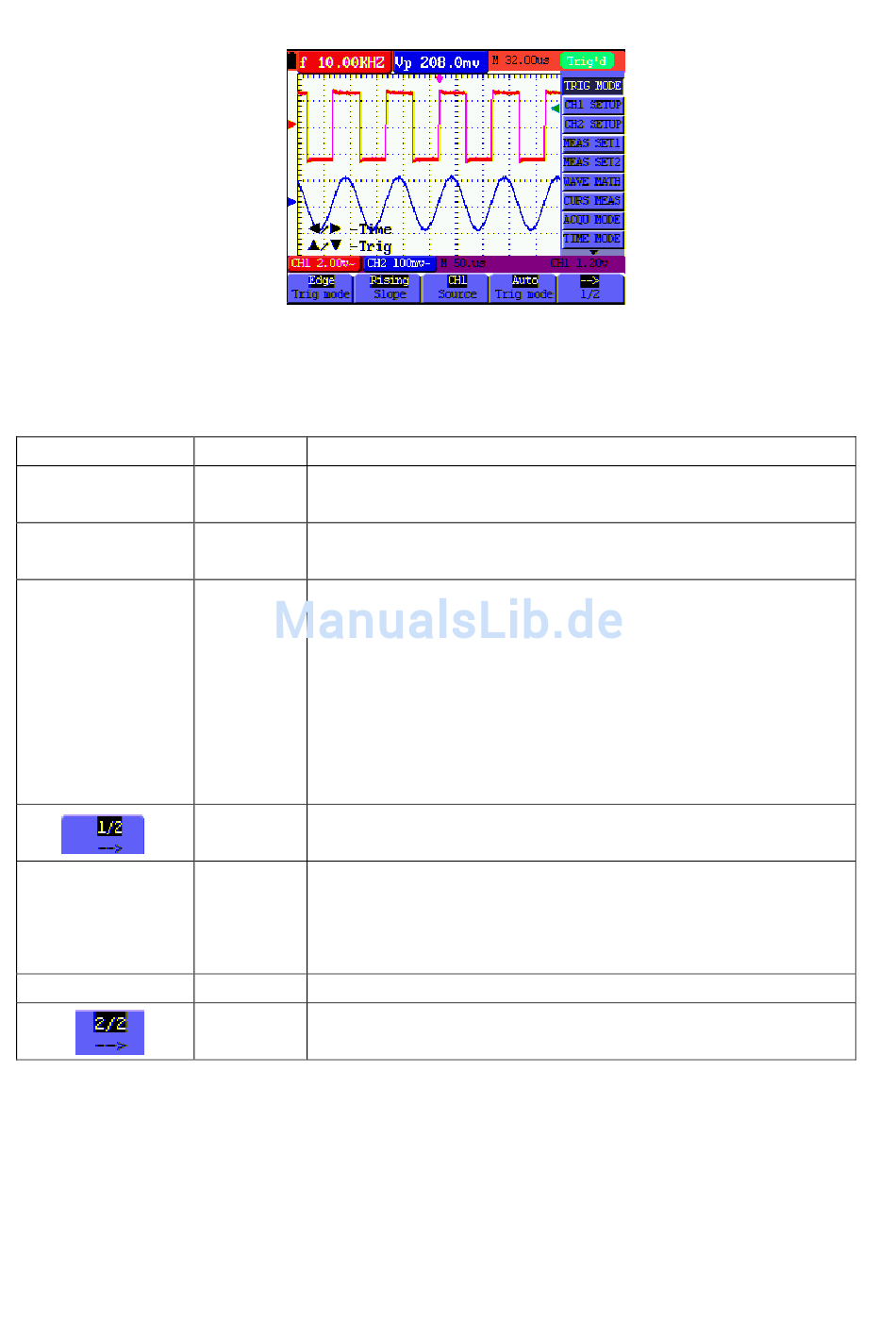

Figure 38: Edge Trigger
Settings
Description
Rising
Triggering on the rise edge of the signal.
Falling
Triggering on the fall edge of the signal.
CH1
CH1 is used as the trigger source.
CH2
CH2 is used as the trigger source.
Auto
Input signals are constantly acquired and shown in the display
regardless of trigger condition.
Normal
Input signals are shown in the display only if the trigger condition is
met.
Single
You manually trigger the oscilloscope by pressing the RUN/STOP
key each time you need to observe the waveform. Once the
waveform is captured, the oscilloscope stops triggering and waits
for the next trigger command.
next menu
AC
Triggers only on the AC portion of the waveform.
DC
Triggers on the whole waveform (AC+DC)
HF Rjc
Filters out the higher frequency when triggering.
LF Rjc
Filters out the lower frequency when triggering.
Set trigger sensitivity
back to previous menu
-92-
