1. Battery electric quantity indictor.
2. Manual/Auto range indictors, among which the MANUAL means measuring range in manual operation
mode and Auto refers to the measuring range in automatic operation mode.
3. Measurement mode indicators (DCV, ACV, DCA, ACA, R, Diode, ·)))), C)
4. The relative magnitude measurement indicator.
5. Running state indicators, among which RUN expresses continuous update and STOP represents the
screen locking.
6. The reference value of the relative magnitude measurement.
7. The multiplying power of the dial indication. To multiply the reading of dial pointer by multiplying power will
get the measurement result.
8. The mail reading of measurement
9. Automatic control measuring range.
10. Absolute/ relative magnitude measuring control: The sign "||" expresses the absolute magnitude
measuring control and " " represents the relative magnitude measuring control.
Manually measuring range control.
Manual measurement control.
11. Test lead indicated the scale of test reading; different test modes display different colors.
6.1. Activating the Multimeter
Press DMM/OSC key, the oscilloscope will switch to the multimeter measure, the screen will display the
multimeter windows, at the same time, prompt to correctly insert testing pen of the multimeter, at this time,
then press any key to enter into multimeter measure.
6.1.1. Measuring Resistance Values
To measure a resistance, do the following:
1. Press the R key and R appears at the top of the screen.
2. Insert the black lead into the COM banana jack input and the red lead into the V/Ω banana jack input.
3. Connect the red and black test leads to the resistor. The resistor value readings are shown on the screen
in Ohm.
Now, you can see a screen that looks like the following Figure.

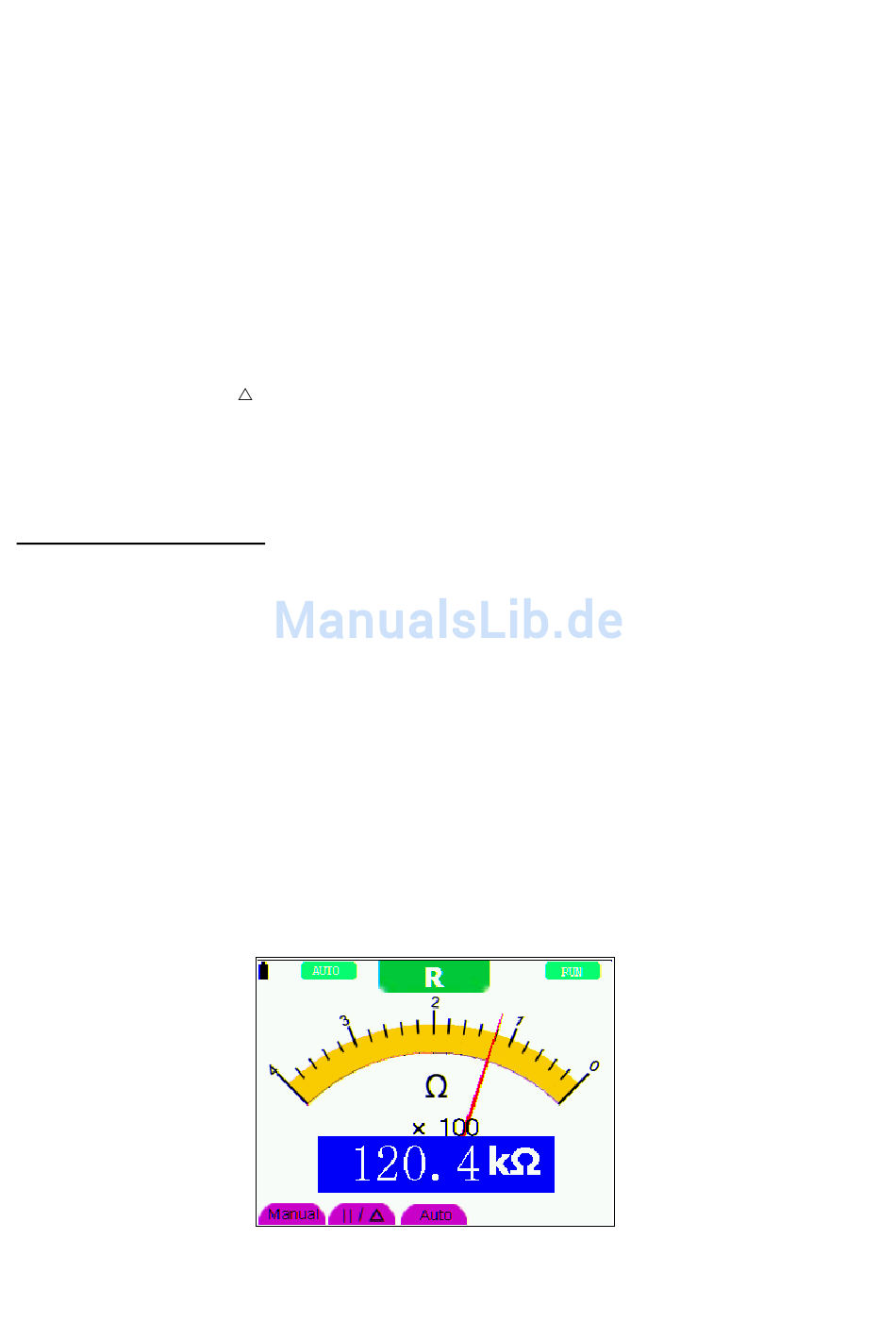

Figure 21: Resistance Measurement
-80-
