4. Connect the red and black leads to the measured point and the AC current value of the measured point
will be displayed on the screen.
Look at the display; you can see a screen that looks like the following Figure.
To measure an AC current which is larger than 400 mA, do the following:
Press the SET key once and ACA is visible at the top of the screen.
1.
2. Press F5 to select 10A measure, the unit of main reading window is A.
3. Press the SET key once and ACA is visible at the top of the screen.
4. Plug current extended module in current measure jack, then plug the probe in the module.
5. Connect the red and black leads to the measured point and the AC current value of the measured point
will be displayed on the screen.
Press F4 return to 400mA measure.
6.
Look at the display; you can see a screen that looks like the following Figure.
6.2. Freezing the Readings
You can freeze the displayed readings at any time.
1. Press the RUN /STOP key to freeze the screen and STOP will be displayed at the top right of the screen.
2. Again, press the RUN /STOP key, you can resume your measurement.

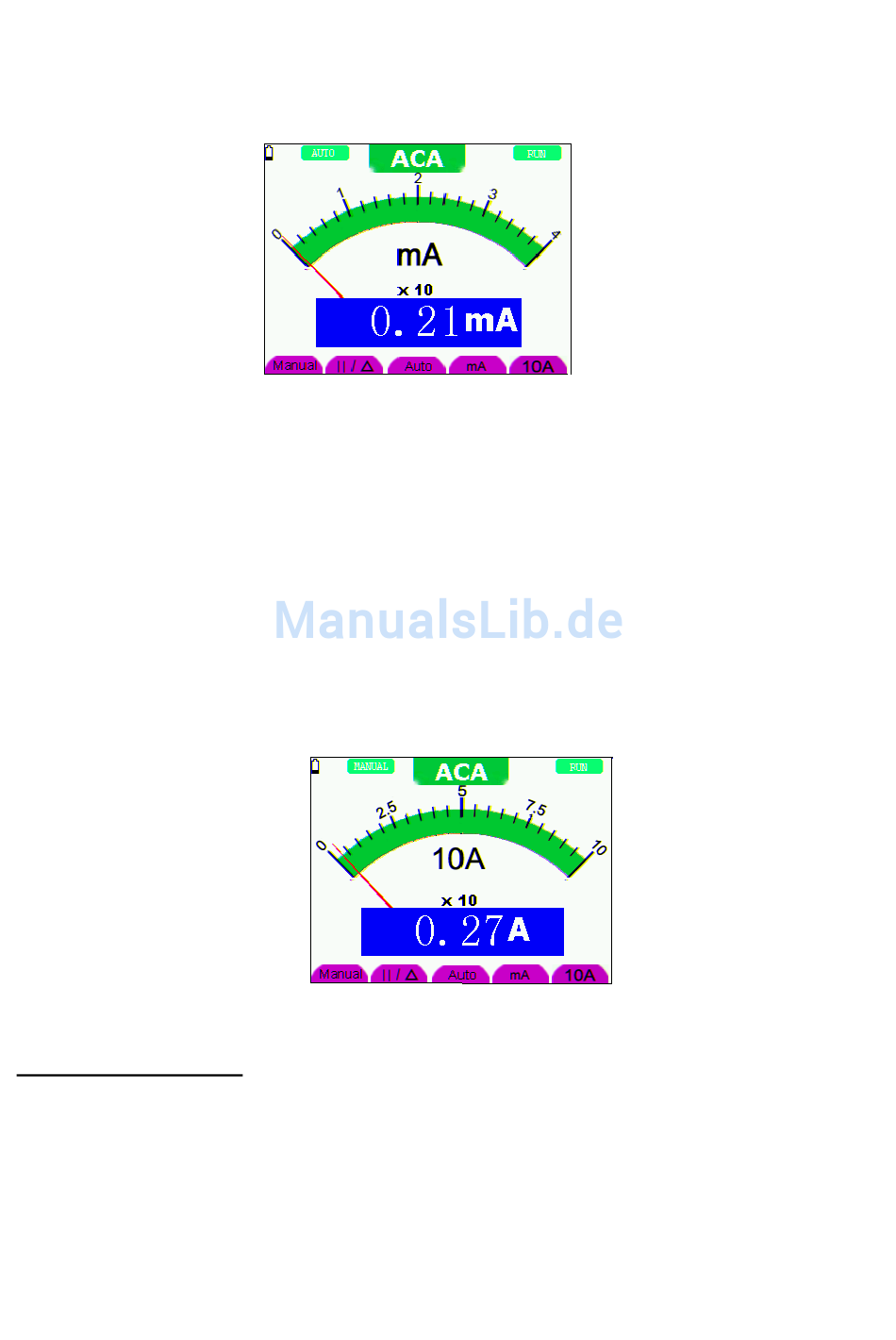

Figure 29: AC Current Measurement for <400 mA
Figure 30: AC Current Measurement for <10 A
