Press the F2 key to select the measured channel CH1.
4.
5. Press OPTION and display as
—Cursor 2
—Cursor 1
Press ▲(yellow) or ▼(yellow) to see V1 move up and down and the panel will display the voltage value
match V1 and Channel 1 Zero; Press ◄(yellow) or ►(yellow) to see V2 move up and down and panel
will display the voltage value match V2 to Channel 1 Zero. LCD panel also display the absolute value of
V1-V2

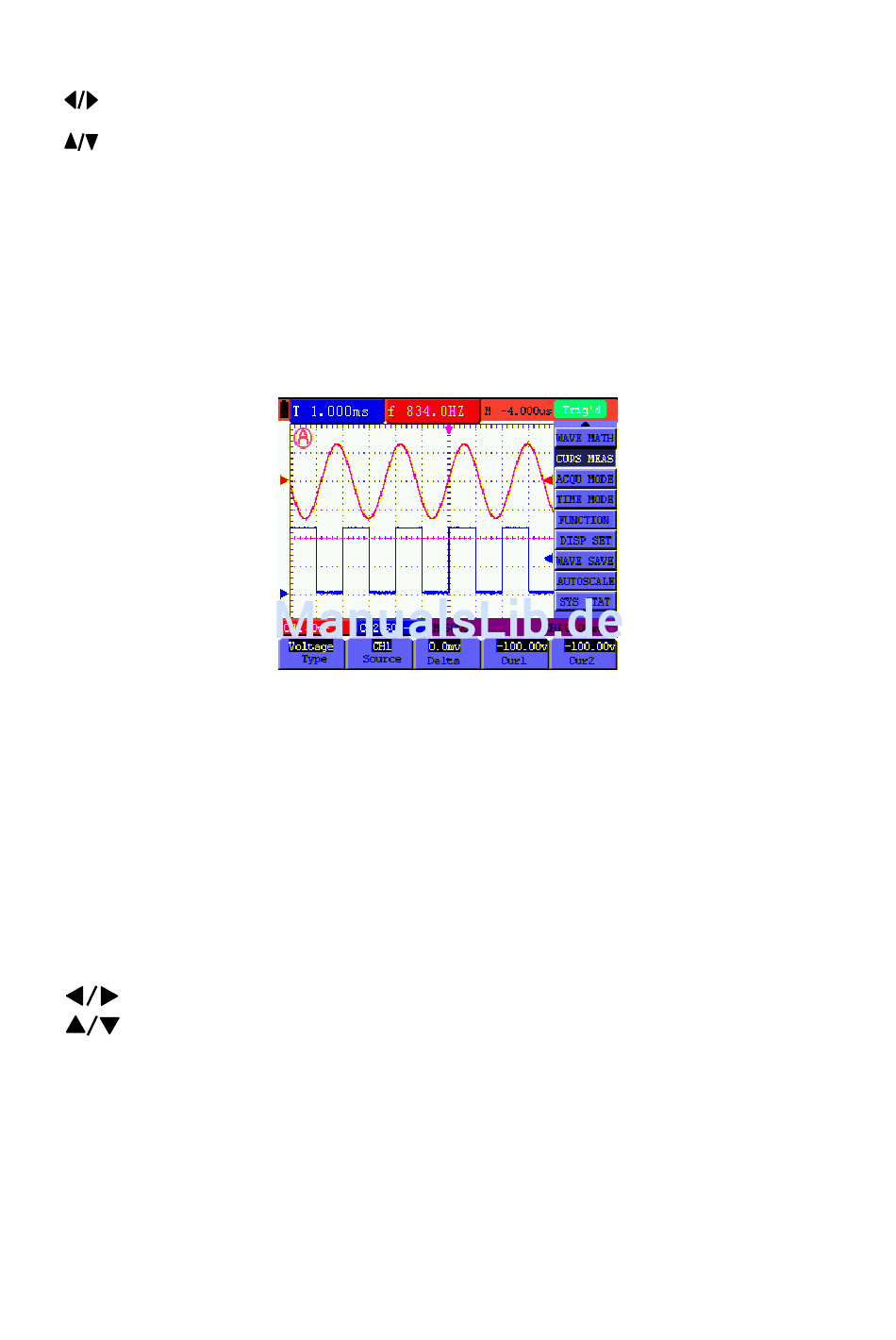

Now, you can see a screen that looks like the following Figure:
To use the cursor for a time measurement on CH1, do the following:
1. Press the MENU key and the function menus are displayed at the right of the screen.
Press the MENU ▲ or MENU ▼ key to select Cursor measurement key. Two options are shown at the
2.
bottom of the screen.
3. Press the F1 key to the measurement type Time. Two vertical dashed lines T1 and T2 appear on the
screen.
4. Press the F2 key and jump to the measured channel CH1.
5. Press OPTION and display as
- Cursor 2
- Cursor 1
Press ▲(yellow) or ▼(yellow) and see T1 move left and right and LCD display the time value match T1 to
point position in panel; press ◄(yellow) or ►(yellow) and see T2 move left and right and LCD display the
time value match T2 to point position in panel.
Figure 49: Use the Cursor for a Voltage Measurement
