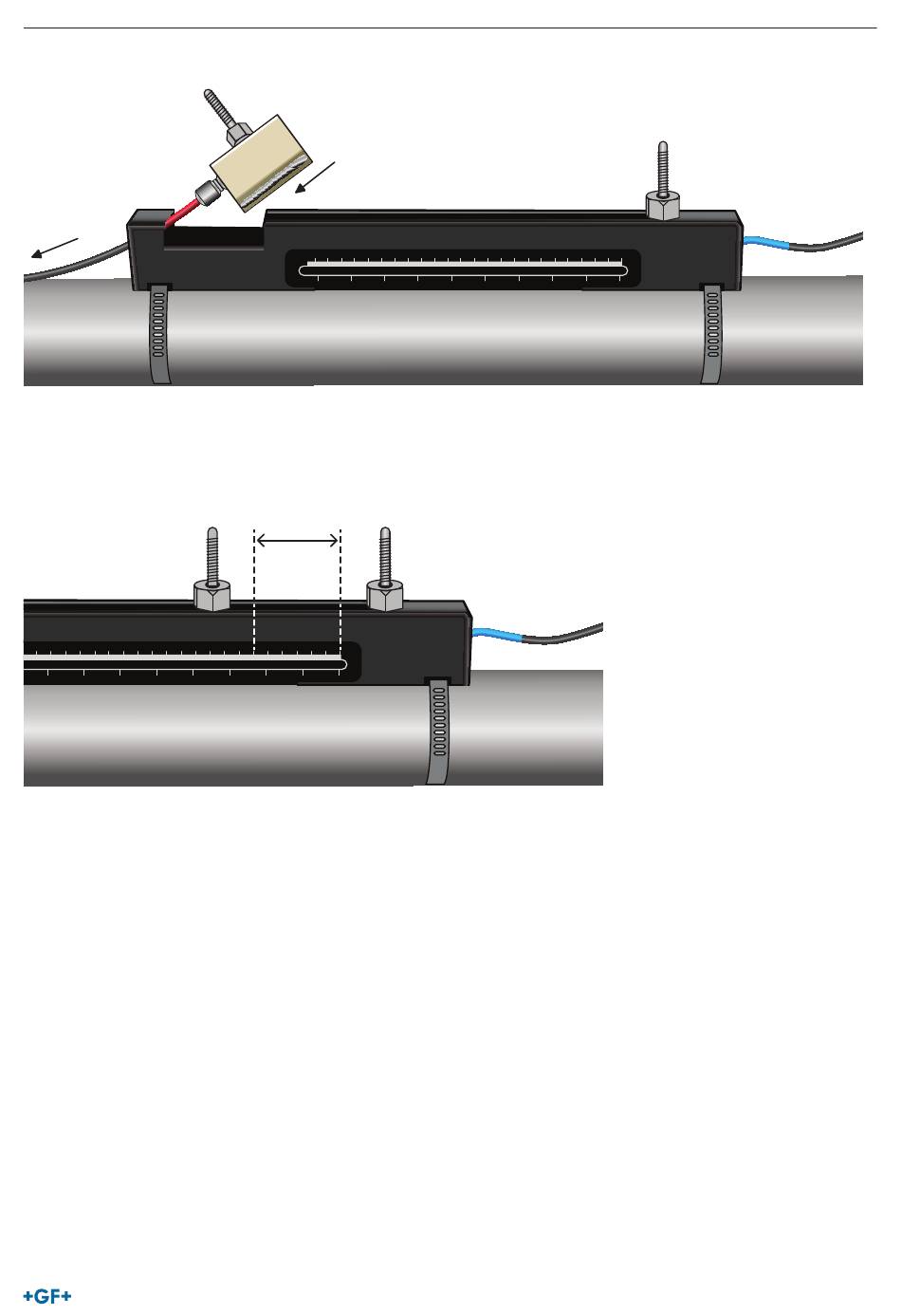

8. Carefully lower the transducer assembly through the rectangular opening until the slots in the side of the transducer clamp
align with the edges on the top of the guide rail.
9. Position the upstream transducer so that the inner face of the transducer is set to the required separation distance on the ruler,
as shown in figure below.
Calculated seperation distance
NOTICE
The separation distance for a particular application can be found using the 'Quickstart' menu see 'Using the quick start menu'
