Design and function
3.6

Terminal blocks

This section explains how to connect power and signal cables to the terminal blocks inside the
wall mount unit. The transducer cables attach to sockets on the left side of the terminal block. Other cables enter the instrument
through the four cable glands provided and are connected to terminal blocks which are located behind a safety cover.
3.6.1 To make power, PT100 and output connections:
1. Remove the terminal block cover by unfastening the two retaining screws.
2. Route the control and monitoring cables through the two smaller cable glands.
3. Cut the wires to length, strip back the insulation by approximately 10mm and connect them into the required terminals as de-
scribed above and identified in the figure below.
4. On completion, tighten the cable glands to ensure the cables are held securely.

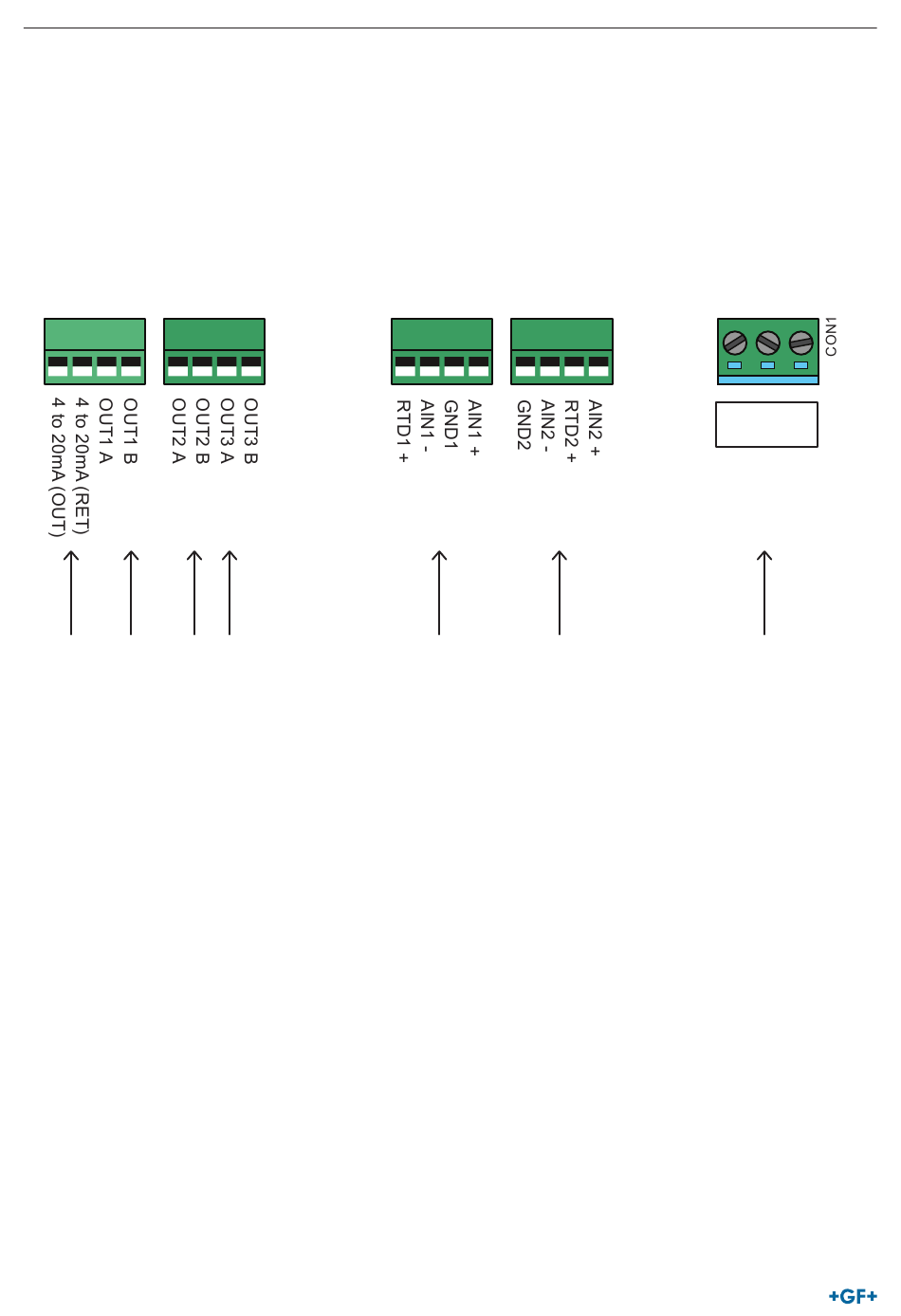

5. Refit the terminal block cover. 4-20mA Pulse(outputs 1, 2 & 3) PT100 Sensors Power
CONN21 CONN22
4 to 20 mA Pulse (outputs 1, 2, & 3)
16
CONN23 CONN24
PT100 Sensors
User Manual
N E L
100 to 240VAC
50 to 60Hz
7VA MAX
Power
