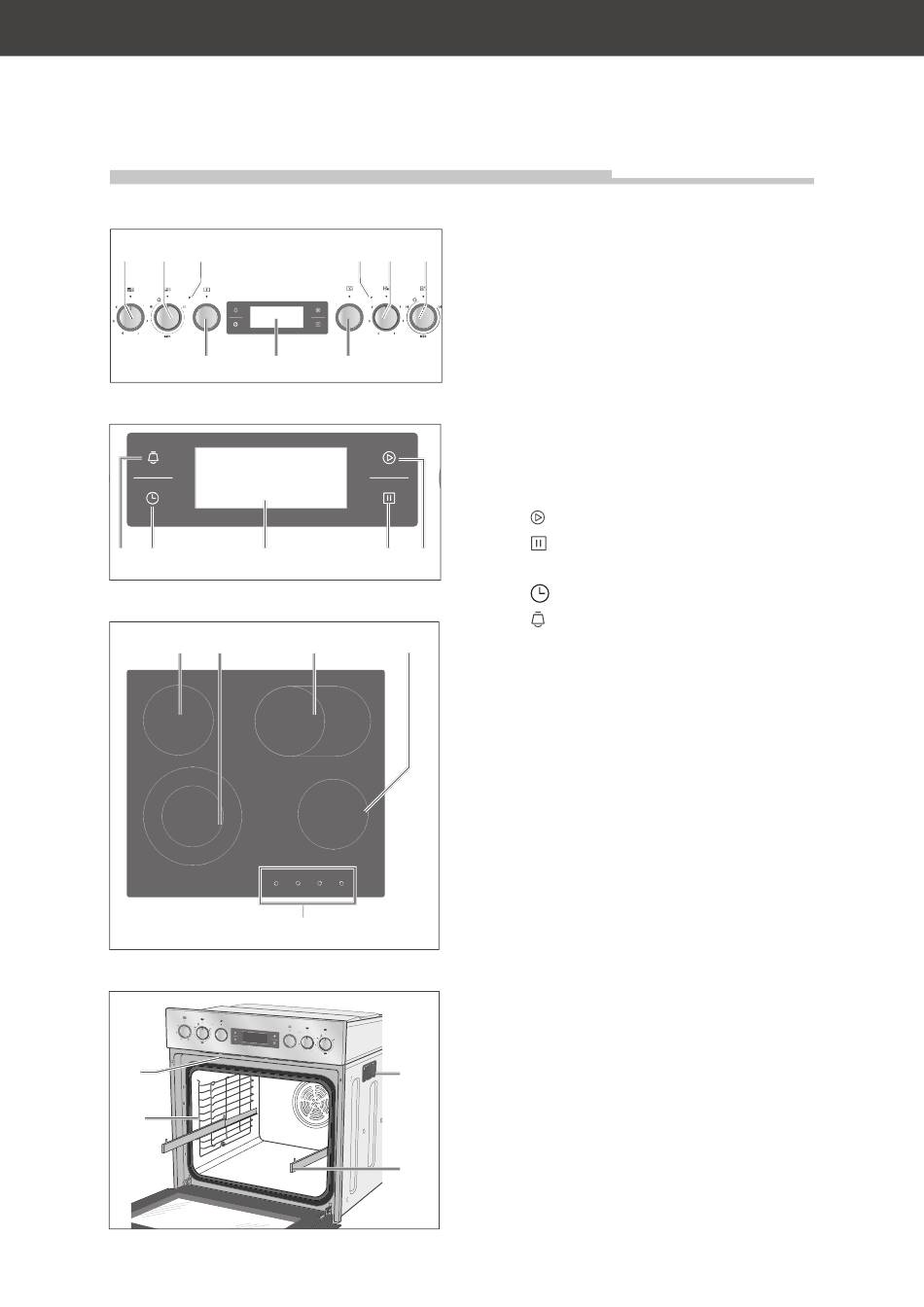

Operational controls and appliance parts

(9) (10) (11)
(21) (18)
(20) (19) (18)
(22) (23)
(30)
(29)
Operational controls and appliance parts
(12) (13) (14)
(15)
(17) (16)
(24) (25)
(26)
(27)
(28)
Control panel
(9) Temperature controller for back left
cooking zone
(10) Temperature controller for front left
cooking zone
(11) Indicator light for left cooking zones
(12) Indicator light for right cooking zones
(13) Temperature controller for front right
cooking zone
(14) Temperature controller for back right
cooking zone
(15) Temperature controller for the oven
(16) Start
(17) Pause/End
(18) Display/Clock
(19)
Setting the time
(20)
Timer
(21) Function dial for the oven
Hob
(22) Normal cooking zone at the back left,
16.0 cm
(23) Double cooking zone at the front left,
14.0/22.5 cm
(24) Roasting pan zone at the back right,
16.0/16.0 × 26.5 cm
(25) Normal cooking zone at the front
right,
16.0 cm
(26) Four residual heat indicators
Oven
(27) Carry handles on each side
(28) Telescopic oven rails
(29) Baking tray guides
(30) Extraction hood (ventilation)
