R&S RT-ZS60
1.3

Description of the Probe

The probe consists of the probe head for connection to the DUT, the probe box
for connection to the oscilloscope, and the probe cable.
1.3.1

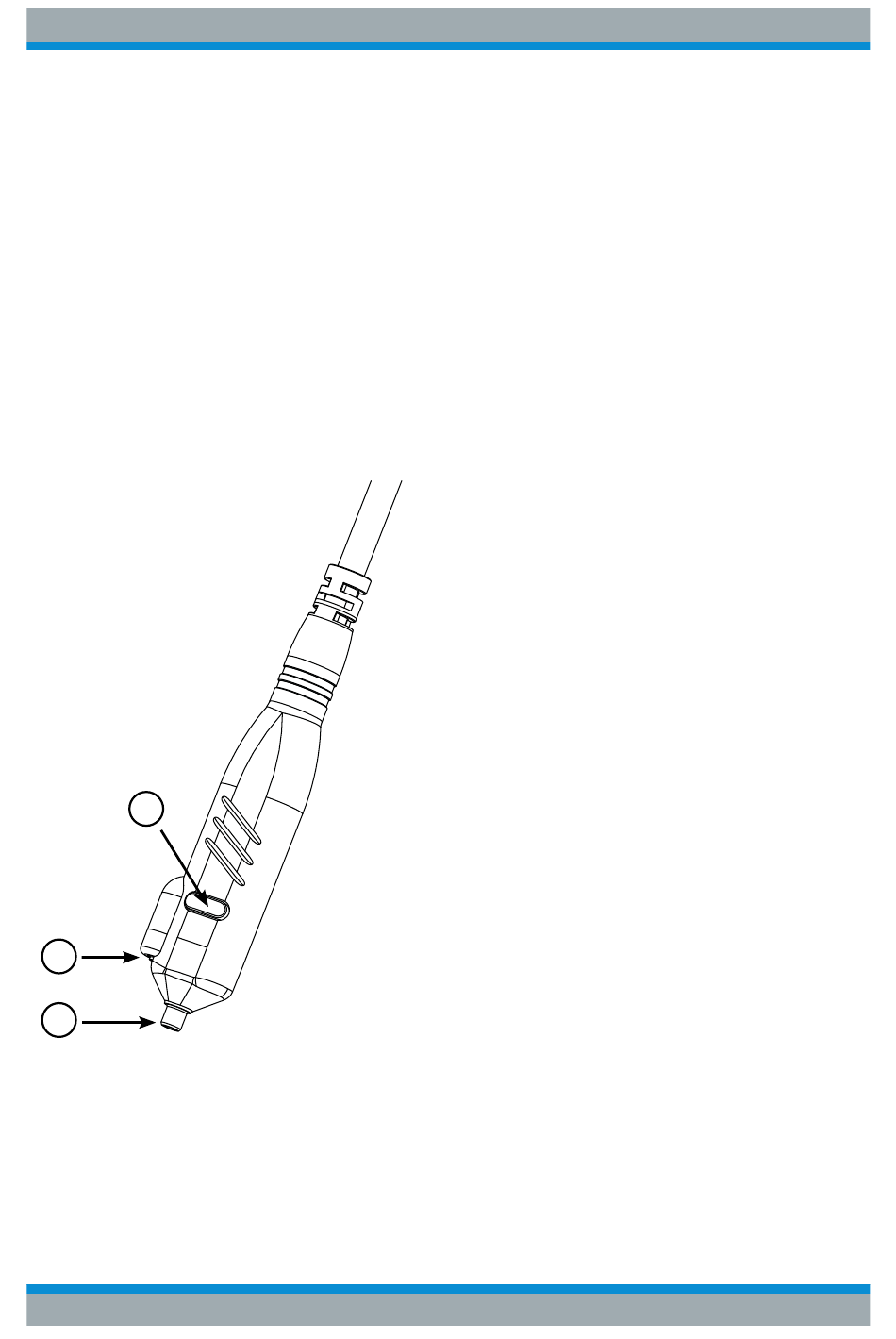

Probe Head

The small and lightweight probe head is designed for easy handling and high-per-
formance measurements. The probe head is used for connecting the probe and
the DUT. Different accessories for the signal and ground sockets allow the probe
head to be connected to a wide range of DUTs.
3
2
1
User Manual 1418.7342.02 ─ 02
Description of the Probe
(1) Signal socket
(2) Ground socket
(3) Micro button
The accessories supplied for the probe head
sockets are listed in
ries Supplied", on page 11.
The ground socket is compatible with 0.64 mm
(25 mil) square pins and 0.6 mm to 0.8 mm
(24 mil to 35 mil) round pins.
Product Description
chapter 1.4.1, "Accesso-
