Description of the Probe
The probe consists of the probe head for connection to the DUT, the probe box
for connection to the oscilloscope, and the probe cable.
1.3.1
Probe Head
The small and lightweight probe head is designed for easy handling and high-per-
formance measurements. The probe head is used for connecting the probe and
the DUT. Different accessories for the signal and ground sockets allow the probe
head to be connected to a wide range of DUTs.
Special accessories for signal sockets
The signal sockets of R&S RT-ZD40 have a special design to ensure opti-
mal performance. The signal sockets are not compatible to standard acces-
sories based on 0.64 mm (25 mil) square pins or 0.8 mm (35 mil) round
pins. Use only special accessories for R&S RT-ZD40 provided by Rohde &
Schwarz.
User Manual 1410.5363.02 ─ 03
Description of the Probe

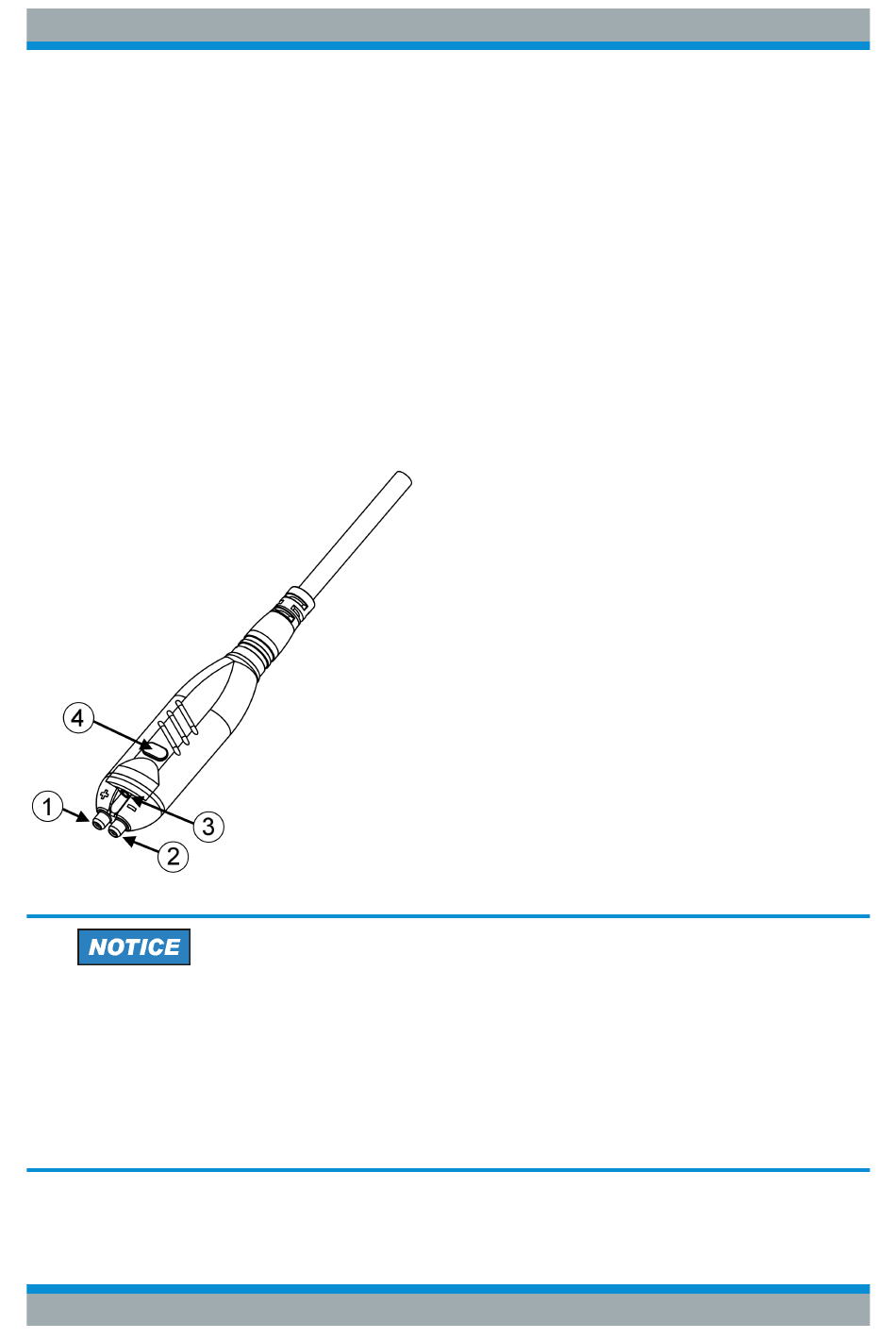

(1) Positive signal socket
(2) Negative signal socket
(3) Ground socket
(4) Micro button
The accessories supplied for the probe head
sockets are listed in
ries
Supplied",
on page 11.
The ground socket is compatible with 0.64 mm
(25 mil) square pins and 0.6 mm to 0.8 mm
(24 mil to 35 mil) round pins.
The signal sockets have a spacing of 4 mm
(160 mil).
Product Description
chapter 1.4.1, "Accesso-
8
